Summary of Contents for Anttron TM220HD

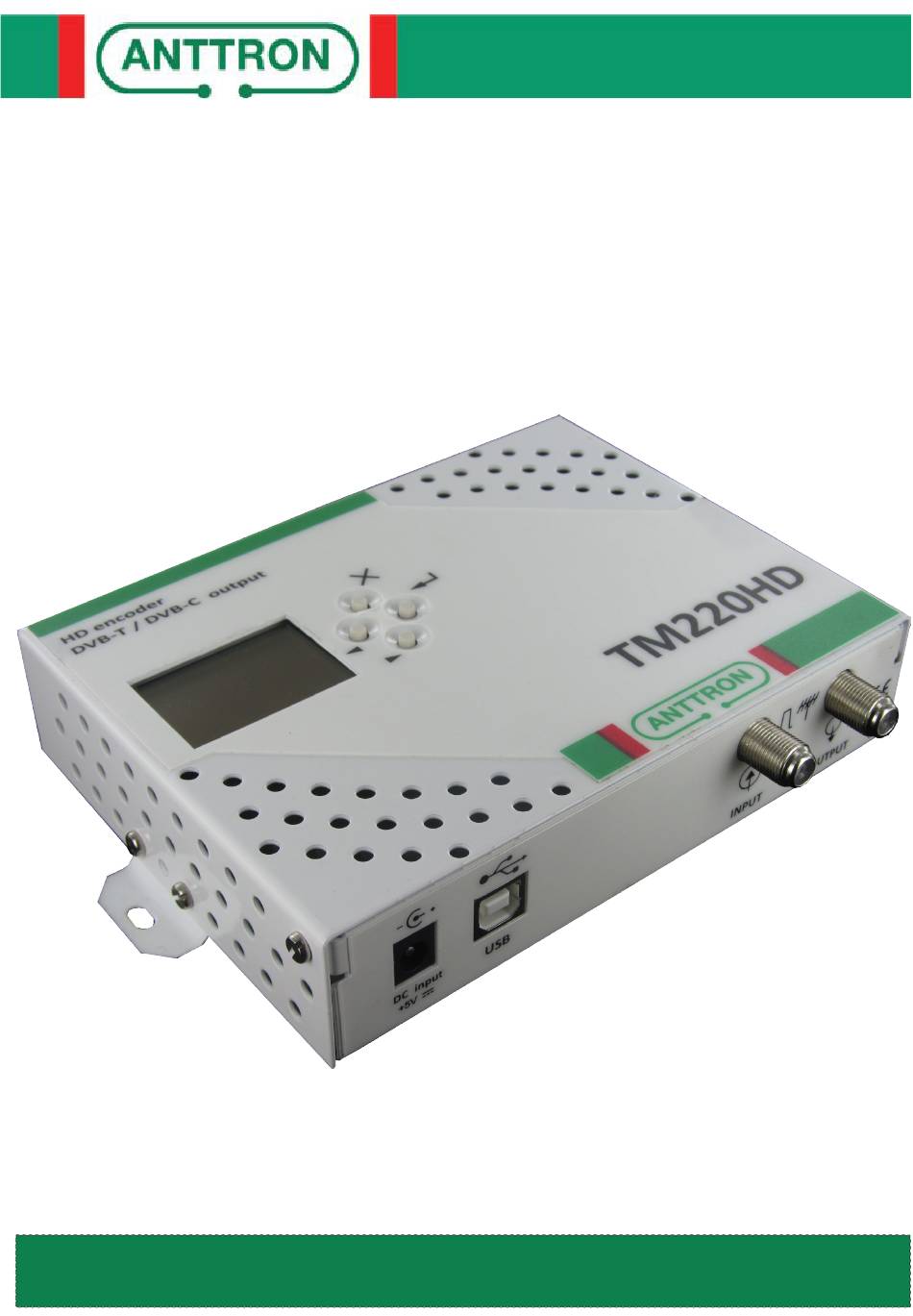

- Page 1 TM220HD HD encoder DVB-T/DVB-C out USER MANUAL V1.0...
-
Page 2: Table Of Contents
DVB-T or as DVB-C modulator. Stand-alone configuration is made easy through 4 tact switches and ergonomic menu’s. To make the configuration of the TM220HD ultra simple, a special software TMHDIface is available that you can download on our website anttron.com Contents 1 - Safety considerations ................3... -
Page 3: Safety Considerations
TM220HD USER MANUAL 1 - Safety considerations 1.1 CONNECTING TO THE MAINS SUPPLY This product has to be connected to the mains supply. If there is the slightest doubt concerning the type of connection available on the installation, please contact your supplier of electricity. Before car- rying out maintenance operation or modification of the installation, the modulator has to be discon- nected. -
Page 4: Description Of The Different Elements
TM220HD USER MANUAL 2 - Description of the different elements Power supply input (5V/4A) USB input (for programming the TM250HD by PC) RF input RF output DC input INPUT OUTPUT HDMI input COMPONENT VIDEO INPUT AUDIO INPUT HDMI HD encoder... -
Page 5: Installation And Menu Structure
3 - Installation and menu structure 3.1 - Installation Install the TM220HD against a wall using the wall fixation brackets to ensure cooling of the housing through natural convection. ( see drawing) Connect the audio and video source using a HDMI cable. Connect the RF input cable (if present) and the RF output cable. -
Page 6: Menu Structure
TM220HD USER MANUAL 3.3 - Menu structure The TM220HD has different menus allowing easy access to the differents parameters and to change them when necessary. Below you will find the structure of the different menus. CONFIGURATION MAIN MENU DVB-T MODULATOR... -
Page 7: Setting Up The Tm220Hd
DVB-C MODULATOR 4.2 - The DVB settings menu If the TM220HD is configured as DVBT modulator or DVBC modulator, you can set in this menu the output frequency, bandwidth, output level and specific parameters for DVB-T or DVB-C. DVB SETTINGS... -
Page 8: Setting Dvb-T Parameters
TM220HD USER MANUAL 4.2.1 - Setting DVB-T parameters FREQUENCY BANDWIDTH ATTENUATION DVB-T When you select DVB-T and press the ENTER button, the following submenu appears. It allows you to set the DVB-T parameters. MODE Select the mode CONSTELLATION F.E.C. GUARD INTERVAL... -
Page 9: The Av Settings Menu
TM220HD USER MANUAL 4.3 - The AV settings menu This menu allows you to adjust specific video and audio parameters. Set the video bit rate VIDEO RATE VIDEO RATE 9000_ AUDIO RATE 8 Xfbc0123456789 HDMI-PCM VOLUME Select the audio bitrate... - Page 10 TM220HD USER MANUAL NIT RELEASE NIT RELEASE NET ID. Set the NIT version ORIG. NET. ID. 8 Xfbc0123456789 NETWORK NAME NIT RELEASE NET ID. Set the Network ID. NET ID. ORIG. NET. ID. 8 Xfbc0123456789 NETWORK NAME NIT RELEASE ORIG. NET ID.
-
Page 11: The Language Menu
First, please install the software TMHDIFace on your PC. You can download this software from our internet site anttron.com After installation of this software, connect the TM220HD using a USB cable (not included) to your per- sonal computer. Then launch the program TMHDIface. -
Page 12: Technical Specifications
TM220HD USER MANUAL 6 - Technical specifications Video input Input HDMI Resolution modes 480p -576p -720p - 1080i Compression H.264 – bitrate 5-15 Mb/s Audio input Input HDMI Sample Rate HDMI (32kHz / 44.1 kHz / 48 kHz) Compression AAC-LC – bitrate 128-384 Kb/s...
