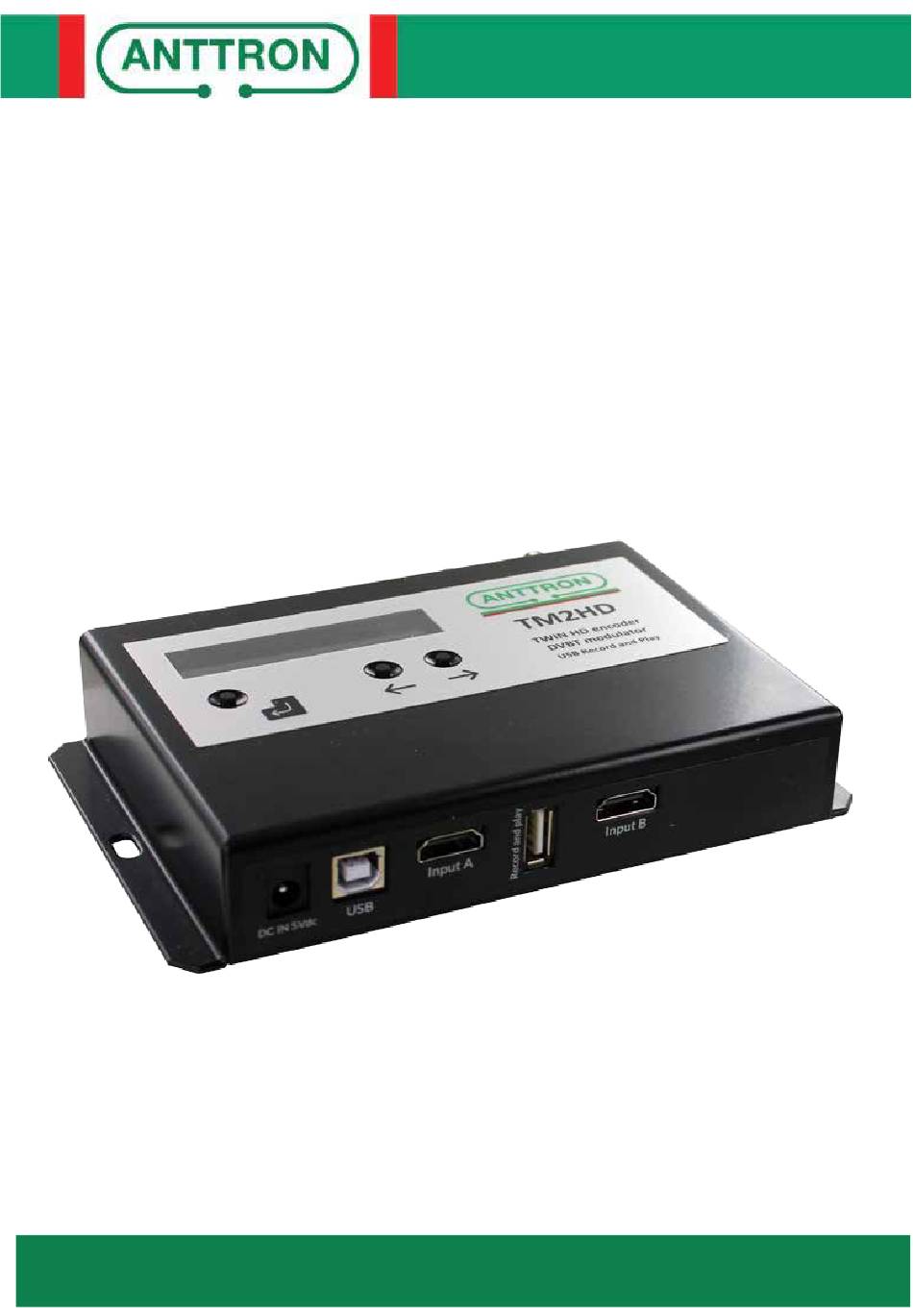

  • Page 1 TM2HD Dual HD encoder DVBT modulator USB record and play USER MANUAL V1.0...

  • Page 2: Table Of Contents

    The record function allows you to record your source connected to input A in a .ts file on a USB stick or drive. Using TMHDIface to operate the TM2HD a wide scala of digital signage functions becomes available. Using a battery powered time and date function, different files can be played according to a schedual you can define by hour, day and week etc.

  • Page 3: Safety Considerations

    TM2HD USER MANUAL 1 - Safety considerations 1.1 CONNECTING TO THE MAINS SUPPLY This product has to be connected to the mains supply. If there is the slightest doubt concerning the type of connection available on the installation, please contact your supplier of electricity. Before car- rying out maintenance operation or modification of the installation, the modulator has to be discon- nected.

  • Page 4: Description Of The Different Elements

    TM2HD USER MANUAL 2 - Description of the different elements Power supply input (5V/2A) HDMI input A USB input (PC programming) USB input record and play RF input HDMI input B RF output Display ENTER button LEFT button RIGHT button ANTTRON ©2018...

  • Page 5: Informations On The Lcd Screen

    3 - Informations on the LCD screen In normal operation the LCD screen of the TM2HD shows some information on the status of the modu- lator. The status of input A and input B is alternated with the actual date and time set in the modulator.

  • Page 6: Advanced Menu

    TM2HD USER MANUAL 4.2 - Advanced menu To enter the advanced menu please push following sequence of buttons TM2HD 2.2 TM2HD 2.2 TM2HD 2.2 Set the output frequency DVB SETTINGS FREQUENCY 474000 kHz TM2HD 2.2 TM2HD 2.2 Select the bandwidth.
  • Page 7 TM2HD USER MANUAL TM2HD 2.2 6789.[A]BCDEF Set the network name NETWORK NAME Anttron TM2HD 2.2 TM2HD 2.2 Leave this menu EXIT [YES] TM2HD 2.2 INPUT A TM2HD 2.2 TM2HD 2.2 Set the program ID for input A or input B PROGRAM ID.
  • Page 8 003. (all with .ts extension). Then, if you select a file from this list, the file will start to play. At the end the TM2HD will look for the same file name with a higher number (for instance if you start with file002, it will look at the end of this file for file003 etc.

  • Page 9: Programming Using A Pc

    First, please install the software TMHDIFace on your PC. You can download this software from our internet site anttron.com After installation of this software, connect the TM2HD using a USB cable (not included) to your com- puter. Then launch the program TMHDIface.

  • Page 10: Making Play And Recording Lists Using Tmhdiface

    6.2 - Adjusting time and date Before starting to use play and recordlist, please check that the time and date in the TM2HD is set ap- propriate. In order to adjust time and date, please click on the time in TMHDIFace.

  • Page 11: Making A Recordlist

    6.5 - Creating your .ts files In order for you to create your .ts files, a .ts convertor is available on the Anttron website. This allows you to easily convert your files from .avi or .mp4 into .ts...
  • Page 12 TM2HD USER MANUAL We reserve the right to make changes to our products without prior notice. ANTTRON ©2018 PAGE 12...
