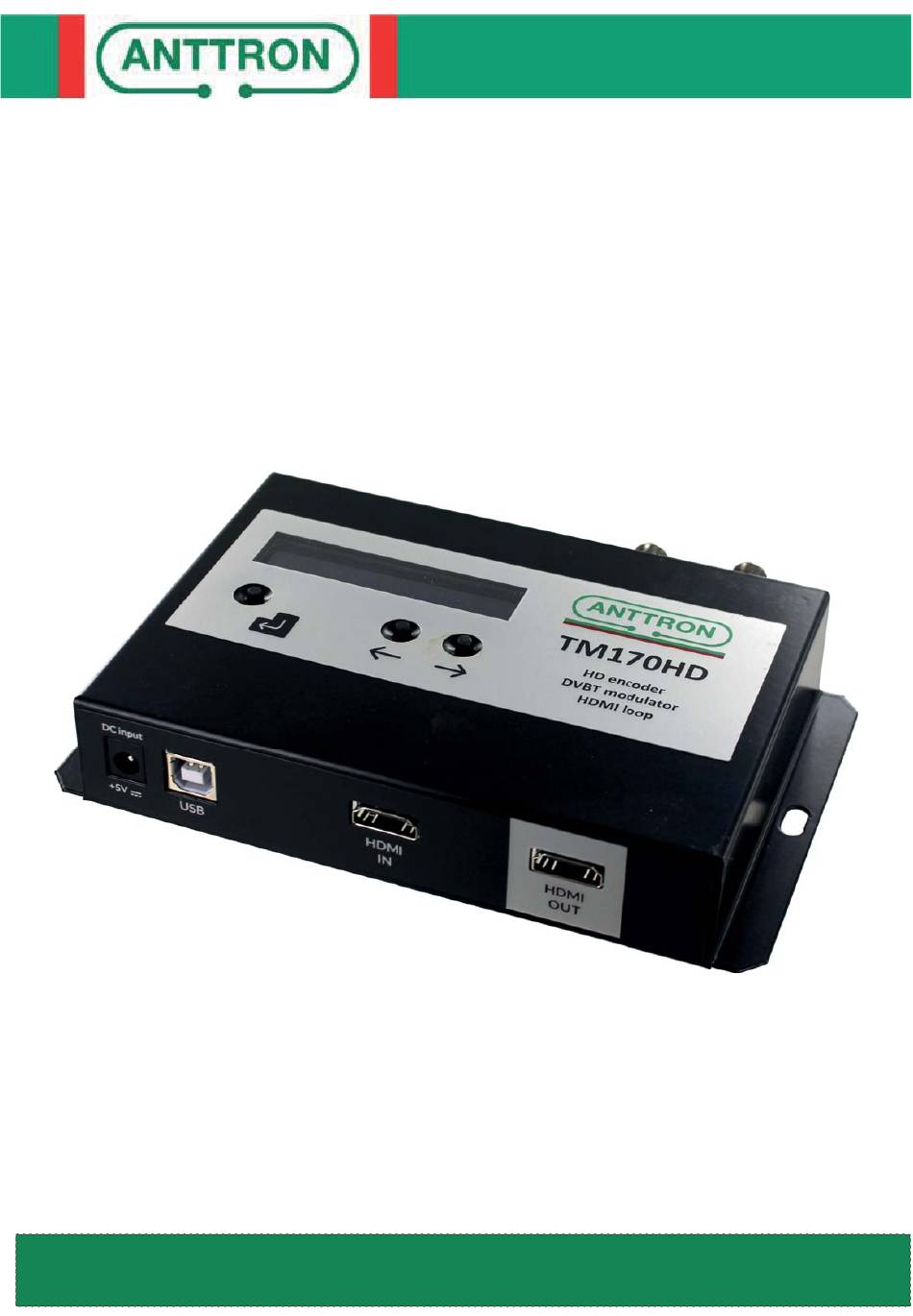

- Page 1 TM170HD HD encoder DVBT modulator HDMI loop USER MANUAL V1.0...
-
Page 2: Table Of Contents
DVB-T signal. Stand-alone confi guration is made easy through 3 tact switches and ergonomic menu’s. To make the confi guration of the TM170HD ultra simple, a special software TMHDIface is available that you can download on our website anttron.com Contents 1 - Safety considerations ................3... -
Page 3: Safety Considerations
TM170HD USER MANUAL 1 - Safety considerations 1.1 CONNECTING TO THE MAINS SUPPLY This product has to be connected to the mains supply. If there is the slightest doubt concerning the type of connection available on the installation, please contact your supplier of electricity. Before car- rying out maintenance operation or modifi... -
Page 4: Description Of The Different Elements
TM170HD USER MANUAL 2 - Description of the different elements Power supply input (5V/2A) RF output USB input (PC programming) HDMI input RF input HDMI output Display ENTER button LEFT button RIGHT button ANTTRON ©2018 PAGE 4... -
Page 5: Software Settings
TM170HD USER MANUAL 3 - Software settings : The TM170HD has a quick menu to allow for quick basic settings. For advanced settings an advanced menu is available. 3.1 - Quick menu : To enter the quick menu please push following sequence of buttons... -
Page 6: Advanced Menu
TM170HD USER MANUAL 3.2 - Advanced menu To enter the advanced menu please push following sequence of buttons TM170HD 19.0 TM170HD 19.0 TM170HD 19.0 Set the output frequency DVB SETTINGS FREQUENCY 474000 KHz TM170HD 19.0 TM170HD 19.0 Select the bandwidth. - Page 7 TM170HD USER MANUAL TM170HD 19.0 TM170HD 19.0 TM170HD 19.0 Set the NIT version NIT RELEASE TS SETTINGS TM170HD 19.0 TM170HD 19.0 Set the Network ID NET ID. 10000 TM170HD 19.0 TM170HD 19.0 Set the original network ID for your country ORIG.
-
Page 8: Programming Using A Pc
First, please install the software TMHDIFace on your PC. You can download this software from our internet site anttron.com After installation of this software, connect the TM170HD using a USB cable (not included) to your per- sonal computer. Then launch the program TMHDIface.
