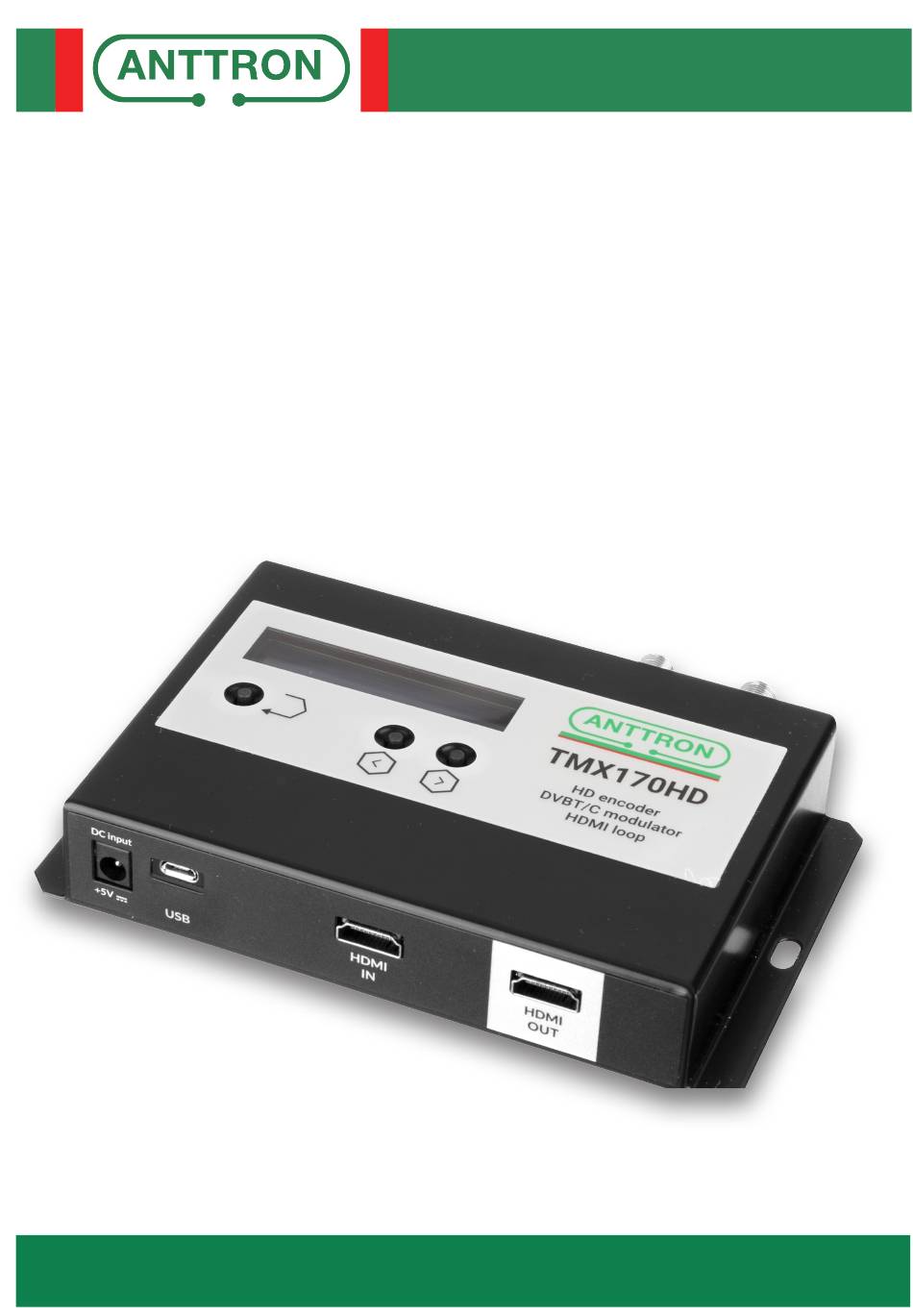

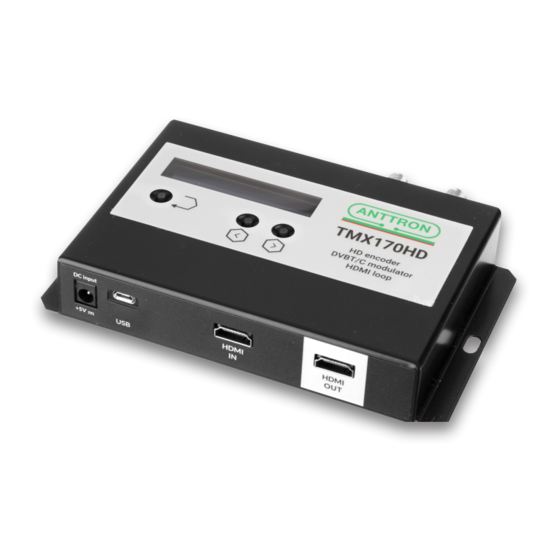

- Page 1 TMX170HD HD Encoder DVB-T/C out HDMI loop USER MANUAL V1.0...
- Page 2 European Directives on safety, and electromagnetic compatibility. The relative certificate of conformity can be requested from: Anttron nv, Industrielaan 37, B-8820 Torhout The crossed-out bin symbol shown on the equipment indicates that the product at the end of its useful life must be collected separately from other waste.
- Page 3 / or software. The manufacturer assumes no obligation to notify the owners of this document regarding subsequent ch FEATURES AND INFORMATION CONTAINED IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ANTTRON 2021 PAGE 3 ©...
- Page 4 HDMI output Power supply input (5V/2A) RF output USB input (PC programming) RF input (loop) HDMI input loop A1 Display T1 ENTER T2 LEFT/BACK T3 RIGHT/FORWARD 15 cm 15 cm 15 cm 15 cm 15 cm ANTTRON 2021 PAGE 4 ©...
- Page 5 TMX 170 HD USER MANUAL 3 - Software settings : The TMX170HD has a quick menu to allow for quick basic settings. For advanced settings an advanced menu is available. 3.1 - Quick menu : To enter the quick menu please push following sequence of buttons When entered succesfully, the quick menu comes accessible, use the buttons to move between the different menu options.
- Page 6 TMX 170 HD USER MANUAL 3.2 - Advanced menu To enter the advance menu please press the following sequence of buttons TMX170HD 42.0 TMX170HD 42.0 TMX170HD 42.0 Set the output frequency DVB SETTINGS FREQUENCY 474000 KHz TMX170HD 42.0 TMX170HD 42.0...
- Page 7 TMX 170 HD USER MANUAL TMX170HD 42.0 TMX170HD 42.0 TMX170HD 42.0 Set the NIT version TS SETTINGS NIT RELEASE TMX170HD 42.0 TMX170HD 42.0 Set the network ID NET ID. 10000 TMX170HD 42.0 TMX170HD 42.0 Set the Original Network ID ORIG. NET ID.
- Page 8 First, please install the software TMHDIFace on your PC. You can download this software from our internet site anttron.com After installation of this software, connect the TMX170HD using a USB cable (not included) to your personal computer. Then launch the program TMHDIface.
