Verdant VX Series Installation Manual

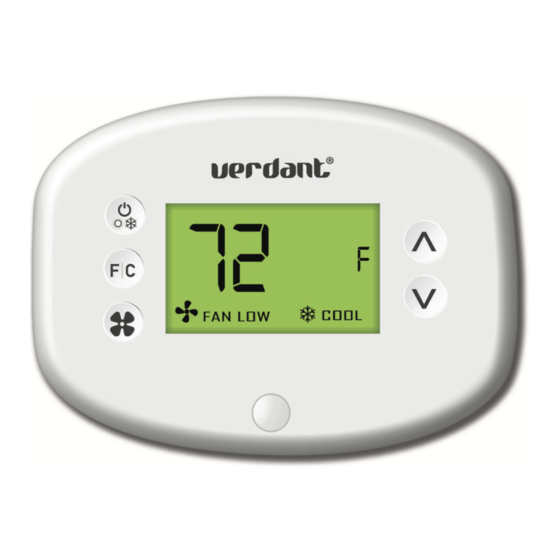

Wireless thermostat with an occupancy sensor
Hide thumbs
Also See for VX Series:
- Instruction manual (23 pages) ,
- Installation manual (52 pages) ,
- Installation manuals (27 pages)
Related Manuals for Verdant VX Series
Summary of Contents for Verdant VX Series

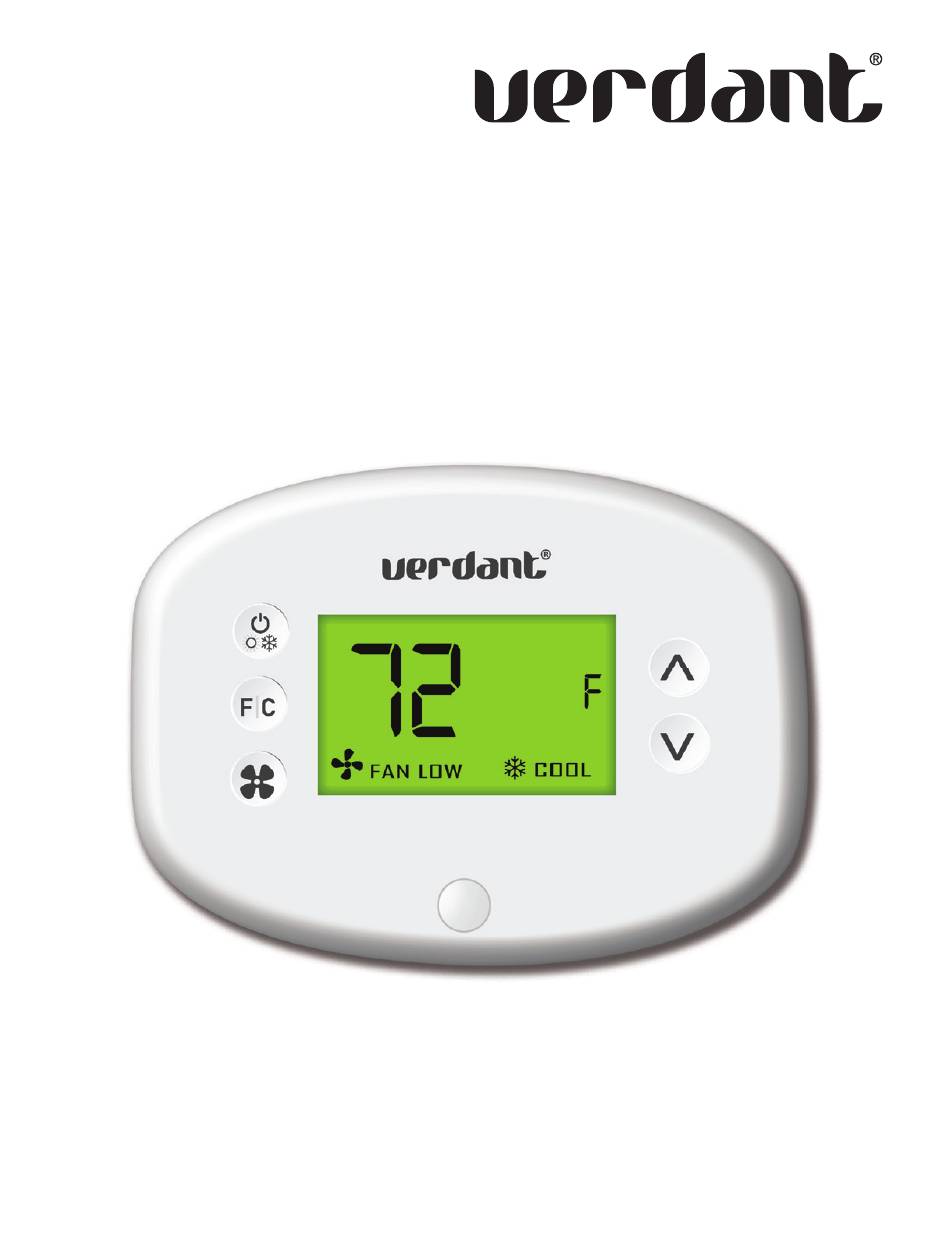

- Page 1 VXDB-TW-KT-W VX Series Wireless Thermostat with an Occupancy Sensor INSTALLATION MANUAL JUNE 2020...
-
Page 2: Table Of Contents
Table of Contents Introduction ......................5 Network Installation ....................7 Connecting the Antenna Module ................7 Connecting the Ethernet Cable ................8 Powering the Server ....................9 Configuring the Online Connection Kit ..............10 HVAC Controller Installation ...................11 Thermostat Installation ..................13 Thermostat Configuration ..................14 BLANK Accessing the Configuration Screen ............... - Page 3 Table of Contents Introduction APPENDIX 1 - Energy Saving Presets ...............31 Verdant VX Series Energy Management Thermostats deliver unprecedented energy savings without compromising the comfort of occupants. APPENDIX 2 - Glossary ....................32 An Integrated occupancy sensor uses a combination of motion and thermal sensing Warranty Information .....................33...
-
Page 4: Network Installation
1823. Affix the Wireless Receiver to the wall with double sided adhesive tape; ➤ Orient the antenna to be parallel to the closest room in which a Verdant ➤ thermostat will be installed. THE WIRELESS RECEIVER AND THE ANTENNA MUST NOT BE INSTALLED NEAR METAL STRUCTURES OR SURFACES. -
Page 5: Connecting The Ethernet Cable
Online Connection Kit Installation Online Connection Kit Installation Connecting the Ethernet Cable Powering on the Server Connect the Server to the LAN port with the supplied RJ-45 cable. Plug the Server into an electrical outlet with the supplied power cord. ➤... -
Page 6: Configuring The Online Connection Kit
Online Connection Kit Installation HVAC Controller Installation Configuring the Online Connection Kit Installing the HVAC Controller in an HVAC Unit Ensure the Online Connection Kit is receiving a Private or Static IP address via Power Off the HVAC unit; ➤ ➤... -
Page 7: Thermostat Installation
INSTALLATION. IF YOU DO NOT HAVE THE CORRECT PARTS, CEASE INSTALLATION SURFACES, CONSIDER INSTALLING A WALL PLATE. IMMEDIATELY AND CALL VERDANT TECHNICAL SUPPORT AT 1 877 318 1823. Use the two (2) supplied screws to securely mount the thermostat to the wall;... -
Page 8: Thermostat Configuration
Thermostat Confi guration Thermostat Confi guration Confi guring the Thermostat Accessing the Confi guration Screen With the thermostat and HVAC unit powered, follow the confi guration instructions Ensure the thermostat is powered and faceplate removed; ➤ to correctly confi gure the thermostat. Press the confi g button;... -
Page 9: Setting The Mesh Id
Thermostat Confi guration Thermostat Confi guration Pairing the Thermostat and HVAC Controller Setting the MESH ID Press the FAN button to advance to the next digit; ➤ The thermostat and HVAC Controller must be paired during installation. The Press the UP and DOWN buttons to increase or decrease the value; ➤... -
Page 10: Entering The Room Number
Thermostat Confi guration Thermostat Confi guration Entering the Room Number Confi guring the Equipment Settings Enter the equipment code by changing the digits on the screen. Refer to the table Enter the room number by changing the characters on the screen. below. -
Page 11: Configuring The Energy Saving Settings
Thermostat Confi guration Thermostat Confi guration Confi guring the Energy Saving Settings Setting the thermostat clock HOURS MINUTES Press the UP and DOWN buttons to increase or decrease the energy savings Set the thermostat clock to current time in 24h (Military Time) format. ➤... -
Page 12: Testing The Thermostat
Thermostat Configuration Thermostat Maintenance Testing the Thermostat Replacing Thermostat Batteries Following the thermostat configuration, test if the thermostat is controlling the HVAC The low battery indicator will be displayed on the thermostat screen when it is necessary unit. to replace batteries in the thermostat. Ensure the thermostat is powered and the faceplate is on. -
Page 13: Accessing The Sensor Setup Menu
Confi guring & Managing Accessories Confi guring & Managing Accessories Accessing the Sensor Setup Menu Activating a Sensor With the thermostat and HVAC unit powered, follow the sensor confi guration Remove the cover of the sensor(s) to be paired in the room; ➤... -
Page 14: Discovering A Sensor
Confi guring & Managing Accessories Confi guring & Managing Accessories Discovering an Active Sensor Confi gure the Functionality of a Sensor The thermostat will display the fi rst sensor discovered in the pairing process. Ensure The thermostat allows the user to change the default functionality of the sensor. Use that the unique device number displayed on the screen matches the unique ID found the table below to confi gure the desired functionality. -
Page 15: Completing The Sensor Setup
Confi guring & Managing Accessories Troubleshooting Completing the Sensor Setup Error Codes ERR 1 Thermostat Temperature Sensor Hardware Defect ERR 2 Thermostat Radio Hardware Defect ERR 3 Thermostat Radio Software Defect ERR 4 No link with the HVAC Controller ERR 5 Thermostat Memory Defect The thermostat will countdown from thirty (30) seconds. -
Page 16: Appendix 1 - Energy Saving Presets
Recovery Time thermostat must be re-configured. Please refer to pages 14-22 of this manual. Recovery Temperature Heat Setback Delay - Heat Contact Verdant technical support if the issues are not resolved. Minimum Setback Temperature Setback Delay - Cool Maximum Setback Temperature... -
Page 17: Appendix 2 - Glossary
“Automatic Fan Control Mode” - fan runs only when there detected in order to enter the “Guest Occupancy” mode; For the most recent warranty information, please visit www.verdant.co/verdant-warranty. is a demand for heating or cooling; “Night Occupancy Threshold” - the minimum period “Manual Fan Control Mode”... - Page 18 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.
-
Page 19: Technical Specifications
6,581,846; 6,578,770; 7,838,803; 7,841,542; D556,061; D518,744; RE40,437; CANADIAN PATENTS: 2,633,113; 2,633,200; OTHER PATENTS PENDING. Verdant Environmental Technologies, Inc. reserves the right to make changes, without notice, in design or components. © Verdant Environmental Technologies, Inc. 2020. Product appearance may vary.
