Compatibility:
• 564 Fireplaces when installing FPX Arched Faces
This upgrade kit (98500683) must be installed prior to installing the facing material or face.
Installation
1

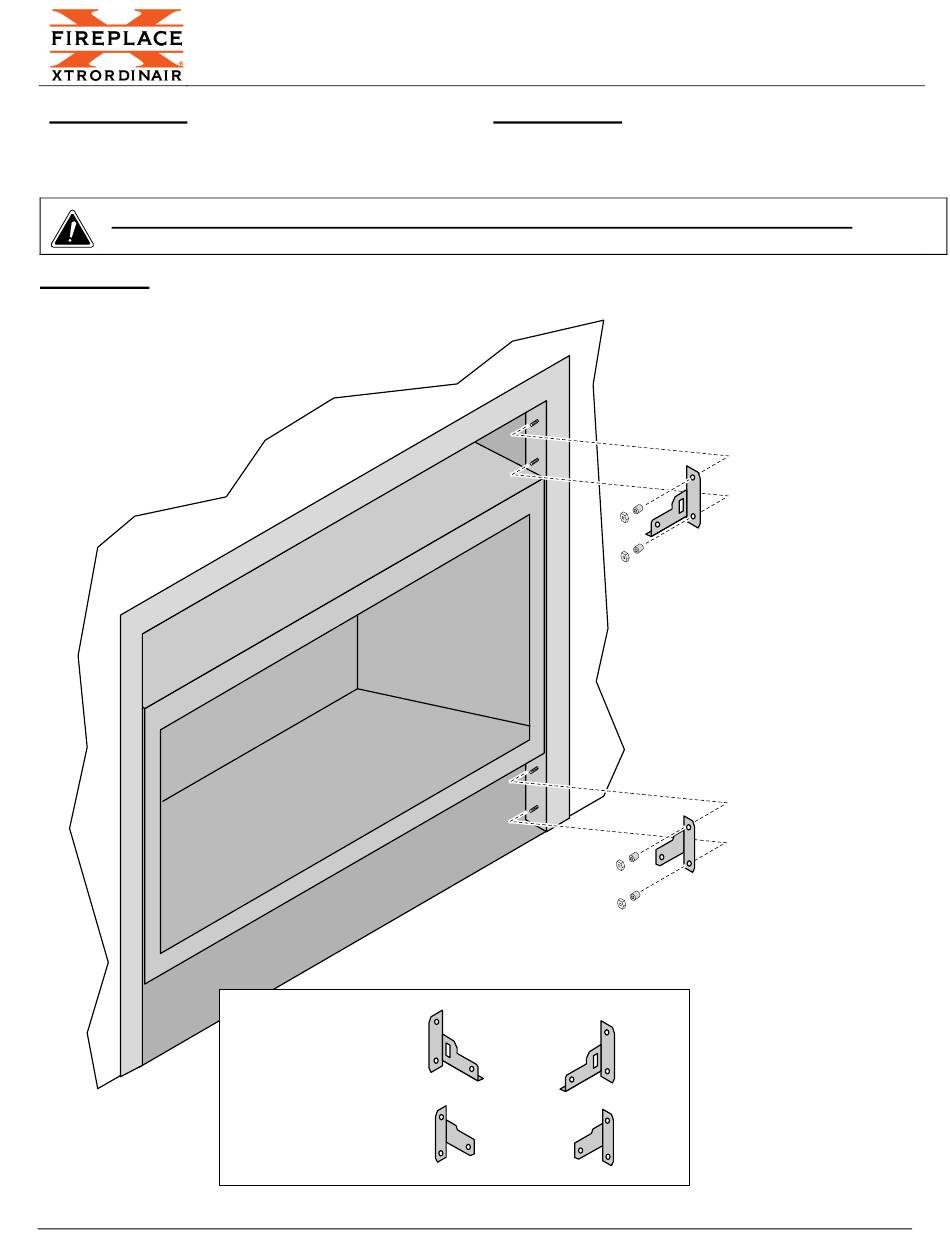

Attach The Brackets to the fireplace following the directions below.
Page 1 of 2
564 FPX Arched Face Upgrade Kit
Upper
Left
Bracket
Identification
Lower
Left
17601469
sku# - 98500683
Packing List:
• Tiling guide (2 pieces - left and right)
• (4) Mounting Brackets (attaches to the fireplace)
• (4) Screws
Remove the nuts and bushings above and
below the firebox. Place the brackets into
position then replace the bushings and nuts
to secure the brackets in place.
Repeat these steps for the opposite side.
Upper
Right
Lower
Right
10/16/20
Upper
Bracket
Lower
Bracket
© Travis Industries, Inc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FireplaceXtrordinair 564 FPX
Summary of Contents for FireplaceXtrordinair 564 FPX
- Page 1 564 FPX Arched Face Upgrade Kit sku# - 98500683 Compatibility: Packing List: • 564 Fireplaces when installing FPX Arched Faces • Tiling guide (2 pieces - left and right) • (4) Mounting Brackets (attaches to the fireplace) • (4) Screws This upgrade kit (98500683) must be installed prior to installing the facing material or face.
- Page 2 564 FPX Arched Face Upgrade Kit sku# - 98500683 Attach the tiling guide following the directions below. Loosen the nuts on the upper brackets three turns (both sides). Slide both tiling guides into place. NOTE: the tiling guide has slots that slide between the brackets and the fireplace.
