Compatibility:
• 564 SS & DF Fireplace
• 564 HO Fireplace
• 564 564 EF-I Fireplace
The center deflectors must be in place when using this face to prevent
the facing above the fireplace from becoming too hot. If this face is
replacing a Lopi Grill (96200801), make sure to replace the center
deflectors.
Hand-Rubbed Patina Finishes
The optional patina finish is hand applied by a skilled artisan to permanently alter the metal colors and texture
of the face. Each face is individually hand-polished and fired in an oven which imparts unique color subtleties
with no two finishes alike. The patina finish on your face is a "living" color and will age and antique over time.
Enjoy the timeless, rich luster of your beautiful new face.

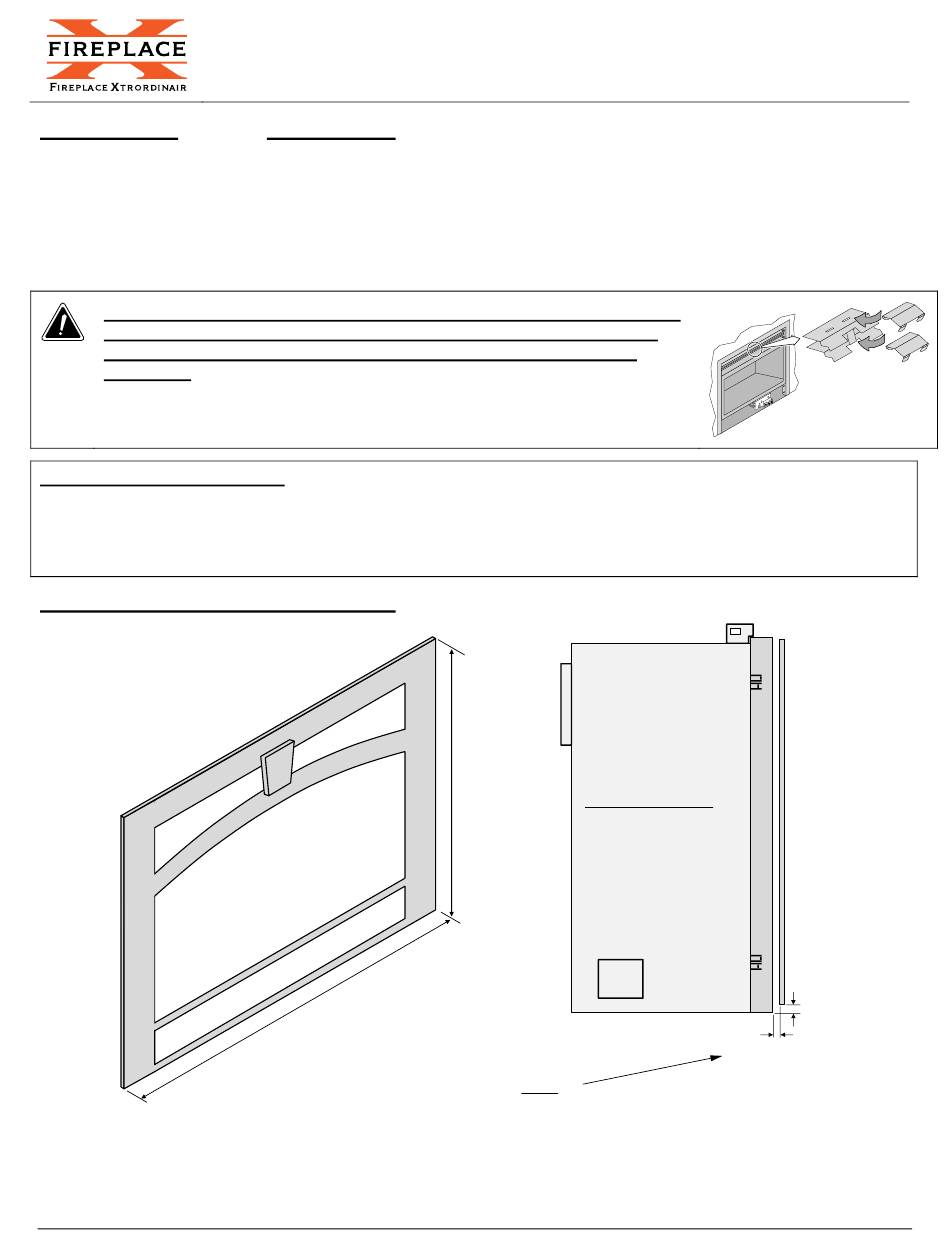

Installation Details – 564 SS, DF, HO
Page 1 of 4
Black 95400403, 95400186, 95400195
Packing List:
• Face
• (4) 8-32 Nuts
• (2) 564 Top Brackets (w screws)
• (2) 564 Upper Mounting Brackets
• (2) 564 Lower Mounting Brackets
• (2) 10-24 1-1/2" Screws
• Patina Touch-Up Kit (Patina Faces Only)
36"
17601480

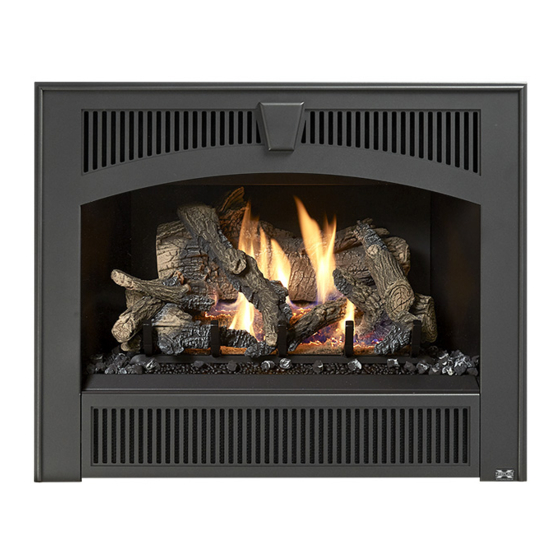

564 Legacy Face
Carbon Patina 95400404, 95400194, 95400196
29"
SIDE OF FIREPLACE
NOTE:
This face has an adjustable bracket that allows for
different facing depths to be tucked under the face.
4/12/16
1"
0" TO 1"
© Travis Industries, Inc.
