Compatibility:
• 864TRV Fireplace

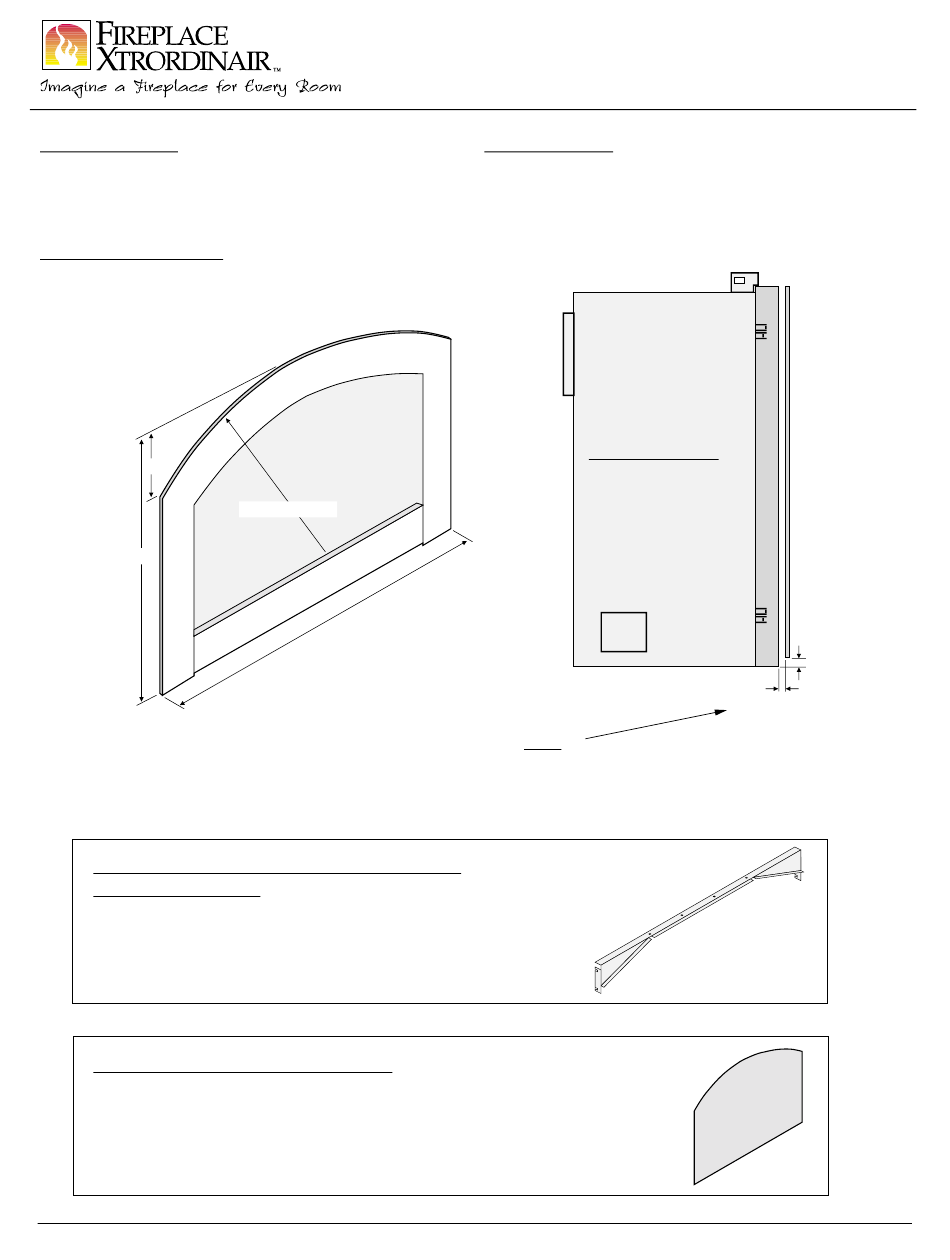

Installation Details
5"
36"
NOTE FOR THIN FACING (TILE, GRANITE, OR OTHER NON-
COMBUSTIBLE UNDER 1")
An arched tiling guide is provided to aid in face installation. It attaches to the
fireplace and is used as a guide for tucking tile (or other non-combustible) under
the face. It also prevents the facing from being installed in a location where it
would be viewed through the face.
NOTE FOR THICK FACING (BRICK, ROCK, ETC.):
This face requires a 1/4" gap above and to the sides of the face for face installation. We
strongly recommend using the 864 Arched Face Template (SKU xxxxxxxx) when installing
thick facing. The template acts as a support for the facing and allows the mason to construct
facing directly up to the template.
Page 1 of 6
Classic Black 99300497
Radius = 45-3/4"
41-1/2"
864TRV Arched Face
Artisan 99300498
Packing List:
• Face
• Face Brackets
• Arched Tiling Guide
• Glass Frame Cover
SIDE OF FIREPLACE
NOTE:
This face has an adjustable bracket that allows for
different facing depths to be tucked under the face.
6/8/05
French Country 99300499
1"
9/16" TO 1"
© Travis Industries, Inc.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for FireplaceXtrordinair 99300497
Summary of Contents for FireplaceXtrordinair 99300497
- Page 1 864TRV Arched Face Classic Black 99300497 Artisan 99300498 French Country 99300499 Compatibility: Packing List: • 864TRV Fireplace • Face • Face Brackets • Arched Tiling Guide • Glass Frame Cover Installation Details SIDE OF FIREPLACE 5" Radius = 45-3/4” 36"...
-
Page 2: Installation
864TRV Arched Face Classic Black 99300497 Artisan 99300498 French Country 99300499 Installation Install the face mounting brackets onto the fireplace following the directions below. Remove the nuts and bushings above and below the firebox. Discard the bushings. Upper Bracket Place the upper and lower brackets in place and secure using the nuts removed earlier. - Page 3 864TRV Arched Face Classic Black 99300497 Artisan 99300498 French Country 99300499 Install the arched tiling guide following the directions below. Loosen the nuts on the upper brackets three turns (both sides). Slide the tiling guide into place. NOTE: the tiling guide has slots that slide between the brackets and the fireplace.
- Page 4 864TRV Arched Face Classic Black 99300497 Artisan 99300498 French Country 99300499 At this point the facing (and hearth) should be installed. The facing above the fireplace must be tiled down to the tiling guide (see the illustration below). The area below the face (1") should be faced over (for raised fireplaces) or a 1"...
- Page 5 864TRV Arched Face Classic Black 99300497 Artisan 99300498 French Country 99300499 Install the glass frame cover following the directions below. Place the cover over the top of the door frame. Push these pins inwards to lock the cover in place.
- Page 6 864TRV Arched Face Classic Black 99300497 Artisan 99300498 French Country 99300499 Install the face following the directions below. Position the face so the barbed hooks insert into the slots on the brackets. The multiple barbs allow for different facing thicknesses.
