7.3 Settings of the integrated control unit
All settings can be taken by means of the control element of the integrated control unit.
Remove the screw (1, fig.3) for the cover.
Remove the cover of the control unit (2, fig. 4).

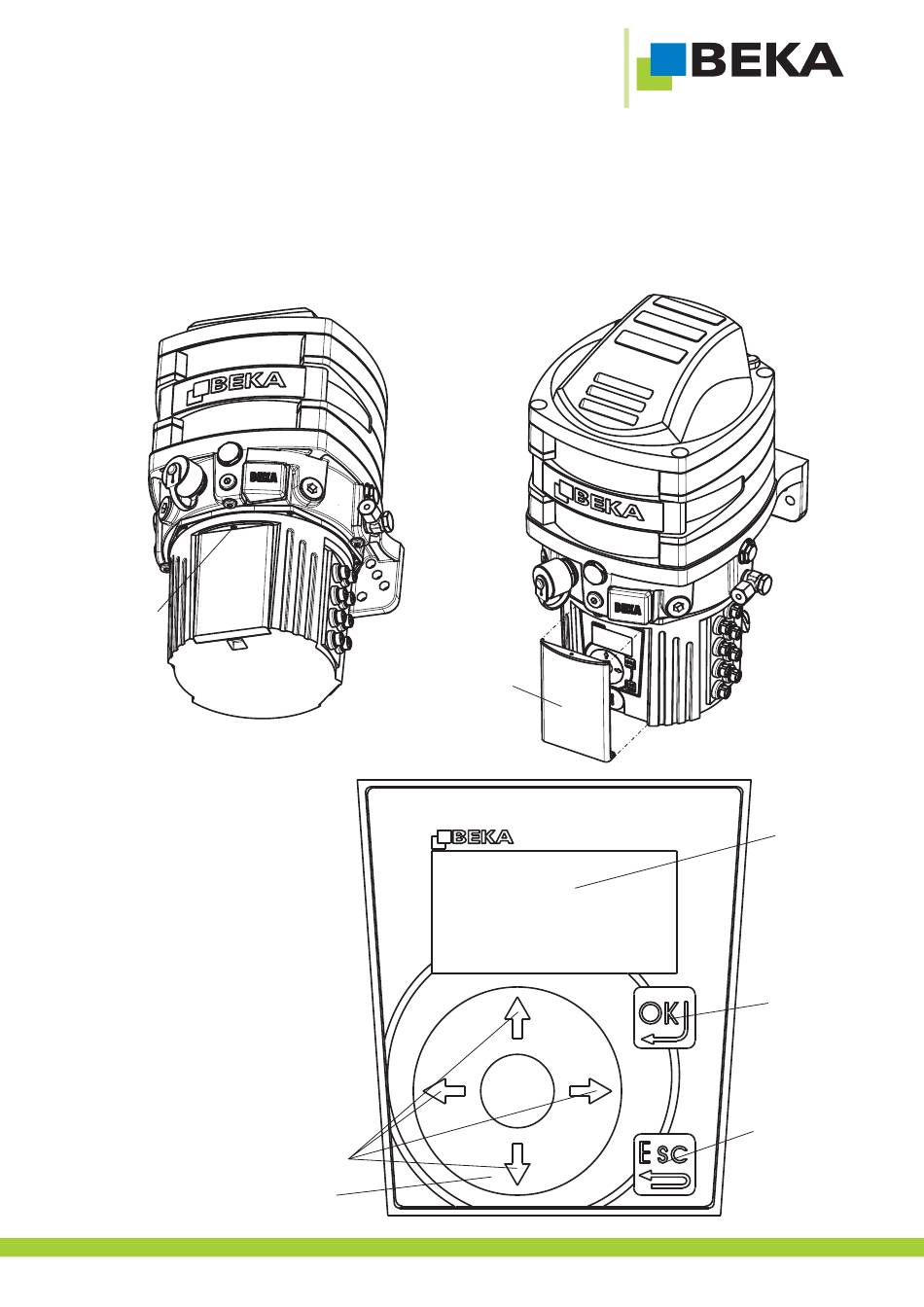

Fig. 3:
1
The display shows the current settings
of the integrated control unit.
The control element has several buttons
to do the settings of the integrated
control unit.
The OK button confirms the current
setting.
T h e E S C b u t t o n d e l e t e s t h e
modification, the control unit operates
with the previous setting. The ESC
button also initiates an intermediate
lubrication.
If no button is pressed for more than 1
min. the control unit switches back to
status display. The entered password is
deleted.
Control buttons
Control element
...a product of BEKA
Fig. 4:
2
progressive
state
cycle time
00:00:15
lubr. time
ERROR WARNING
11
Display
Fehler
0:05:00
Confirm
Interruption
or intermediate
lubrication
