Wheels

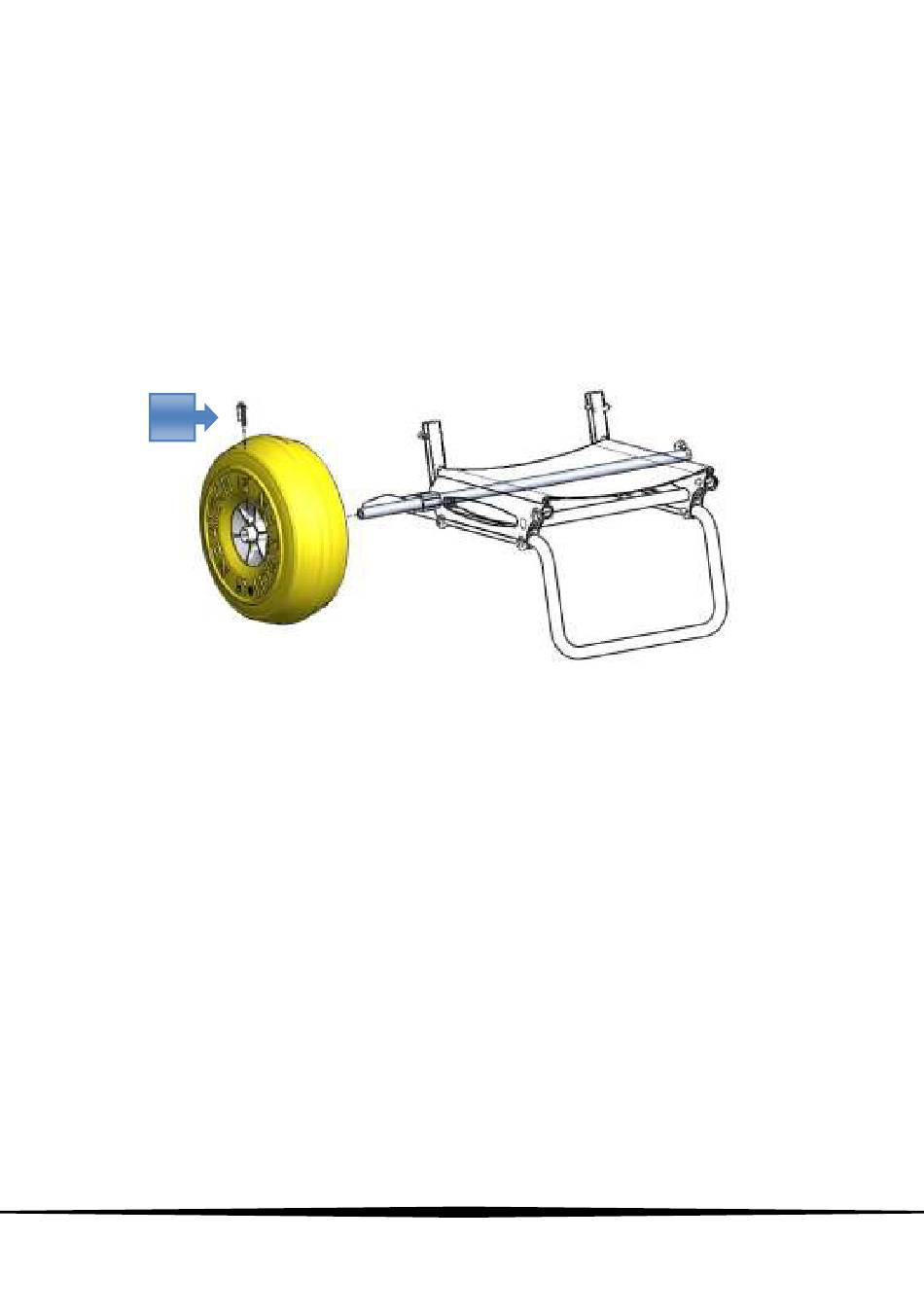

Insert the wheel (lh and rh) on the axis of the chassis as shown in Figure 30.
Use the special housing hole on the hub, previously aligned with the hole present
on the axle of the frame and insert the fastener (F)
Make sure each wheel fastener is correctly locked on hub.
F
Figure 30
Backrest
Insert the backrest into the bushings on the main frame as shown in Figure 31, then
insert the 2 fasteners deeply through proper holes to lock it.
Make sure fasteners are correctly locked on main frame.
www.neatech.it
44
