USER MANUAL

with CE Mark Statement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the speedstar xtreme and is the answer not in the manual?

Questions and answers

Related Manuals for Neatech speedstar xtreme

Summary of Contents for Neatech speedstar xtreme

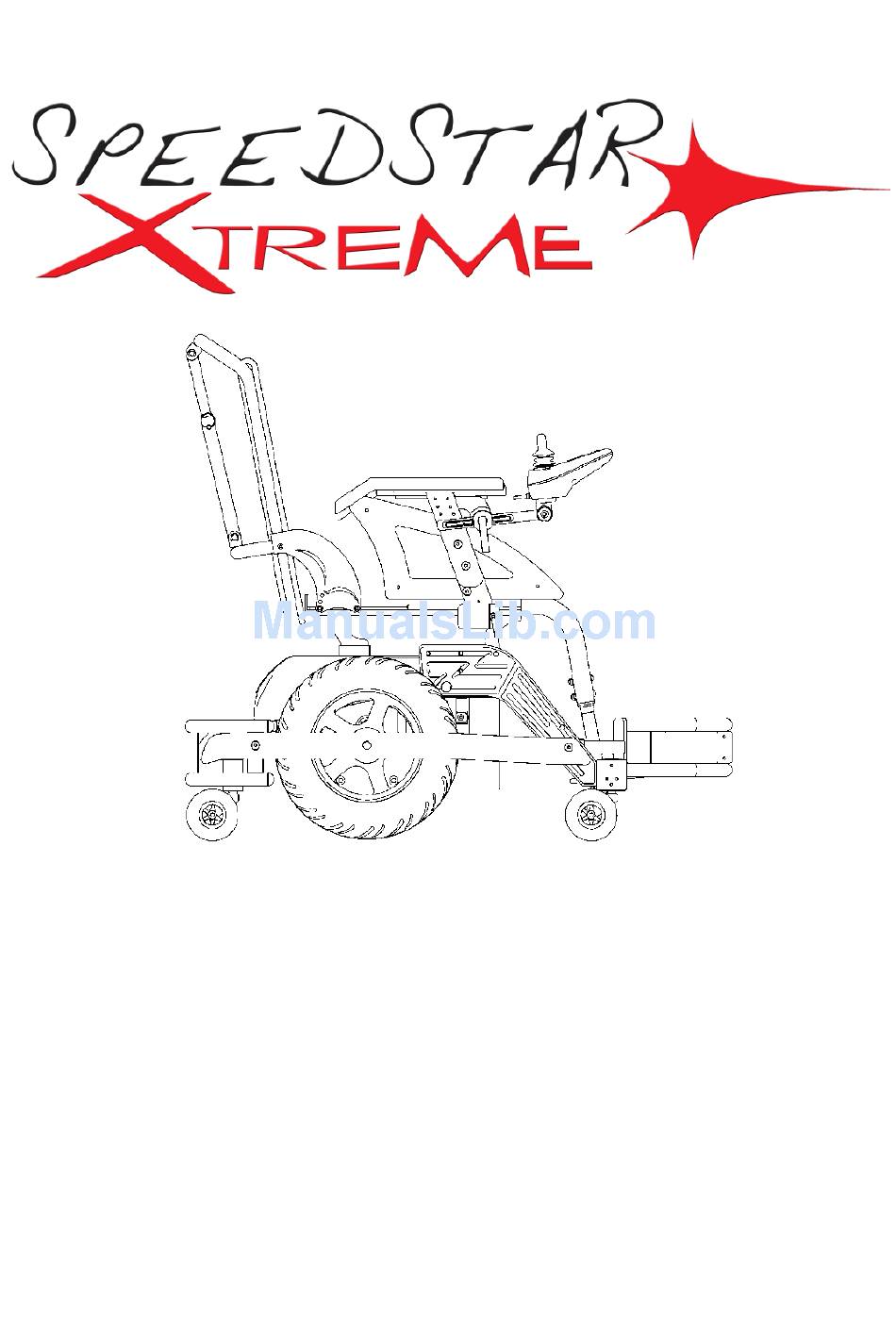

  • Page 1: User Manual

    USER MANUAL with CE Mark Statement...

  • Page 3: Declaration Of Conformity

    4/A A. De Curtis St. 80040 Cercola (NA), Italy under its responsibility, states that the wheelchair Speedstar Xtreme satisfies the conditions laid down by European Directive 93/42; according to the criteria for classification of annex IX of this Directive, the Speedstar...

  • Page 5: Table Of Contents

    Table of contents WHEELCHAIR PRESENTATION ................1 STARTING UP ..................... 2 USE OF THE WHEELCHAIR ................. 4 ADJUSTMENTS ....................10 ACCESSORIES ....................14 CONTROL AND MAINTENANCE ............... 26 FAULT, REPAIR AND ASSISTANCE ..............18...
  • Page 6 TIPPING HAZARD Any transport on a slope greater than the maximum security slope can be dangerous. ELECTROMAGNETIC RADIATION DANGER The behavior of the wheelchair while driving may be affected by electromagnetic fields such as mobile phones and other devices. It is recommended to avoid the use of the wheelchair in the presence of such devices.

  • Page 7: Wheelchair Presentation

    WHEELCHAIR PRESENTATION Thank you for purchasing the electronic wheelchair Speedstar Xtreme. Speedstar Xtreme is designed to be used mainly for competition use. The aeronautical technology, used to manufacture all Neatech.IT products, made possible to create rigid and foldable frame highly customizable and reliable.

  • Page 8: Starting Up

    For any other questions, please contact the manufacturer. If you don’t want to use the Speedstar Xtreme for a long time, store it in a safe place fre from dust and moisture.
  • Page 9 Figure 1 Trasporto e immagazzinamento If you don’t use the Speedstar Xtreme for a long time make sure you set the switch (I) OFF You should keep the Speedstar in a place free from dust and moisture and away from heat sources.

  • Page 10: Use Of The Wheelchair

    3,0 bar Rear wheels 1,5 bar Checking battery charge level Check the battery charge level on the indicator located on the joystick. Check of electric cables Check that the wires don’t constitute a hindrance to the movements of the wheelchair. www.neatech.it...
  • Page 11 5. Display LCD a colori Figure 3 6. PROFILES button 7. MAX speed selector 8. Controller Figure 4 NOTE: it is possible that the control console of the Speedstar is different depending on the accessories chosen. Main controls remain unchanged . www.neatech.it...
  • Page 12 Use button 3 to navigate between the driving modes set during programming of the console. Use button 6 to navigate between profiles set during programming of the console. Don’t turn on or turn off the console while wheelchair is moving www.neatech.it...
  • Page 13 If you need to use the push mode use switch (I), Figure 2, to turn off the Speedstar and set the release engine lever as shown in Figure 6. Figure 6 In the push mode electromechanical brakes are off and therefore use of the Speedstar Xtreme in presence of slopes may be dangerous. www.neatech.it...
  • Page 14 All led of the charger light up and after a second led C turns off and the charge starts. If not, check the connections made. Battery correctly loaded. Unplug the power cord and the battery cable. www.neatech.it...
  • Page 15 (voltage, frequency). RELEASE DANGER Any impact to the batteries could cause a loss of fluids. Pay attention ENVIRONMENTAL HAZARD It is recommended to properly recycle used batteries. Contact your local agency for waste disposal for more information. www.neatech.it...

  • Page 16: Adjustments

    Height Figure 7 Seeing Figure 7 loosen the screws (A), and set armrests height to desired value and retighten the screws (A). NOTE: for this operation use a 6 mm allen wrench. www.neatech.it...
  • Page 17 Loosen the 2 screws indicated in Figure 9 and move the armrest in accordance with the directions indicated to reach the desired position and tighten the screws again. NOTE: for this operation use a 6 mm allen wrench. Figure 9 www.neatech.it...
  • Page 18 To adjust the angle of the joystick you must act on the screw Figure 10 Backrest depth Figure 11 Seeing Figure 11 Loosen the screws (V), move back up to the desired position and retighten the screws NOTE: for this operation use a 4 mm allen wrench. www.neatech.it...
  • Page 19 4. ADJUSTMENTS Backrest inclination To adjust the backrest angle it is necessary to remove the insert (I) and replace it once you get the desired angle as shown in Figure 12 Figure 13. Figure 12 Figure 13 www.neatech.it...

  • Page 20: Accessories

    5. ACCESSORIES Speedstar Xtreme can be equipped with many accessories that NEATECH make available to meet different customer’s needs. There is the possibility that the joystick changes depending on desired accessories. Dynamic reclining backrest This equipment allows you to recline the backrest with the help of a lever installed on the back.
  • Page 21 With a pin you can also rotate it. Figure 17 Seat belt Speedstar Xtreme has the predisposition for the installation of a seat belt that can be mounted on request. You can also request: heel straps, calf straps and foot straps. www.neatech.it...

  • Page 22: Control And Maintenance

    Specifications Maximum allowed mass 150 kg Intended use Speedstar Xtreme is intended for all those groups of users that are confined to a sitting position who have the opportunity and the need not only to travel autonomously but even to carry out a true sport activity.

  • Page 23: Serial Number

    For this operation contact your vendor Tire pressure monitoring Weekly Checking of tire usury Monthly Complete cleaning Monthly Serial number For any report or requests for assistance communicate the unique identification code on the frame of each Speedstar Xtreme. www.neatech.it...

  • Page 24: Fault, Repair And Assistance

    Tires are not set to the Set the tires pressure to a good grip correct value of pressure the correct value end of the life cycle of the contact assistance for the Low autonomy of batteries batteries replacement of the batteries www.neatech.it...
  • Page 25 Specify seat width and depth Specify left or right Headrest Bearing pair for front forks Front forks Specify Speedstar version (66 - 55) Specify if position light, directions light or Lights headlights NOTE: For any other problem, contact the manufacturer. www.neatech.it...
  • Page 26 The warranty expires in case of tampering, improper storage, unauthorized or incorrect maintenance. MODEL: Speedstar Xtreme SERIAL NUMBER: DATE OF CONSTRUCTION: www.neatech.it...
  • Page 27 GUASTI, RIPARAZIONI E ASSISTENZA...
  • Page 28 GUASTI, RIPARAZIONI E ASSISTENZA USER MANUAL SPEEDSTAR XTREME NEATECH.IT Our Mission is transfer technology and solution from the aerospace industry to disability sector. We are proud to offer the highest quality products and solution on the market. www.neatech.it...
