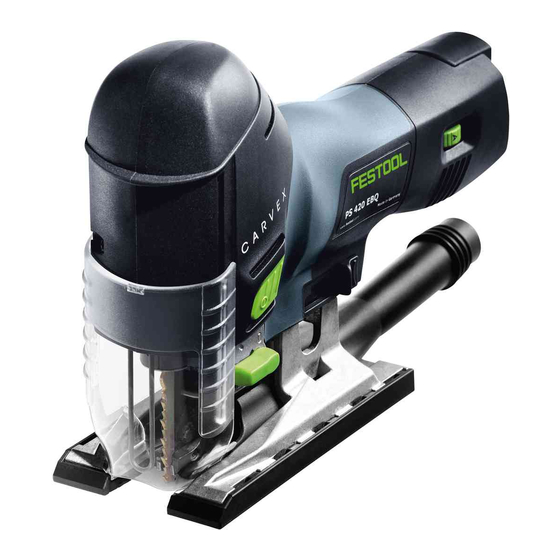

Festool CARVEX PS 420 EBQ Instruction Manual
Hide thumbs
Also See for CARVEX PS 420 EBQ:
- Original instructions manual (113 pages) ,
- Original operating manual (107 pages) ,
- Instruction manual (49 pages)
Table of Contents
Advertisement
Quick Links
Festool GmbH
Wertstraße 20
73240 Wendlingen
Germany
www.festoolusa.com
Instruction manual
Page 6
IMPORTANT: Read all instructions before using.
Guide d'utilisation
Page 20
IMPORTANT: Lire toutes les instructions avant de démarrer les travaux.
Manual de instrucciones
Página 35
IMPORTANTE: Lea todas las instrucciones antes de usar.
Instruction manual
Guide d'utilisation
Manual de instrucciones
C A R V E X
PS 420 EBQ
PSB 420 EBQ
DISTRIBUTED BY:
Pro Wood Finishes
14622 Southlawn Lane
Rockville MD 20850
Ph: (301) 424-3033
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Festool CARVEX PS 420 EBQ
Summary of Contents for Festool CARVEX PS 420 EBQ

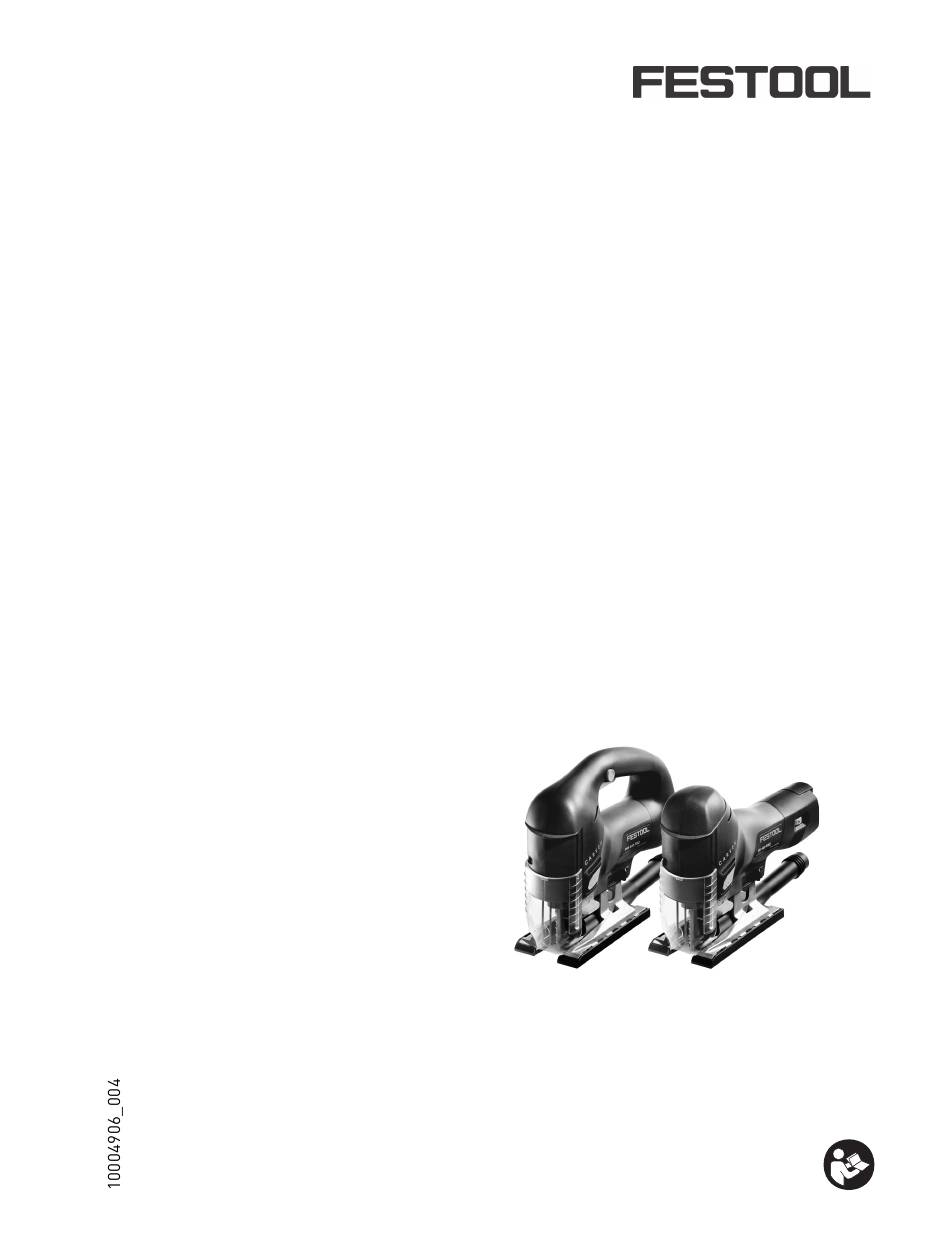

- Page 1 DISTRIBUTED BY: Pro Wood Finishes 14622 Southlawn Lane Rockville MD 20850 Ph: (301) 424-3033 Festool GmbH Wertstraße 20 73240 Wendlingen Germany www.festoolusa.com Instruction manual Page 6 IMPORTANT: Read all instructions before using. Guide d’utilisation Page 20 IMPORTANT: Lire toutes les instructions avant de démarrer les travaux.
- Page 2 PS 420 EBQ 1-11 1-10 1-13 1-12 PSB 420 EBQ 1-3 1-4 1-11 1-10 1-13 1-12...
-
Page 3: Table Of Contents
Contents revolutions per minute Symbols ..........6 ’’ inch Safety instructions....... 6 lbs. pound Technical data........8 diameter Functional description......9 hint, tipp Intended use ........9 Operation ..........9 Warning of general danger Settings..........10 Risk of electric shock Working with the machine.... - Page 4 liquids, gases or dust. Power tools create sparks attached to a rotating part of the power tool may which may ignite the dust or fumes. result in personal injury. c. Keep children and bystanders away while oper- e. Do not overreach. Keep proper footing and bal- ating a power tool.
-
Page 5: Technical Data
operations different from those intended could – Do not look into the stroboscope light. Looking result in a hazardous situation. into the light source can damage your vision. h. Keep handles dry, clean and free from oil and Health hazard by dust grease. -
Page 6: Functional Description
If the tool is installed in another, or self- als similar to wood. With the special saw blades of- made, work table, it can become unstable and re- fered by Festool, these machines can also be used sult in serious accidents. for sawing plastic, steel, aluminium, non-ferrous metal and ceramic plates. -
Page 7: Settings
Extension Cord Total Extension Cord Lenght (feet) If an extension cord is required, it must have suffi- cient cross-section to prevent an excessive drop in Cable size (AWG) voltage or overheating. An excessive drop in voltage reduces the output and can lead to failure of the Use only U.L. - Page 8 Instead of the saw table, the angle table WT-PS 400 or adaptation table ADT-PS 400 can be installed at the support. Never saw without the saw table, or one of the other tables offered in the Festool acces- sories program. 3 mm Inserting the splinterguard...
- Page 9 The extraction adapter [4-3] allows jigsaws to be Only use cross-set saw blades when using the connected to a dust extractor (hose diameter 27 angle and adapter table. We recommend Fes- mm). tool saw blade S 105/4 FSG. Insert the extraction adapter into the rear open- Inserting saw blade ing of the saw table so that the hook [4-2] en- gages in the [4-1] recess.
-
Page 10: Working With The Machine
Adjust the saw blade guide after every saw blade change: The saw blade guide was designed to improve guid- ance of the saw blade. Remove the saw base (see chapter Changing saw table). Tighten the screw [6-2] using the Allen key [6- 1] until the jaws are almost touching the saw blade. -
Page 11: Accessories
– Clean tool regularly of dust accumulations in the motor housing. Wear protective goggles. Accessories Use only original Festool accessories and Festool the quality of your results and limit warranty consumable material intended for this machine. claims. Machine wear or your own personal work- These components are designed specifically for load may increase depending on the application. - Page 12 The angle table WT-PS 400 is used for cutting pipes The order numbers of the accessories and tools can or interior and exterior angles up to 45°. be found in the Festool catalogue or on the Internet Dust extraction is not possible when sawing under "www.festoolusa.com".
- Page 13 The adaptation table ADT-PS 400 is used for attach- smooth operation. ing your jigsaw to the Festool guide rail, the circle cutter KS-PS 400 and the CMS modular system. With guide rail and circle cutter: do not ex- ceed max.
- Page 14 Systainer with a diameter between 120 and 3000 mm. The cir- cle cutter can be installed from both sides on the Many Festool products are shipped in a unique sys- adaptation table. tem container, called "Systainer". This provides protection and storage for the tool and accessories.
-
Page 15: Service And Maintenance
12.1 Service and maintenance WARNING WARNING Any maintenance or repair work that requires Risk of injury, electric shock opening of the motor or gear housing should only Always pull the mains plug out of the socket be- be carried out by an authorised Customer Service fore performing any type of work on the ma- Centre (name supplied by your dealer)! chine! -
Page 16: Environment
guard. scratches and cores on the surface. – Regularly clean the base runner to prevent Environment Do not throw the power tool in your household packaging at an environmentally responsible recy- waste! Dispose of machines, accessories and cling centre. Observe the valid national regulations.
