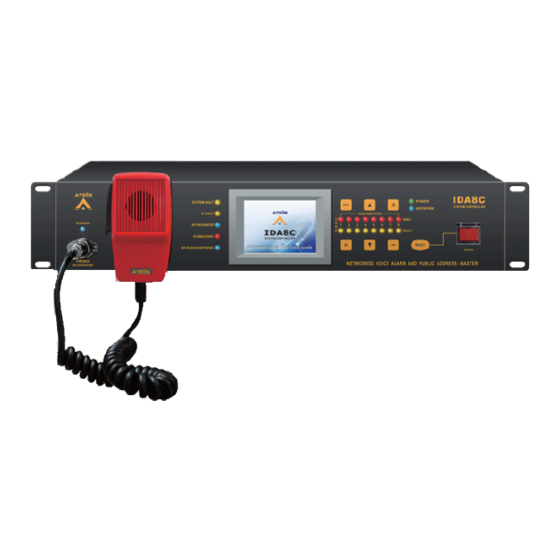

- Page 1 IDA8 Global-Net Highly Integrated, Networked Public Address and Voice Alarm System Installation Guide Revision History v1.02 www.ateis.com © 2021, ATEÏS, member of PAX ProAV Group...
-
Page 2: Power Supply
Ethernet (RJ45) Use the supplied Ethernet cable (CAT5/6) to connect the IDA8C processor to a computer. The PC-based Ateis Studio software shall provide all the necessary tools to setup, configure, control and monitor the entire system. ATEIS network Local-net Connect 1 IDA8C with another IDA8SAB unit via Ateis local-net. -
Page 3: External Power Amplifier
Hardware installation & connection Connect 1 IDA8C and 2 IDA8SAB units via Ateis local-net. Global-net Connect 2 IDA8C units together via Ateis global-net and each IDA8C connects to another 1 IDA8SAB unit via Ateis local-net. External power amplifier Connect the power amplifiers and loudspeakers on IDA8C processor, see the picture below. - Page 4 IDA8 Installation Guide If the IDA8 controller is connecting to non-floating output amplifier, please disable the leakage monitor function on Ateis Studio software > Monitoring > Global Setting > Enable Leakage. Digital paging console To connect one or several remote devices such as PPM-AS/CD-8AS/CD-16AS on IDA8C, they require to add an external power supply via Junction Box (JB).
- Page 5 Hardware installation & connection Cascade with multiple devices Cascade with multiple PPM-AS/CD-8AS/CD-16AS/URC-150AS devices: To know the 8-pin STP CAT5/6 pinout using on URC-150AS, see 8-pin STP CAT5/6 cable for details. Up to ten PPM-AS units can be connected via junction boxes on one IDA8. 8-pin STP CAT5/6 cable 8-pin STP CAT5/6 cable with metal shielded connector Pin1...
- Page 6 IDA8 Installation Guide 5. Press [USER NAME] in [LOGIN] page. 6. Enter the ID "ADMIN" which is the default user ID of IDA8C, keep the password field empty and click "OK". 7. And there will be a message indicates as "Login successful". 8.
- Page 7 Hardware installation & connection The settings will be applied after the rebooting the system.
-
Page 8: Step 1: Network Settings
IDA8 Installation Guide Ateis Studio software Ateis Studio is a user-friendly GUI software designed for intuitive system setup. The PC-based software allows hardware update, full system configuration and generates the user interface for day-to-day system operation. Step 1: network settings Install and operate the Ateis Studio software, and assign the network card on Ateis Studio. - Page 9 Click [Read version] button to check the compatibility between IDA8C and Ateis Studio. Click [Read] to see the information about the firmware version. If all the firmware units are compatible (shown in black text) with Ateis Studio, please go to step otherwise continue the following steps to update the firmware.
- Page 10 Step 4: system building-create a new file Create a new file. Create a new file by clicking the button on the upper-left of the Ateis Studio software. Connect the device and create an IDA8C block in the device editor window.
- Page 11 Ateis Studio software Then a IDA8C block will be created. Step 5: system building-DSP compoment Add a Tone component and connect it to the Output component. Double click the IDA8C icon to open the [IDA8C DSP Configuration - IDA8C1]. Users can drag and drop the DSP components which are listed on the left to the DSP configuration window.
- Page 12 Online mode. Please read the IDA8 global-net user manual to know the advanced configuration such as audio routing, event and bell scheduler, master/sub-preset, 3rd party control, EVAC paging, paging with priority management, monitor, DSP parameter adjustment, level control, fault list, user management etc.
-
Page 13: Contact Infomation
Contact infomation ATEÏS Europe B.V. Europe & Africa Celsiusstraat 1 - 2652 XN Lansingerland (Rotterdam Region), Netherlands Tel: +31 (0) 10 2088690 info@ateis-europe.com www.ateis.com ATEÏS Suisse SA Penton Audio USA Switzerland & South-East Europe USA, Canada & Latin America Avenue des Baumettes 9, 21 Sabin St.
