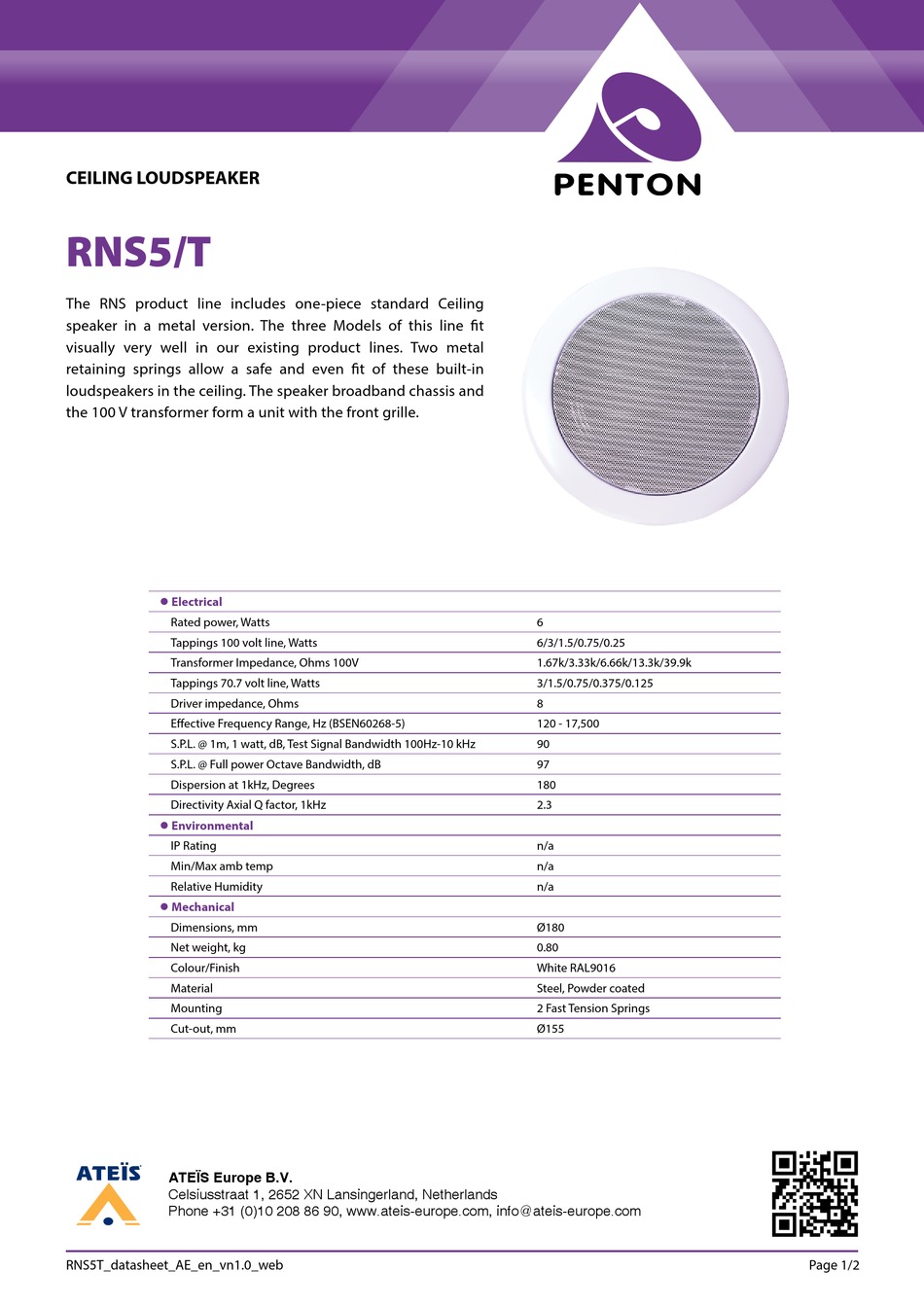

Ateis PENTON RNS Series Installation Manual

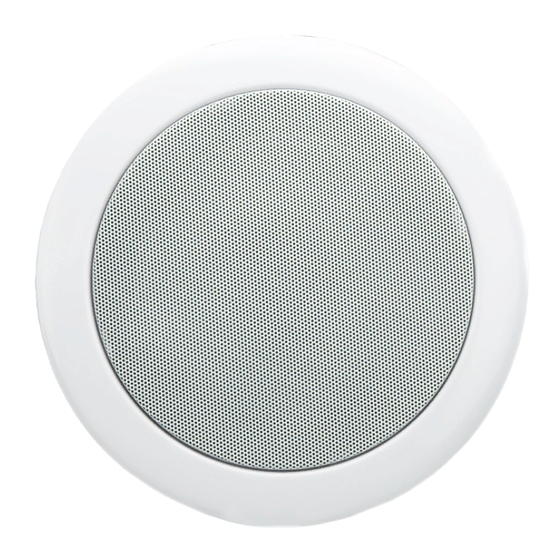

CEILING LOUDSPEAKER

RNS5/T
The RNS product line includes one-piece standard Ceiling
speaker in a metal version. The three Models of this line fit
visually very well in our existing product lines. Two metal
retaining springs allow a safe and even fit of these built-in
loudspeakers in the ceiling. The speaker broadband chassis and
the 100 V transformer form a unit with the front grille.
 Electrical
Rated power, Watts
Tappings 100 volt line, Watts
Transformer Impedance, Ohms 100V
Tappings 70.7 volt line, Watts
Driver impedance, Ohms
Effective Frequency Range, Hz (BSEN60268-5)
S.P.L. @ 1m, 1 watt, dB, Test Signal Bandwidth 100Hz-10 kHz
S.P.L. @ Full power Octave Bandwidth, dB
Dispersion at 1kHz, Degrees
Directivity Axial Q factor, 1kHz
 Environmental
IP Rating
Min/Max amb temp
Relative Humidity
 Mechanical
Dimensions, mm
Net weight, kg
Colour/Finish
Material
Mounting
Cut-out, mm
ATEÏS Europe B.V.
Celsiusstraat 1, 2652 XN Lansingerland, Netherlands
Phone +31 (0)10 208 86 90, www.ateis-europe.com, info@ateis-europe.com
RNS5T_datasheet_AE_en_vn1.0_web
6
6/3/1.5/0.75/0.25
1.67k/3.33k/6.66k/13.3k/39.9k
3/1.5/0.75/0.375/0.125
8
120 - 17,500
90
97
180
2.3
n/a
n/a
n/a
Ø180
0.80
White RAL9016
Steel, Powder coated
2 Fast Tension Springs
Ø155
