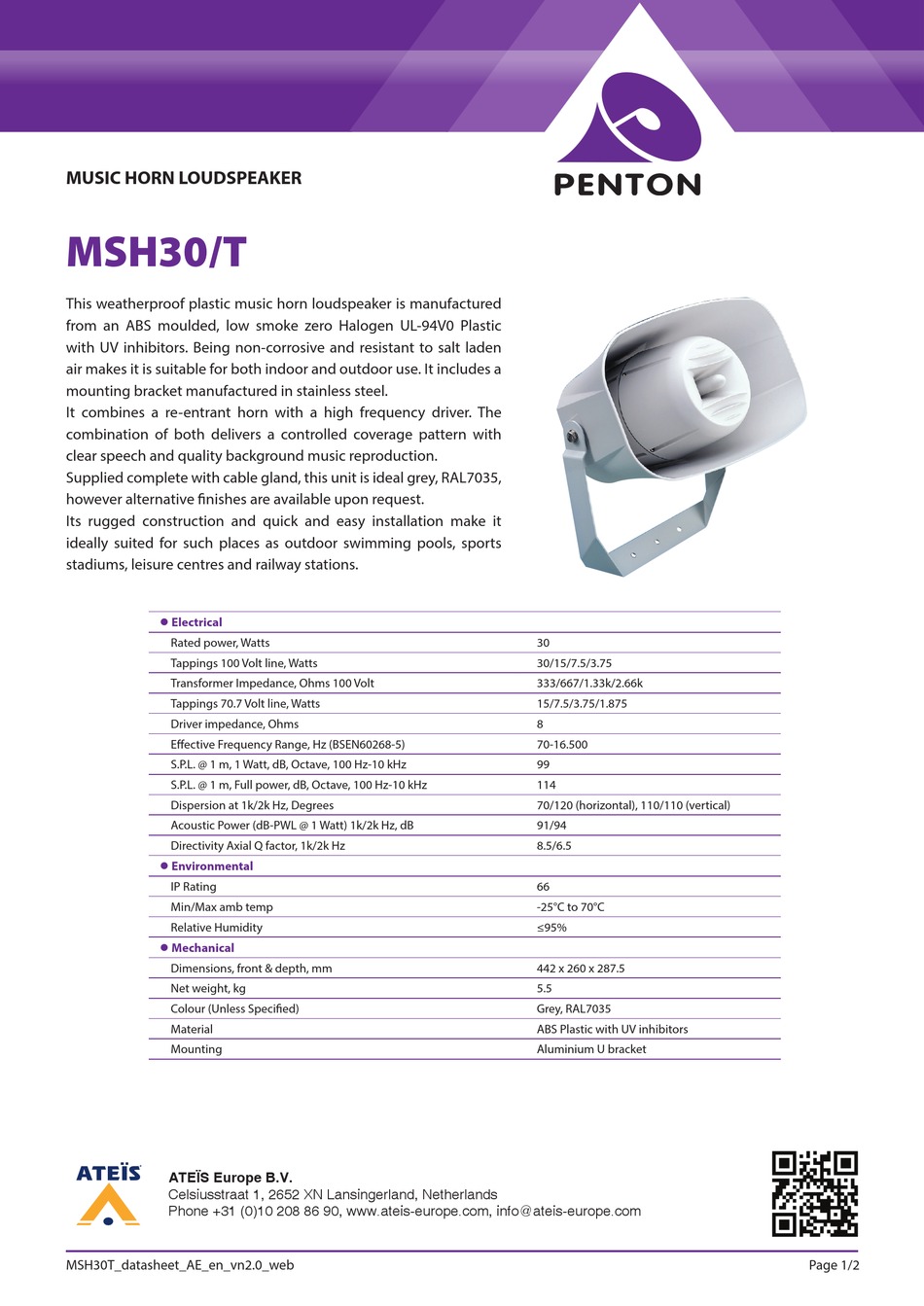

MUSIC HORN LOUDSPEAKER

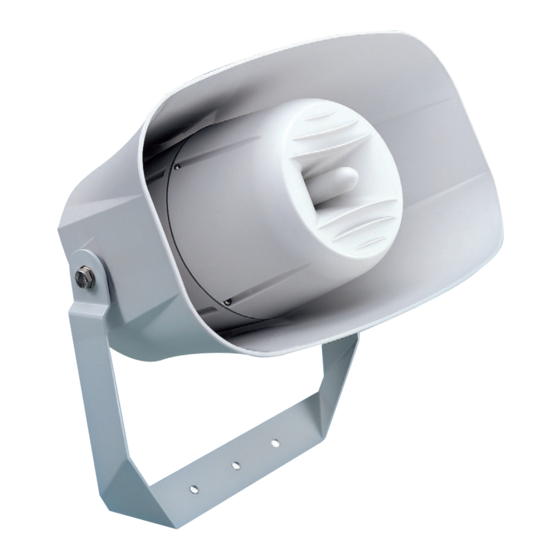

MSH30/T
This weatherproof plastic music horn loudspeaker is manufactured
from an ABS moulded, low smoke zero Halogen UL-94V0 Plastic
with UV inhibitors. Being non-corrosive and resistant to salt laden
air makes it is suitable for both indoor and outdoor use. It includes a
mounting bracket manufactured in stainless steel.
It combines a re-entrant horn with a high frequency driver. The
combination of both delivers a controlled coverage pattern with
clear speech and quality background music reproduction.
Supplied complete with cable gland, this unit is ideal grey, RAL7035,
however alternative finishes are available upon request.
Its rugged construction and quick and easy installation make it
ideally suited for such places as outdoor swimming pools, sports
stadiums, leisure centres and railway stations.
 Electrical
Rated power, Watts
Tappings 100 Volt line, Watts
Transformer Impedance, Ohms 100 Volt
Tappings 70.7 Volt line, Watts
Driver impedance, Ohms
Effective Frequency Range, Hz (BSEN60268-5)
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz
Dispersion at 1k/2k Hz, Degrees
Acoustic Power (dB-PWL @ 1 Watt) 1k/2k Hz, dB
Directivity Axial Q factor, 1k/2k Hz
 Environmental
IP Rating
Min/Max amb temp
Relative Humidity
 Mechanical
Dimensions, front & depth, mm
Net weight, kg
Colour (Unless Specified)
Material
Mounting
ATEÏS Europe B.V.
Celsiusstraat 1, 2652 XN Lansingerland, Netherlands
Phone +31 (0)10 208 86 90, www.ateis-europe.com, info@ateis-europe.com
MSH30T_datasheet_AE_en_vn2.0_web
30
30/15/7.5/3.75
333/667/1.33k/2.66k
15/7.5/3.75/1.875
8
70-16.500
99
114
70/120 (horizontal), 110/110 (vertical)
91/94
8.5/6.5
66
-25°C to 70°C
≤95%
442 x 260 x 287.5
5.5
Grey, RAL7035
ABS Plastic with UV inhibitors
Aluminium U bracket
Page 1/2
