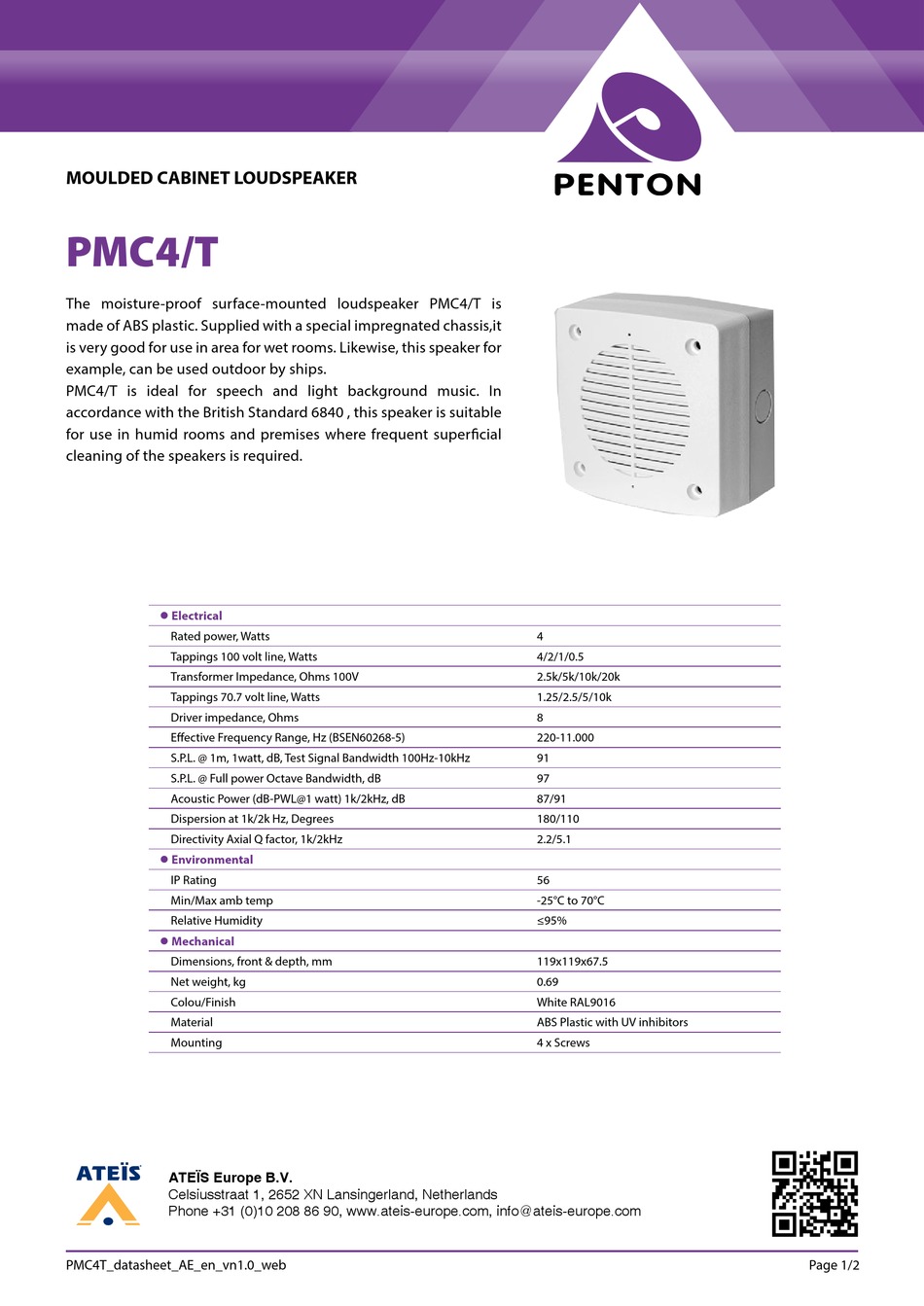

Ateis PENTON PMC4/T Installation Manual

MOULDED CABINET LOUDSPEAKER
PMC4/T
The moisture-proof surface-mounted loudspeaker PMC4/T is
made of ABS plastic. Supplied with a special impregnated chassis,it
is very good for use in area for wet rooms. Likewise, this speaker for
example, can be used outdoor by ships.
PMC4/T is ideal for speech and light background music. In
accordance with the British Standard 6840 , this speaker is suitable
for use in humid rooms and premises where frequent superficial
cleaning of the speakers is required.
 Electrical
Rated power, Watts
Tappings 100 volt line, Watts
Transformer Impedance, Ohms 100V
Tappings 70.7 volt line, Watts
Driver impedance, Ohms
Effective Frequency Range, Hz (BSEN60268-5)
S.P.L. @ 1m, 1watt, dB, Test Signal Bandwidth 100Hz-10kHz
S.P.L. @ Full power Octave Bandwidth, dB
Acoustic Power (dB-PWL@1 watt) 1k/2kHz, dB
Dispersion at 1k/2k Hz, Degrees
Directivity Axial Q factor, 1k/2kHz
 Environmental
IP Rating
Min/Max amb temp
Relative Humidity
 Mechanical
Dimensions, front & depth, mm
Net weight, kg
Colou/Finish
Material
Mounting
ATEÏS Europe B.V.
Celsiusstraat 1, 2652 XN Lansingerland, Netherlands
Phone +31 (0)10 208 86 90, www.ateis-europe.com, info@ateis-europe.com
PMC4T_datasheet_AE_en_vn1.0_web
4
4/2/1/0.5
2.5k/5k/10k/20k
1.25/2.5/5/10k
8
220-11.000
91
97
87/91
180/110
2.2/5.1
56
-25°C to 70°C
≤95%
119x119x67.5
0.69
White RAL9016
ABS Plastic with UV inhibitors
4 x Screws
Page 1/2
