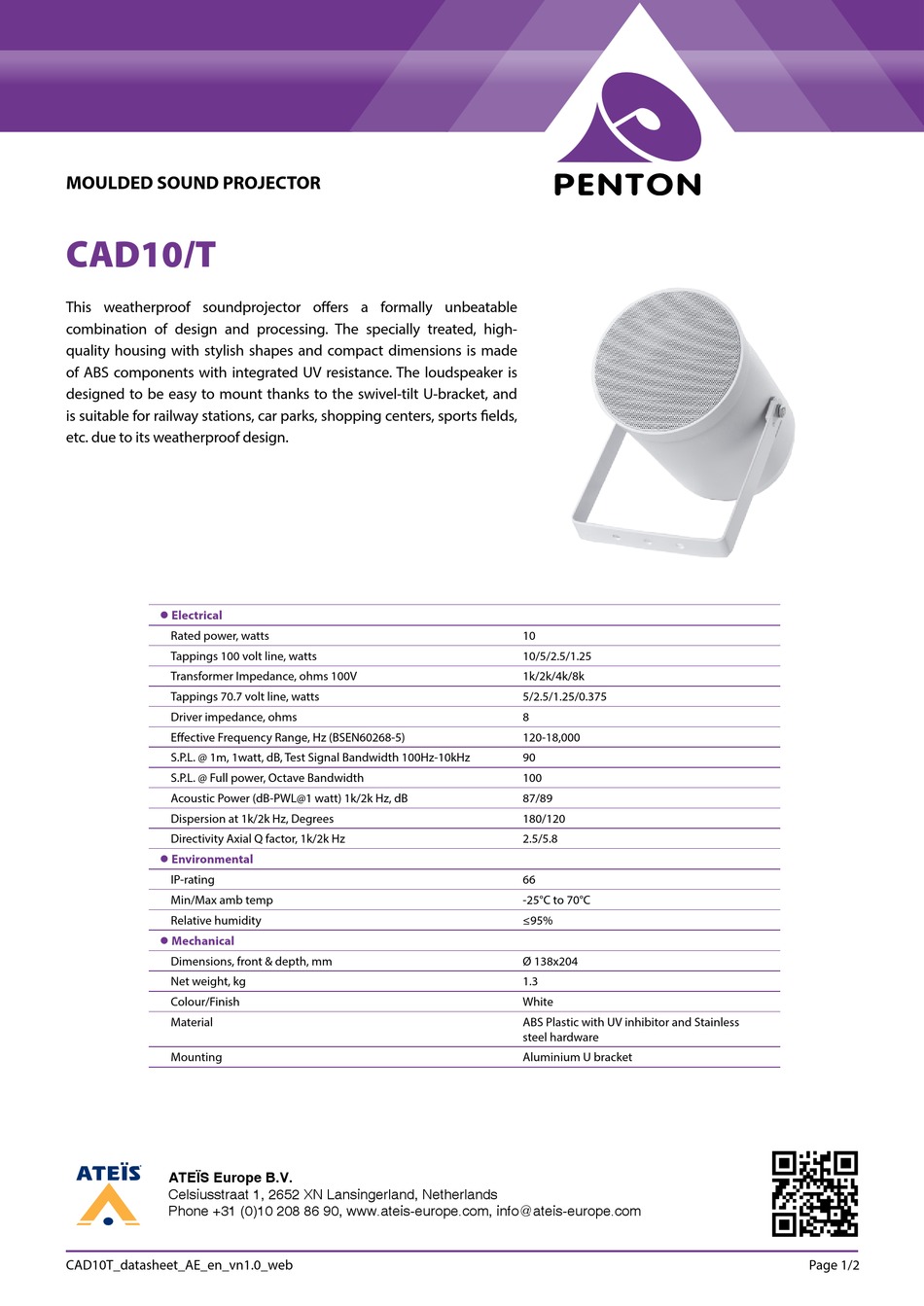

MOULDED SOUND PROJECTOR
CAD10/T

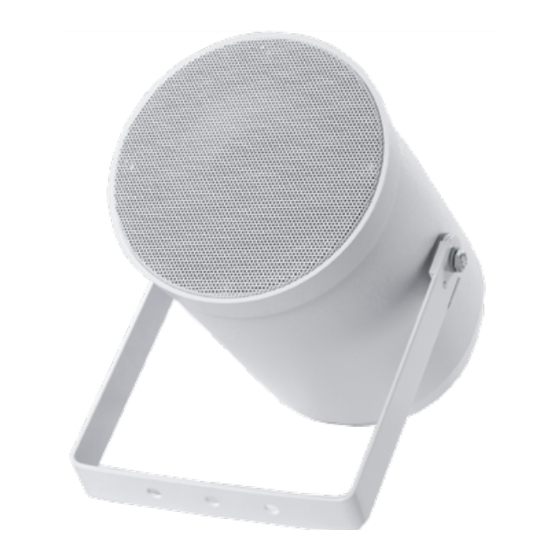

This weatherproof soundprojector offers a formally unbeatable
combination of design and processing. The specially treated, high-
quality housing with stylish shapes and compact dimensions is made
of ABS components with integrated UV resistance. The loudspeaker is
designed to be easy to mount thanks to the swivel-tilt U-bracket, and
is suitable for railway stations, car parks, shopping centers, sports fields,
etc. due to its weatherproof design.
 Electrical
Rated power, watts
Tappings 100 volt line, watts
Transformer Impedance, ohms 100V
Tappings 70.7 volt line, watts
Driver impedance, ohms
Effective Frequency Range, Hz (BSEN60268-5)
S.P.L. @ 1m, 1watt, dB, Test Signal Bandwidth 100Hz-10kHz
S.P.L. @ Full power, Octave Bandwidth
Acoustic Power (dB-PWL@1 watt) 1k/2k Hz, dB
Dispersion at 1k/2k Hz, Degrees
Directivity Axial Q factor, 1k/2k Hz
 Environmental
IP-rating
Min/Max amb temp
Relative humidity
 Mechanical
Dimensions, front & depth, mm
Net weight, kg
Colour/Finish
Material
Mounting
ATEÏS Europe B.V.
Celsiusstraat 1, 2652 XN Lansingerland, Netherlands
Phone +31 (0)10 208 86 90, www.ateis-europe.com, info@ateis-europe.com
CAD10T_datasheet_AE_en_vn1.0_web
10
10/5/2.5/1.25
1k/2k/4k/8k
5/2.5/1.25/0.375
8
120-18,000
90
100
87/89
180/120
2.5/5.8
66
-25°C to 70°C
≤95%
Ø 138x204
1.3
White
ABS Plastic with UV inhibitor and Stainless
steel hardware
Aluminium U bracket
Page 1/2
