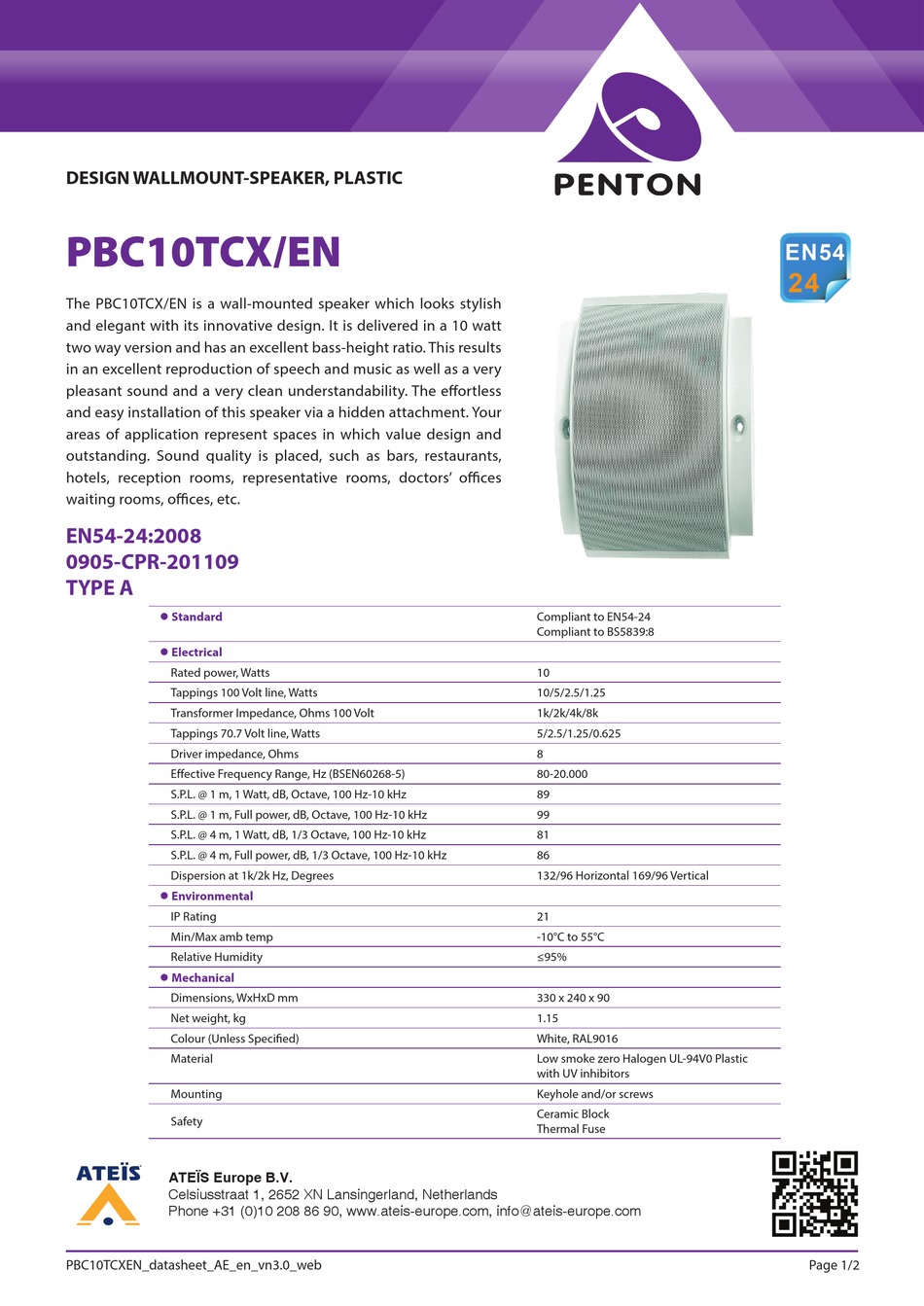

DESIGN WALLMOUNT-SPEAKER, PLASTIC
PBC10TCX/EN

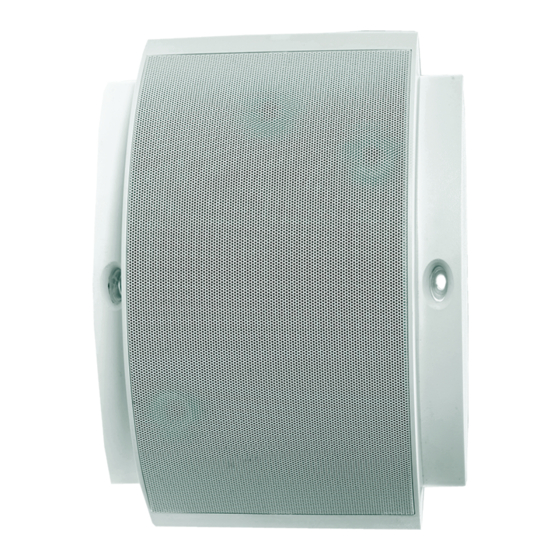

The PBC10TCX/EN is a wall-mounted speaker which looks stylish
and elegant with its innovative design. It is delivered in a 10 watt
two way version and has an excellent bass-height ratio. This results
in an excellent reproduction of speech and music as well as a very
pleasant sound and a very clean understandability. The effortless
and easy installation of this speaker via a hidden attachment. Your
areas of application represent spaces in which value design and
outstanding. Sound quality is placed, such as bars, restaurants,
hotels, reception rooms, representative rooms, doctors' offices
waiting rooms, offices, etc.
EN54-24:2008
0905-CPR-201109
TYPE A
 Standard
 Electrical
Rated power, Watts
Tappings 100 Volt line, Watts
Transformer Impedance, Ohms 100 Volt
Tappings 70.7 Volt line, Watts
Driver impedance, Ohms
Effective Frequency Range, Hz (BSEN60268-5)
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz
S.P.L. @ 4 m, 1 Watt, dB, 1/3 Octave, 100 Hz-10 kHz
S.P.L. @ 4 m, Full power, dB, 1/3 Octave, 100 Hz-10 kHz
Dispersion at 1k/2k Hz, Degrees
 Environmental
IP Rating
Min/Max amb temp
Relative Humidity
 Mechanical
Dimensions, WxHxD mm
Net weight, kg
Colour (Unless Specified)
Material
Mounting
Safety
ATEÏS Europe B.V.
Celsiusstraat 1, 2652 XN Lansingerland, Netherlands
Phone +31 (0)10 208 86 90, www.ateis-europe.com, info@ateis-europe.com
PBC10TCXEN_datasheet_AE_en_vn3.0_web
Compliant to EN54-24
Compliant to BS5839:8
10
10/5/2.5/1.25
1k/2k/4k/8k
5/2.5/1.25/0.625
8
80-20.000
89
99
81
86
132/96 Horizontal 169/96 Vertical
21
-10°C to 55°C
≤95%
330 x 240 x 90
1.15
White, RAL9016
Low smoke zero Halogen UL-94V0 Plastic
with UV inhibitors
Keyhole and/or screws
Ceramic Block
Thermal Fuse
