Sperian SURVIVAIR Opti-Fit S-Series Operation And Maintenance Manual

Sperian SURVIVAIR Opti-Fit S-Series Operation And Maintenance Manual

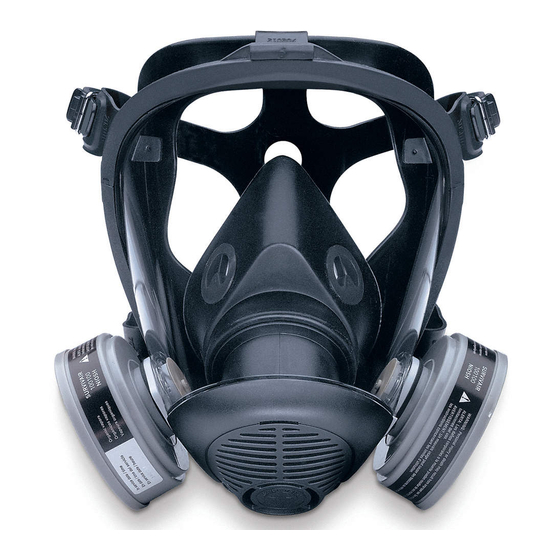

Full facepiece air purifying respirator

Advertisement

Quick Links

Full Facepiece Air Purifying Respirator
Operation and Maintenance Manual
DO NOT USE this respirator until you completely read and understand
this instruction manual. You are required to inspect the respirator pri-
or to putting it into field service. Please refer to the inspection proce-
dures in this manual. Failure to comply with this warning may result in
personal injury, illness, or death.
NIOSH APPROVED—SEE SEPARATE APPROVAL LABEL
Copyright July 2008 All Rights Reserved
©
SPERIAN Respiratory Protection USA, LLC
P/N 622094 Rev. G 03/09
SPERIAN
SURVIVAIR Opti-Fit
S-Series
WARNING
AN ISO 9001
REGISTERED
COMPANY
SPERIAN Respiratory Protection USA, LLC
3001 South Susan St., Santa Ana, CA 92704
Toll-Free 888.APR.SCBA or 714.545.0410
Fax 714.850.0299
www.sperianprotection.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SURVIVAIR Opti-Fit S-Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sperian SURVIVAIR Opti-Fit S-Series

  • Page 1 NIOSH APPROVED—SEE SEPARATE APPROVAL LABEL AN ISO 9001 REGISTERED COMPANY SPERIAN Respiratory Protection USA, LLC 3001 South Susan St., Santa Ana, CA 92704 Copyright July 2008 All Rights Reserved Toll-Free 888.APR.SCBA or 714.545.0410 © SPERIAN Respiratory Protection USA, LLC Fax 714.850.0299...
  • Page 2: Table Of Contents

    Table of Contents NIOSH CAUTIONS AND LIMITATIONS ......3 I. INTRODUCTION ......... 3 II.
  • Page 3: Niosh Cautions And Limitations

    S - Special or critical User’s Instructions and/or specific use limitations apply. Refer to User’s Instructions before donning. I. INTRODUCTION This manual provides instructions for the use and maintenance of the Sperian Respiratory Protection’s SURVIVAIR Opti-Fit full facepiece air purifying respira- ®...
  • Page 4: Description

    • The employer is responsible for establishing that this respirator is suit- able for the user’s application. • Sperian cannot predict what will happen to this respirator in every po- tential environment. Materials can be chemically attacked if exposed to the wrong environment and may exhibit excessive corrosion or other forms of damage.
  • Page 5 WARNING—Continued • Do not use this respirator at ambient temperatures above 130°F (55°C). • Do not use this respirator where environmental conditions could cause the respirator facepiece to be dislodged or slip. • Immediately return to a non-contaminated area if: a.
  • Page 6 • Use of components other than those listed on the NIOSH approval label and in this manual, or as authorized by Sperian, or modification of this respirator in any manner will void the NIOSH certification and invali- dates all Sperian’s warranties for the respirator.
  • Page 7: Parts List

    IV. PARTS LIST (See Figure 1) ITEM DESCRIPTION 702009 Headstrap, TPE 702089 Headnet, Mesh, Opti-Fit 962157 Small Skirt, Silicone 962167 Medium Skirt, Silicone 962177 Large Skirt, Silicone 702007 Lens 962031 Upper Rim 962037 Lower Rim 839102 Screw Pkg. of 6 B140001 Inhalation Valve Pkg.
  • Page 8 Note: Quantities in parentheses are for headnet configuration only. Optional Accessories 702019 Peel-away Lens Cover, Tinted (25) 702028 Peel-away Lens Cover, Clear (25) 962260 Spectacles Kit 951015 1 oz. Lens Anti-Fog Solution 951016 16 oz. Lens Anti-Fog Solution 981803 Wipe, Anti-Fog (Box of 100) 702031 Neckstrap Kit 702031...
  • Page 9 Figure 2. Opti-Fit APR with Headnet Figure 2. Opti-Fit APR with Headnet Table 1. Cartridges and Filters (S-Series) Table 1. Cartridges and Filters (Threaded Style) (See NIOSH Approval Label for Specific Contaminants) (See NIOSH Approval Label for Specific Contaminants) MODEL FILTERS MODEL FILTERS...
  • Page 10 WARNING Following is a partial list of materials for which these respirators MUST NOT be used. This list is far from complete. Contact Sperian for informa- tion on other materials. The failure to comply with this warning may lead to personal injury, illness, or death.
  • Page 11: And Particulate Filters

    Acroline Carbonyls Hydrogen Selenide Ozone Aniline Cyanogen Methanol Phosgene Arsine Dimethylaniline Phosphine Boron Hydrides Dimethyl Sulfate Methylene Phosphorous Trichloride Chloride, Methyl Bromide, Methyl Chloride Bromine Ethyl Cyanide Nitro Compounds: Stibine Nitrogen Ox- Carbon Dioxide Fluorine Sulfur Chloride idesNitroglycerin- Carbon Monoxide Hydrogen Cyanide Vinyl Chloride NitrobenzeneNi-...
  • Page 12: Cartridge/Filter Installation

    WARNING Filters improperly used or improperly assembled to the facepiece could cause leakage, which could lead to personal injury, illness, or death. C. Cartridge/Filter Installation 1. Ensure that you have the correct cartridge and/or filter type for the contami- nants in your work area. If you are not sure, consult your supervisor or safety professional.
  • Page 13: How To Fit Check The Respirator

    Alternatively, the cartridges may be removed to perform the fit check. If removed, Sperian recommends someone other than yourself reinstall them after a leak-tight fit is achieved. It is difficult for the wearer to reinstall the cartridges without disturbing the facepiece-to-face seal and to determine whether the cartridges are correctly seated against the facepiece.
  • Page 14: How To Use The Respirator

    VIII. HOW TO USE THE RESPIRATOR To receive the maximum protection available from your respirator, you must read, understand, and follow all the Warnings, limitations, and instructions contained in this manual and follow your employer’s instructions on the use and maintenance of the respirator.
  • Page 15: Maintenance

    Sperian recommends, due to considerations of hygiene, that all filters be replaced at least daily, and more often if necessary. Filters should also be replaced in accordance with schedules estab- lished by regulatory agencies.
  • Page 16: Inspection

    NOTE Washing the lens will remove any user-applied anti-fog coating. Recoat with Sperian Anti-fog solution, P/N 951015 (1 oz.), or 951016 (16 oz.), or use Sperian single-use anti-fog wipes, P/N 981803. 8. After cleaning, apply three drops of anti-fog solution as required to the inner surface of the lens and spread with your finger.
  • Page 17: Repair

    WARNING • This SPERIAN respirator does not have a defined storage life. Carefully inspect it before each use. • The failure to comply with this warning may lead to personal injury, illness, or death.
  • Page 18: Additional Information

    LIMITATION OF LIABILITY: No other oral warranties, representations, or guaran- tees of any kind have been made by SPERIAN, its distributors, or the agents of ei- ther of them, that in any way alter the terms of this warranty. EXCEPT AS HEREIN...
  • Page 19: Inspection Table

    XX. INSPECTION TABLE IF ANY OF THE DEFECTS LISTED ARE FOUND, HAVE THE RESPIRATOR REPAIRED BEFORE USE. COMPONENT LOOK FOR FACEPIECE LENS 1. Nicks, scratches, or abrasions which could impair visibility. 2. Deep gouges or cracks which could reduce impact resistance. 3.
  • Page 20: Repair Table

    XXI. REPAIR TABLE COMPONENT INSTRUCTIONS HEADSTRAP REPLACE- 1. Remove the old headstrap from the facepiece, MENT noting the routing of the straps. 2. Install new headstrap. TWIN SEAL/CONNECTOR 1. To remove, rotate the connector clockwise. Lift REPLACEMENT the connector hook and rotate the connector counterclockwise, and pull outward.
  • Page 21 4. Replace the nozzle cover as described above. 5. Perform a facepiece fit check as described in sec- tion VII. ACCESSORIES Each modification kit and accessory purchased from SPERIAN has installation instructions. Use these in- structions for removing and replacing any accessory.
  • Page 22 www.sperianprotection.com...
