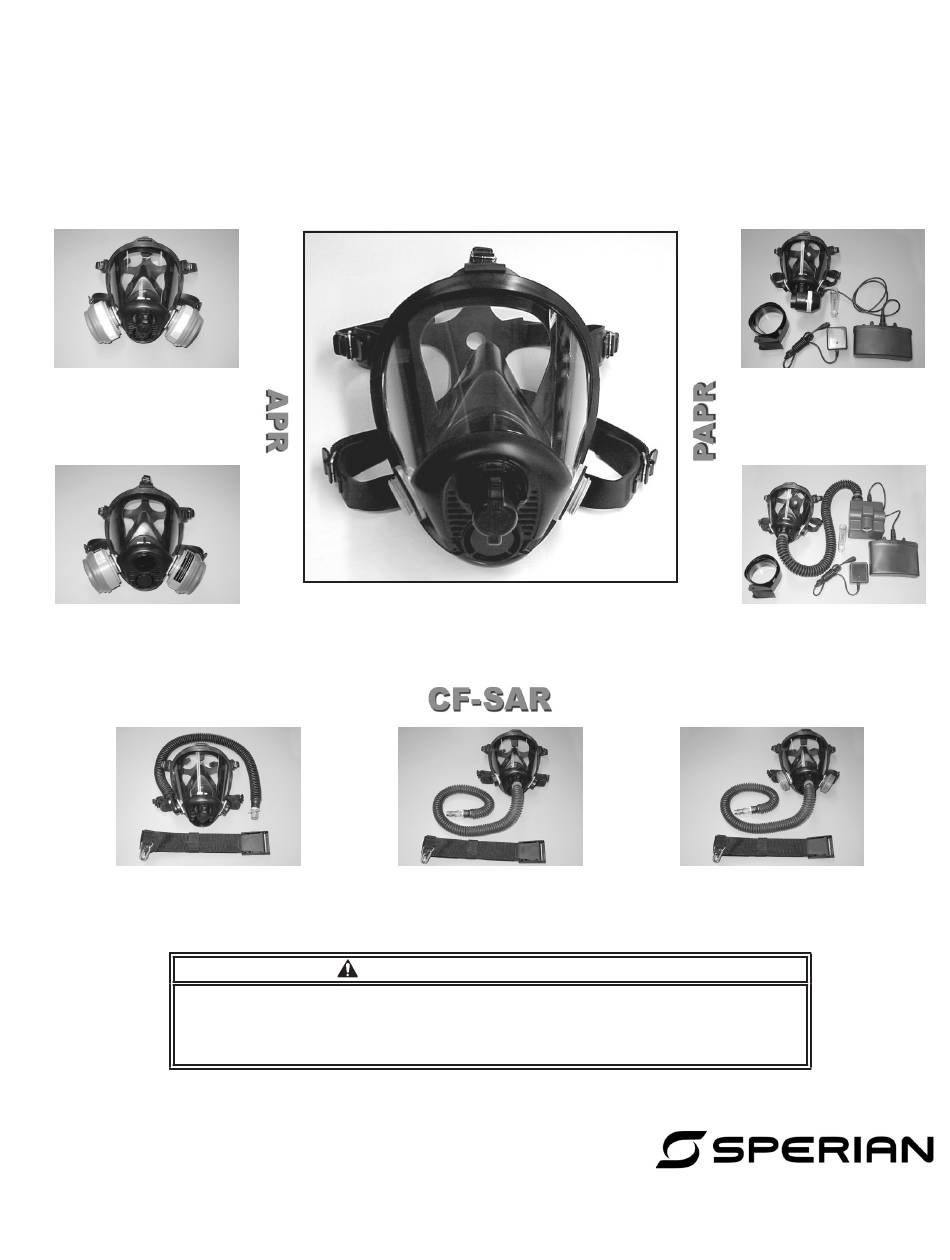

Convertible facepiece. for air purifying respirator (apr), continuous flow supplied air respirator (cf–sar), and powered air purifying respirator (papr) configurations
Table of Contents

Advertisement

for Air Purifying Respirator (APR), Continuous Flow Supplied Air Respirator
(CF–SAR), and Powered Air Purifying Respirator (PAPR) Configurations
Air Purifying Respirator
Front Adapter Cap
Air Purifying Respirator
Low Profile Nozzle Plug
CF-Supplied Air Respirator
Side-mount Breathing Tube
DO NOT USE your respirator until you read and completely understand this
instruction manual. You are required to inspect the adapter prior to putting it
into service. Please refer to the inspection procedures in this manual. Failure
to comply with this warning may result in personal injury, illness, or death.
Copyright SPERIAN Respiratory Protection USA, LLC
©
April 2008 All Rights Reserved
P/N 764099 REV D 03/09
SURVIVAIR Opti-Fit
Models 7540/7640/7740/7541/7641/7741
OPERATION and MAINTENANCE MANUAL
SURVIVAIR Opti-Fit
Convertible Facepiece
CF-Supplied Air Respirator
Front-mount Breathing Tube
Convertible Facepiece
WARNING
AN ISO 9001
REGISTERED
COMPANY
Powered Air Purifying
Respirator Mask-mount Blower
Powered Air Purifying
Respirator Belt-mount Blower
CF-Supplied Air Respirator
P100 Filter Escape
SPERIAN Respiratory Protection USA, LLC
3001 South Susan St., Santa Ana, CA 92704
Toll-Free 888.APR.SCBA or 714.545.0410
Fax 714.850.0299
www.sperianprotection.com
