Handling of electronic type

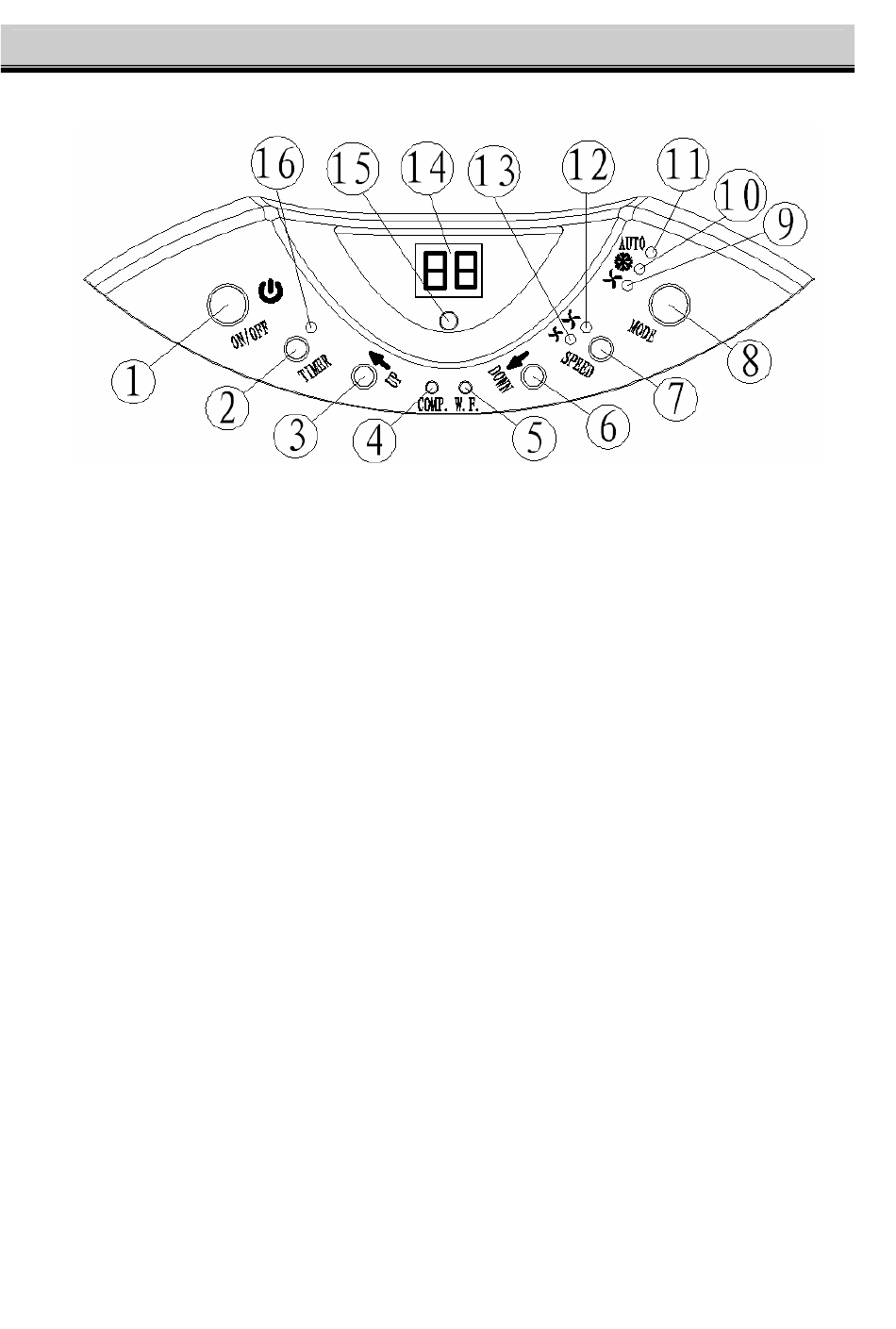

Control panel
1. ON/OFF (power) button
2. Timer
3. 'Temperature up' button
4. Indicator for compressor
5. "Water Full" indicator
6. 'Temperature down' button
7. Speed (ventilation)button
8. Mode (function) option button
Turning ON/OFF
1. Press ON/OFF button, the unit will start automatically. If the ambient temperature is
higher than 23 o C, the unit will work in cooling model.
-
higher than 20 o C but below or equal to 23 o C, the unit will work in ventilation model.
-
below 20 o C, the unit will work in heating function (This is for cooling & heating models only.)
-
2. Indicators of the functions in progress come on at the same time. *NOTE! The display window
shows the ambient room temperature from 0 o C to 50 o C
3. To turn the unit off, press ON/OFF button again.
Setting mode/function
Press MODE button to select required working mode: automatic, cooling or fan. The indicator of
your selected mode comes on.
Setting temperature
1. Press 'Temperature up' or 'Temperature down' button to regulate the temperature you desired.
2. The display window will show the temperature you set as you press 'Temperature up' or
'Temperature down' button. Otherwise, it will always show the ambient temperature.
The pre-setting temperature of this machine is: 24 o C for cooling
3.
,
9. Fan mode indicator
10. Cooling mode indicator
11. Automatic mode indicator
12. High ventilation indicator
13. Low ventilation indicator
14. Display window
15. Receiver for remote control
16. Timer operation indicator
Fig. 12
