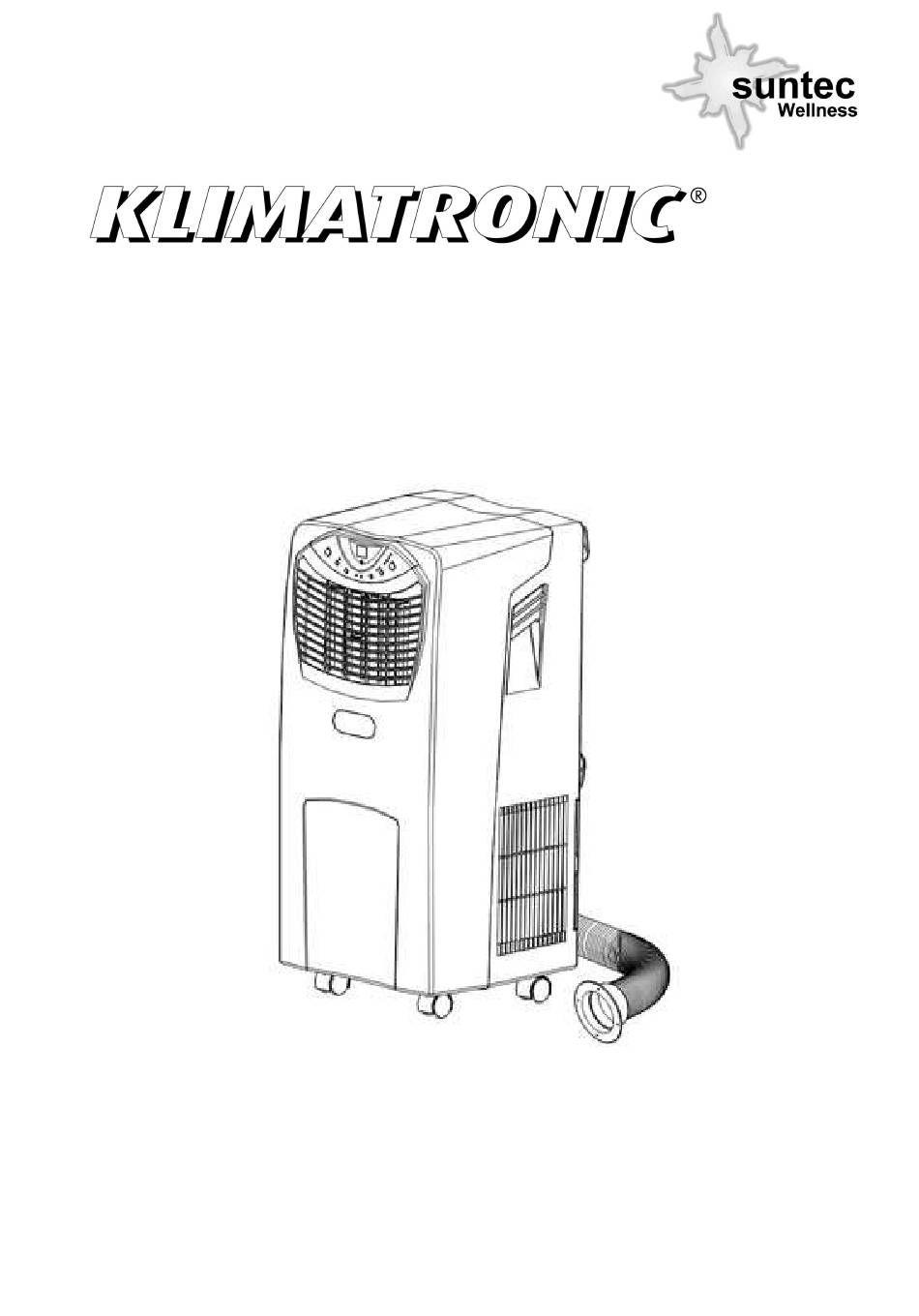

- Page 1 Dynamic ☆ ☆ ☆ ☆ Read and retain these instructions for future reference Dynamic 6.0 plus Dynamic 8.0 plus...
-
Page 2: Specification
SPECIFICATION Model no. Dynamic 6.0 plus Dynamic 8.0 plus Cooling capacity 6000 BTU/h 8000 BTU/h Power/Ampere consumption for 680 W / 3,0 A 800 W / 3.6 A cooling* Air volume (max. speed) 260m 300m Humidity removal capacity 20 l / day 24 l / day Power supply 230V/50Hz/1phase... -
Page 3: Before Use
BEFORE USE CAUTION ! Make sure the unit is connected to a earthed, power supply of the correct rating. (Please refer to the rating label locating at the back side of the unit.) Do not use this product for functions other than those described in this instruction manual. -
Page 4: Energy Save
BEFORE USE If the electrical socket is different from the plug, have a professionally qualified electrician replace the socket with a suitable one. Avoid the use of adapter plugs, multiple sockets and / or extension leads. If their use is necessary, ensure they conform to current safety regulation. - Page 5 Parts Front Back 1. Display window 7. Cord storage 2. Control panel 8. Air filter 3. Buttons 9. Air inlet 4. Air outlet 10. Exhaust air outlet 5. Carrying handle 11. Air inlet 6. Caster 12. Water stopper/drainage point Accessories 13.
-
Page 6: Installation Of The Exhaust Pipe
INSTALLATION Installation of the exhaust pipe This unit is a PORTABLE AIR CONDITIONER. It can be moved from room to room, so the cooling can follow you anywhere. The mounting is easy, beneath a window or wall. Please refer to either of the following steps: 1. - Page 7 INSTALLATION Mounting of the exhaust pipe 1. Use only the hose provided and clip exhaust hose to the back of the air conditioner. It is recommended that you use the hose in the shortest possible length. FIG. 8 2. Avoid kinks and bends in the exhaust hose as this will cause expelled moist air to build up causing the unit to overheat and shut down.
- Page 8 Control panel Fig. 12 1. ON/OFF (power) button 9. Fan mode indicator 10. Cooling mode indicator 2. Timer 11. Automatic mode indicator 3. ‘Temperature up' button 12. High ventilation indicator 4. Indicator for compressor 13. Low ventilation indicator 5. “Water Full” indicator 14.
- Page 9 Press SPEED button to choose the ventilation speed you need, high or low. The indicator of high or low ventilation will light on at the same time. If the unit is in AUTO mode, it will choose the ventilation speed automatically according to the ambient temperature (the related indicators will light on), at this time, the speed switch is invalid.
- Page 10 NOTICE ! To prolong the compressor's life, after switch-off of the unit, please wait for 3 minutes (at least) before re-switch. The cooling system will switch off if the ambient temperature is lower than the set one. The ventilation, however, keeps working on the set level. If the ambient temperature rises above the selected level, the cooling will return to work.
-
Page 11: By Water Tube (Continuous Drainage)
During the process of cooling some water will be extracted from the air into the unit. If the reservoir is full, both the compressor and motor will stop and the units would buzz (you can press any button to stop the buzz), only the fan runs to circulate the air. -
Page 12: Fault Check List
Always unplug the air conditioner from the mains before cleaning. Cleaning the housing Use a soft, damp cloth to wipe the body clean. Never use aggressive chemicals, gasoline, detergents, chemically treated cloths, or other cleansing solutions. These all could possibly hurt the cabinet. Cleaning the filter Use a vacuum cleaner or tap the filter lightly to remove loose dust and dirt from the filters and then rinse thoroughly under running water (no hotter than 40ºC). - Page 13 Is the machine plugged in? Is the house power supply on? Is the ‘FULL WATER’ indicator flashing? The air conditioner does not run (If so, empty the condensed water) Is the room temperature in the working range? Is there direct sunshine? (Please put down the curtain.) Are to many windows or doors open? The machine seems to do little...
