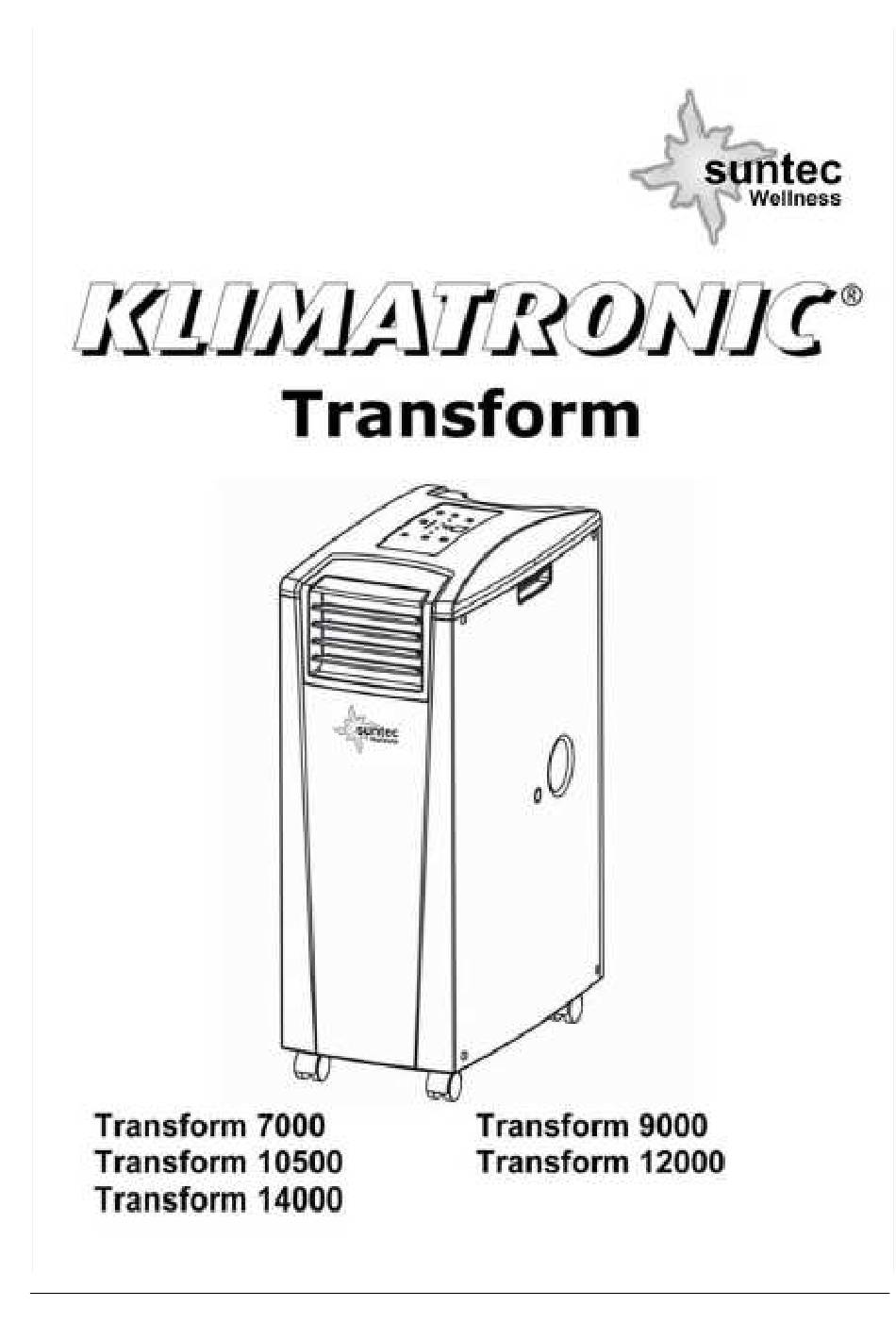

- Page 1 Instruction Manual...
-
Page 2: Introduction / Technical Data
INTRODUCTION / TECHNICAL DATA ® Congratulations on purchasing your SUNTEC WELLNESS KLIMATRONIC TRANSFORM unit. Your air-conditioner has been developed and manufactured in accordance with standards of state of the art technology. Please read the operating instructions carefully before connecting your TRANSFORM unit to the power supply in order to prevent damage from improper use. - Page 3 BEFORE INITIATION 1. To avoid damage, place the TRANSFORM unit in an upright position for at least 24 hours before initiation. 2. Release the holder air hose in the TRANSFORM unit and take out the extract air hose. 3. Fasten the air hose before initiating the TRANSFORM unit. 4.
-
Page 4: Name Of The Components
NAME OF THE COMPONENTS Operating panel Control lamp Air outlet grid Air hose connection piece Air hose Upper condensation water outlet with rubber plug Carrier handles Activated carbon filter top Coarse filter top 10. Filter grid 11. Coarse filter bottom 12. -
Page 5: Operating Panel
OPERATING PANEL DESCRIPTION OF FUNCTIONS 1. [POWER] Press this switch to switch on or off 2. [FUNC] Press this switch to select between the functions “Cooling”, „Heating“ or „Dehumidity“ 3. [TEMP+] Press this switch in the cooling function in order to set the required room temperature by 1°C respectively up to a maximum temperature of 30°... - Page 6 7. [TIMER] Programmable time switch with start and residual time Starting time: This function is used to switch on the TRANSFORM unit automatically when the time entered has expired. Proceed as follows: a) Press [TIMER] switch in Stand-by (TRANSFORM unit is connected but not in operation), to enter the required number of hours after which the TRANSFORM unit is to start.
- Page 7 COOLING We recommend starting TRANSFORM early in the morning on warm days to get a cool room.. This TRANSFORM unit has a self-evaporation function for condensation water, so that it is normally not necessary to empty the water tank in cooling mode. The drainage hose need not be connected. Please make sure that the outlet is closed with the rubber cap during operation.
- Page 8 cooling, we recommend our selection of various accessories which reduce or prevent entry of warm air into the room, or via the remote control. Using the „Comfort Control- S Kit“ you can also control the TRANSFORM unit from inside using the remote control.
- Page 9 HEATING IN OUTDOOR OPERATION The TRANSFORM unit is outside the room to be heated. Outdoor operation is ideal for the transition period in which outside temperatures do no fall below 7° C. (If the outside temperature should however fall below 7° C Connect the air hose and the air outlet grid to the TRANSFORM continuously, we recommend indoor operation).
- Page 10 CLEANING AND MAINTENANCE PLEASE REMOVE THE POWER PLUG FROM THE SOCKET BEFORE CLEANING THE TRANSFORM UNIT. COARSE FILTER The air filters on the side of the TRANSFORM units can be simply removed by pulling the frame sidewards. When cleaning, use a vacuum cleaner with brush or wash the filters under running, warm water and dry them with a soft cloth! Please clean the coarse filters regularly when in use.
- Page 11 TRANSFORM unit On reaching the set required temperature, the deactivates. TRANSFORM unit switches off automatically. Check manual setting of the required temperature as well as the TIMER setting. How is the m² or The m² or m³ data of the manufacturer for the various m³...
- Page 12 You will also find other information (e.g. FAQ, lists of spare parts, document download, etc) about your TRANSFORM unit. Name Description Functional drawing TF Window-Kit Sliding seal of window and connection 4250058312013 adapter for air hose, especially for sliding windows. Air-Block Klima-Sail 4250058312099 Sail which can be used for all types of...
- Page 13 Please ask your local council where your nearest disposal station is located. ® © 2011 KLIMATRONIC TRANSFORM SUNTEC WELLNESS GMBH / HOLZSTRASSE 2 / 40 221 DÜSSELDORF / GERMANY...
