Summary of Contents for Suntec Wellness Klimatronic Advance 2.9 MM plus

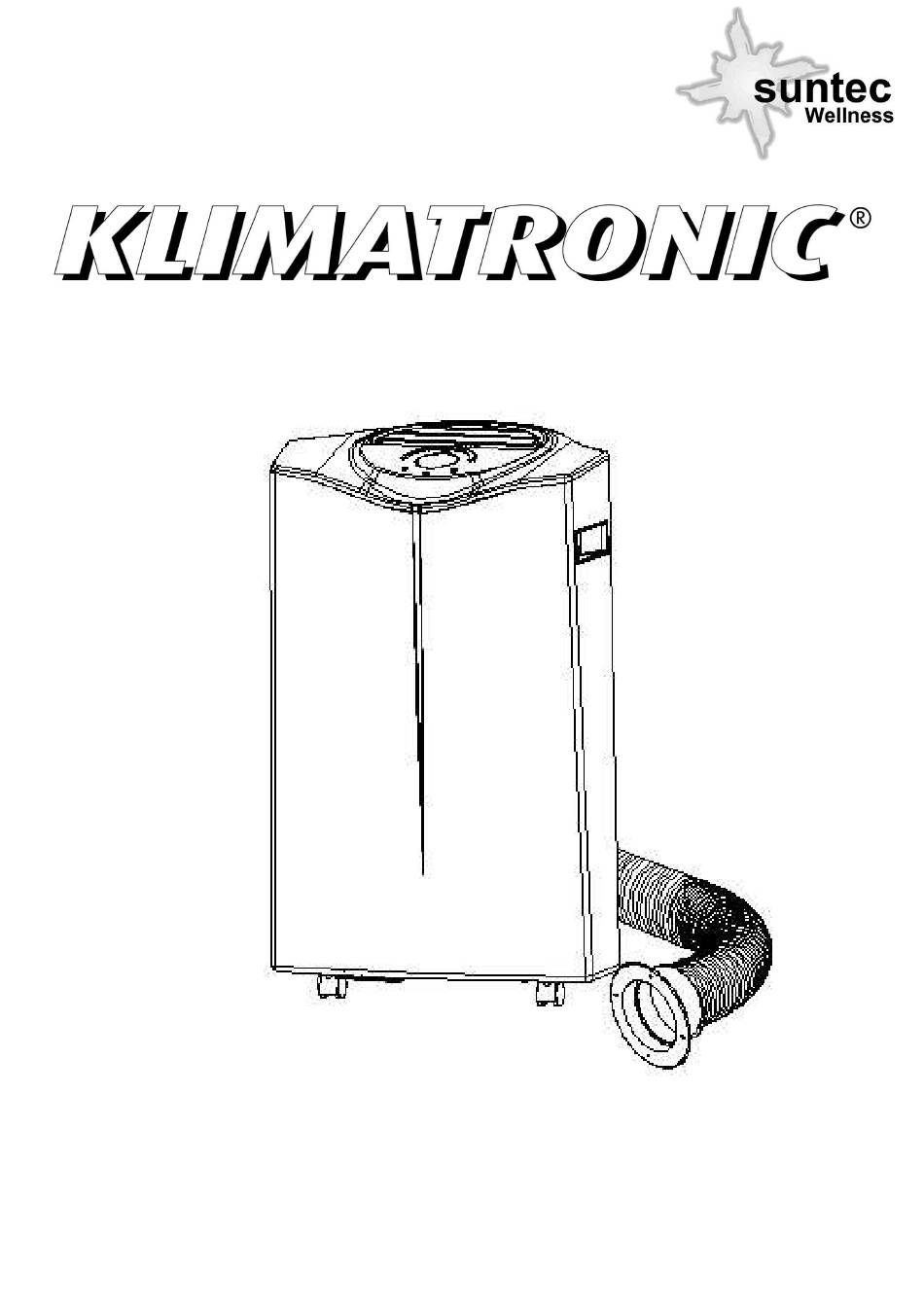

- Page 1 Advance MM Advance 2.9 MM plus Advance 3.5 MM plus ☆ ☆ ☆ ☆ Read and retain these instructions for future reference...
-
Page 2: Specification
SPECIFICATION Advance 2.9MM Advance 3.5MM Model no. plus plus 10000 BTU/hr 12000 BTU/hr Cooling capacity 2520 Kcal/hr 2770 Kcal/hr 2930 watts 3516 watts 1180W/ 5.3A 1500W/ 6.7A Power/Ampere consumption for cooling* Air volume (max. speed) 420m 500m Humidity removal capacity 1,8 L/h 2,0 L/h Power supply... -
Page 3: Before Use
BEFORE USE GENERAL SAFETY • ONLY USE IN THE UPRIGHT POSITION ON A FLAT LEVEL SURFACE AND AT LEAST 36cm FROM ANY OBJECTS (Fig 1 & 4). • DO NOT PLACE OBJECTS ON THE UNIT OR RESTRICT AIR INLET / OUTLET (FIG. - Page 4 PARTS Front Back Control Panel Air filter Air outlet Air inlet Carrying handle Exhaust air outlet Caster Cord storage Water stopper / drainage point Accessories 10. Inward adaptor, piece 2 - for insertion over hose and connection with piece 1. 11.
-
Page 5: Installation
INSTALLATION Installation of the exhaust pipe The unit is a portable air conditioner that may be moved from room to room. 1. Using the foam strips Foam strips FIG.5 • Offer foam strips to the window gap and cut to size if necessary. •... - Page 6 Mounting of the exhaust pipe • Use only the hose provided and clip exhaust hose and unit adaptor to the back of FIG.8 the air conditioner • Avoid kinks and bends in the exhaust hose as this will cause expelled moist air to build up causing the unit to overheat and shut...
- Page 7 Installation of the carbon filter Remove the filter frame from the unit. Separate the filter fixer from the filter frame. Remove the active carbon filter from its plastic bag. Insert the active carbon filter into the filter frame. Fix the filter by reassembling the fixer onto the filter frame.
- Page 8 OPERATION for electronic type Control panel FIG.12 1. ON/OFF (power) button 12. Receiver for remote control 2. Sign for dehumidification/water full 13. Timer display 3. Sign for fan (ventilation) 14. “Temperature up”button 4. Mode button 15. Timer 5. Sign for heat function 16.
- Page 9 Indicators of the functions in progress come on at the same time. *NOTE! The display window shows the ambient room temperature from 0 C to 50 To turn the unit off, press ON/OFF button again. Setting mode/function Press MODE button to select required working mode: automatic, cooling, fan, dehumidification or heating, (Heating is only available for heating &...
- Page 10 In sleep mode, the ventilation will keep at low speed. Re-press the SLEEP button, the setting temperature and ventilation speed will return to the pre-selected one. The unit will shut down automatically after the SLEEP function running for 12 hours. Please note, the sleep function is not available while the machine is working in ventilation, dehumidification or auto mode.
- Page 11 Self-diagnosis This machine is equipped with self-diagnosis function. If something is wrong in the machine, the LCD will show the word “E1” or “E2”. As this time, please call your service centre. All the above functions can also be performed with the supplied remote control.
- Page 12 DRAINAGE During the process of cooling, some water will be extracted from the air into the unit. If the reservoir is full, both of the compressor and motor will stop. The “water full” sign will light on, also the machine will beep as reminder. To make the cooling work again, please empty the water by one of the following ways: Turn off the air conditioner and avoid moving it when full.
- Page 13 • The drain tube may be extended by adding an extension tube and using a suitable connector. FIG.16 Please note The drain must be at or below the outlet level. Flashing comp / ‘full water’ indicator will not function in this mode of drainage.
-
Page 14: Maintenance
MAINTENANCE Always unplug the air conditioner from the mains before cleaning. To maximize the efficiency of the air conditioner clean regularly. Cleaning the housing Use a soft, damp cloth to wipe the body clean. Never use aggressive chemicals, gasoline, detergents, chemically treated cloths, or other cleansing solutions. -
Page 15: Fault Check List
FAULT CHECK LIST The air conditioner does not run Is the air conditioner plugged in? Is there a power failure? Is the comp / ‘full water’ indicator flashing? Is the room temperature below the set temperature? The machine seems to do little Is there direct sunshine ? (Please put down the curtain.) Are too many windows or doors open?
