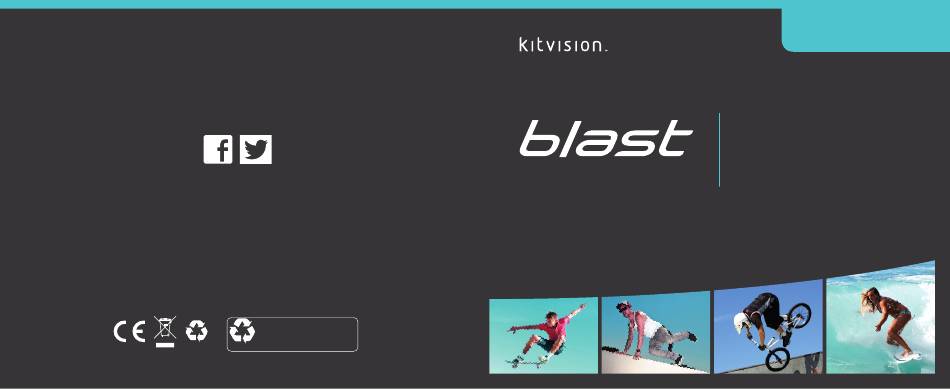

- Page 1 A c t i o n c A m e r A kitvision.co.uk Do not dispose of Lithium Polymer batteries with general waste. Please return it to battery recycling collection point Li-PO JB. 2832 © Kitvision 2013. Christchurch, Dorset. BH23 4FL ™...
- Page 2 With a wide range of cameras and accessories, Kitvision is here to help you record your memories. We’re committed to developing the very latest technologies so you can capture, re-live and share your experiences in the best way possible. By remembering the past and embracing the future, our vision is for every single...
-
Page 4: Table Of Contents
Main features • HD 720p @ 30 FPS • 5 Megapixel photo mode • 140° wide angle lens • Waterproof up to 10 metres Contents Box contents Main features Box contents 1. Kitvision Blast Action Camera Functions 2. Camera Holder Using the camera 3. Universal Mount 4. Grip Mount Connecting the camera 5. Rechargable Battery Mounting the camera 6. Adhesive Stickers x 2 Specifications 7. USB cable Care and maintenance 8. Hand Safety Strap... -
Page 5: Functions
Functions LED Status Table Green LED Red LED Blue LED 1. LED Standby 2. Power/Shutter Battery charging 3. Rear Cap 4. Photo/Video Mode Switch Taking video flashing 5. USB Port Taking photo flashing 6. Micro SD Card Slot Low battery flashing 7. Rechargable Battery 8. Microphone No micro SD card asynchronous flashing Micro SD card full speedy synchronous flashing Data transfer... -
Page 6: Using The Camera
Press and hold the Power/Shutter (function 2) button until the LED flashes red. The camera to 32 kilobytes (KB) otherwise the camera may not recognize the Micro SD card. will then turn off. 4. I nsert a Micro SD card (up to 32 GB) into the slot. To insert the Micro SD card, slide the Micro SD card into the card slot on the back of the camera with the card label facing Setting date & time down. The Micro SD card will click into place. Download the “time.txt” file from: kitvision.co.uk/product/KVBLAST3000BK Charging the battery Open the file “time.txt” and change the date & time as follows: YYYY.MM.DD hh:mm:ss Unscrew the rear cap on the back of the camera (function 3) and plug the USB charger Y = year h = hours into the camera. The blue light will be on while charging. The light will turn off when the... -
Page 7: Connecting The Camera
Taking a video Connecting the camera • T o take videos with the camera, make sure that the Video/Photo switch (function 4) is Unscrew the rear cap (function 3) then turn on the camera. Connect the USB cable to the set to the right for video mode then turn on the camera camera (function 5) and a PC or Mac. The camera will be recognised automatically as a • O nce the camera is on, press (not hold) the Power/Shutter button (function 2) to start USB Device on a PC or an external hard drive on a Mac. Alternatively you can remove the recording. The red LED will blink whilst the video is recording. Press the Power/Shutter Micro SD card from the camera and use a card reader. button (function 2) again to stop recording Important tip for Mac users When deleting files from a micro SD card, you must empty the trash before removing or Taking still pictures unplugging the camera. If you do not empty your trash the photos and videos files will • T o take still pictures with the camera, make sure that the Video/Photo switch not be completely erased from the micro SD card. -
Page 8: Mounting The Camera
Mounting the camera Caution: Using Kitvision Blast for watersports • P lease ensure the O-rings are clean and have some silicon grease on prior to use Mounting the camera to handlebars with watersports • A lso make sure the waterproof cap is properly sealed If these checks are not completed, it is likely that water will get into the camera. Camera Holder Grip Mount ➤ ➤ ➤ Waterproof Cap Silicon Grease O-ring Mounting the camera to a non-vented helmet Note After each use in salt water, you will need to rinse the outside of the product and the seal with clean, salt-free water, and dry. -
Page 9: Specifications
Specifications Storage chart Sensor ¼" HD CMOS sensor Digital photos HD video recording Lens 140° wide angle lens 4 GB 8 GB 16GB 32 GB 4 GB 8 GB 16GB 32 GB f/2.4, fixed focus glass lens 720p: 1280 x 720 pixels, 30 FPS 8388 16776 33552 67104 40 mins 80 mins 160 mins 320 mins Light sensitivity: 1.4 V/lux-sec (550nm) Video Format: MJPG codec, AVI System requirements Exposure control: Auto White balance: Auto Operating system Window ME/2000/XP/Vista/7, Mac OS X 10.6 or above Resolution: 5 megapixel: 2560 x 1920 pixels... - Page 10 Trademark information FCC Statement • Microsoft® and Windows® are U.S. registered trademarks of Microsoft Corporation Caution Statement • iPhone, iPad, Macintosh is a trademark of Apple Inc “Modifications not approved by the party responsible for compliance could void the user’s • SD, SDHC, micro SD HC logos are trademarks of SD-3C, LLC authority to operate the equipment.” • O ther names and products may be trademarks or registered trademarks of their Instruction Statement respective owners NOTE: T his equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential Important installation. This equipment generates, uses and can radiate radio frequency energy • Keep the lens clean. Dirt and fingerprints will affect the quality of the picture and, if not installed and used in accordance with the instructions, may cause • S crew the rear cap on properly to ensure a waterproof seal. Do not open cap...
