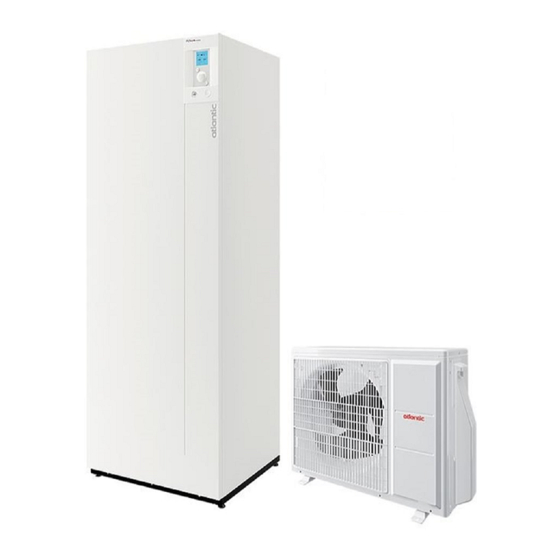

- Page 1 Heat pumps & boilers OPERATING MANUAL Alféa Extensa A.I. R32 Alféa Extensa Duo A.I. R32 Air/water split heat pump U0671225_2111_EN_3 Intended for professionals and the user 26/06/2020 To be kept by the user for future reference...
-
Page 2: Table Of Contents
Contents Safety instructions Overview of installation Precautions and warnings about your installation . 4 Overview of the installation ....5 Appliance end-of-life ..... . . 5 Carrying out the installation User Interface . - Page 3 Safety instructions Please comply with the following instructions in order to avoid any risk of injury or inappropriate use of the appliance. Commissioning Do not switch the appliance ON until every fi lling operation has been performed Do not attempt to install this appliance yourself. This heat pump must be installed by qualifi ed personnel holding a certifi...
- Page 4 Your installation ► ► Outdoor unit Radiators The outdoor unit, as its name suggests, is placed outside In order to ensure operation of the control system, your dwelling, and extracts energy from the outside air. the room containing the thermostat must not also contain a thermostatic valve.
-
Page 5: Appliance End-Of-Life
Control options and/or Room Heating circuit Room sensor Outside underfl oor heating Menu sensor sensor A75 or A78 Options depending on hydraulic confi gurations Radiators heating circuit circuit kit Boiler Boiler connection kit Hydraulic unit Outdoor unit * depending on confi guration / option fi... -
Page 6: Carrying Out The Installation
Carrying out the installation ► User Interface 15:23 7 September 2017 15:23 7 September 2017 12° 12° 21,5 21.5 19.5 19,0° 19,0° 19,0° Zone 1 Zone 2 MENU MENU 1 heating circuit version 2 heating circuit version + domestic hot water (DHW)* + domestic hot water (DHW)* Reference Description... -
Page 7: Display Description
► Display Description 15:23 7 September 2017 12° 21.5 19.5 19,0° 19,0° Zone 1 Zone 2 N° Symbols Defi nitions N° Symbols Defi nitions Mode ... 15:23 Time Comfort 07 September Date 2017 Manual (exemption) Temperature measured by the room 21.5 sensor* 19,0°... -
Page 8: Navigating The Menus
► Navigating the Menus To ... Action: Press Access the menu MENU Turn the knob to highlight your choice. Choose a menu item Press the knob to accept. Press Return to the previous menu Press twice. Return to the main menu MENU Press on the main menu. -
Page 9: Menu Structure
► Menu Structure Zone 1 Manual mode page 10 Zone 2 Hot water Absence page 12 Active functions page 13 Zone 1 Temperature setting page 13 Zone 2 Programming Heating page 14 Zone 1 Zone 2 Cooling Heating Energy consumption page 15 Daily cons. -
Page 10: Manual Mode
► Manual mode ▼ Derogation from timer program When a timer program is active (advanced menu), an exemption allows you to force the appliance into operation ("Heating" or "Cooling") at the desired temperature for a certain duration. ■ From the welcome screen 15:23 07 September 2017 12°... - Page 11 ▼ Cancelling an derogation from timer program ■ Cancelling an derogation with 1 heating zone 15:23 07 September 2017 12° --,- From the welcome screen, select: 24,0° "Stop the derogation". for a duration of:: 9 hrs 55 m Stop the derogation ■...
-
Page 12: Absence
► Absence In the event of a prolonged absence, you can set a period in which the heating operates at a reduced temperature (except for frost) and the production of domestic hot water (DHW) is stopped. ▼ Programming absence mode Absence Departure date: July... -
Page 13: Active Functions
► Active functions The "Active Functions" page tells you which services are operating and allows you to change their status. Active functions Indoor comfort Heating - "Indoor comfort": Heating / Cooling / Stop. - "Zone 1" / "Zone 2" / "Hot water" / " Emergency operation": ON / Stop. Zone 1 If "Indoor Comfort"... -
Page 14: Programming
► Programming A timer program allows you to defi ne the appliance's automatic operation periods (Comfort ↔ ECO) Each day can be set independently. ▼ Creating a timer program - Choose "Heating" or "Cooling" as well as the appropriate zone by accessing the menu: "Programming"... -
Page 15: Energy Consumption
► Energy consumption Consumption can be displayed per usage: Daily cons. - Heating (Zones 1 and 2). Heating - Cooling. 20kW.h - Domestic Hot Water (DHW). - Total (Heating + Cooling + Hot Water). This information is available for: - the last 8 days: daily consumption (Tdy = Today, D-1 = yesterday, etc.). - the last 12 months: monthly consumption (Initial letter of month. - Page 16 ▼ Advanced/simplifi ed menu Two display modes for menus and appliance functions are available: - Advanced menu: - The appliance follows the timer programming defi ned in paragraph , page 14. - Simplifi ed menu*: - The appliance operates at a constant temperature set directly by the user. - Some functions are no longer accessible.
- Page 17 ▼ Connectivities ■ Pairing a room sensor: Settings Connectivities To connect a room sensor, go to the menu: Connection "Settings" > "Connectivities" > "Connection". The appliance waits for pairing for 10 minutes. See the room sensor's installation instructions. The "Connection" menu is no longer accessible if a sensor has already paired. Quit ■...
-
Page 18: Regular Checks
Maintenance In order to ensure that your appliance operates correctly for many years, the maintenance operations described below are required periodically. They are generally carried out as part of a maintenance contract. ► Regular checks Check the water pressure in the heating circuit regularly (refer to the installer's recommended pressure - between Screen 1 and 2 bar) -
Page 19: Error Messages
► Error messages 15:23 7 September 2017 12° --,- 24,0° If a fault occurs, the error number appears on the welcome screen. Error XXX Error To obtain the error's designation, select it using the knob. 138: HP controller sensor missing In the event of an error, note down the number and consult your heating engineer. - Page 20 Commissioning date: www.atlantic.fr Société Industrielle de Chauffage Contact details of your heating engineer or After Sales service. SATC - BP 64 - 59660 MERVILLE - FRANCE...
