Summary of Contents for Level Pro 250B Series

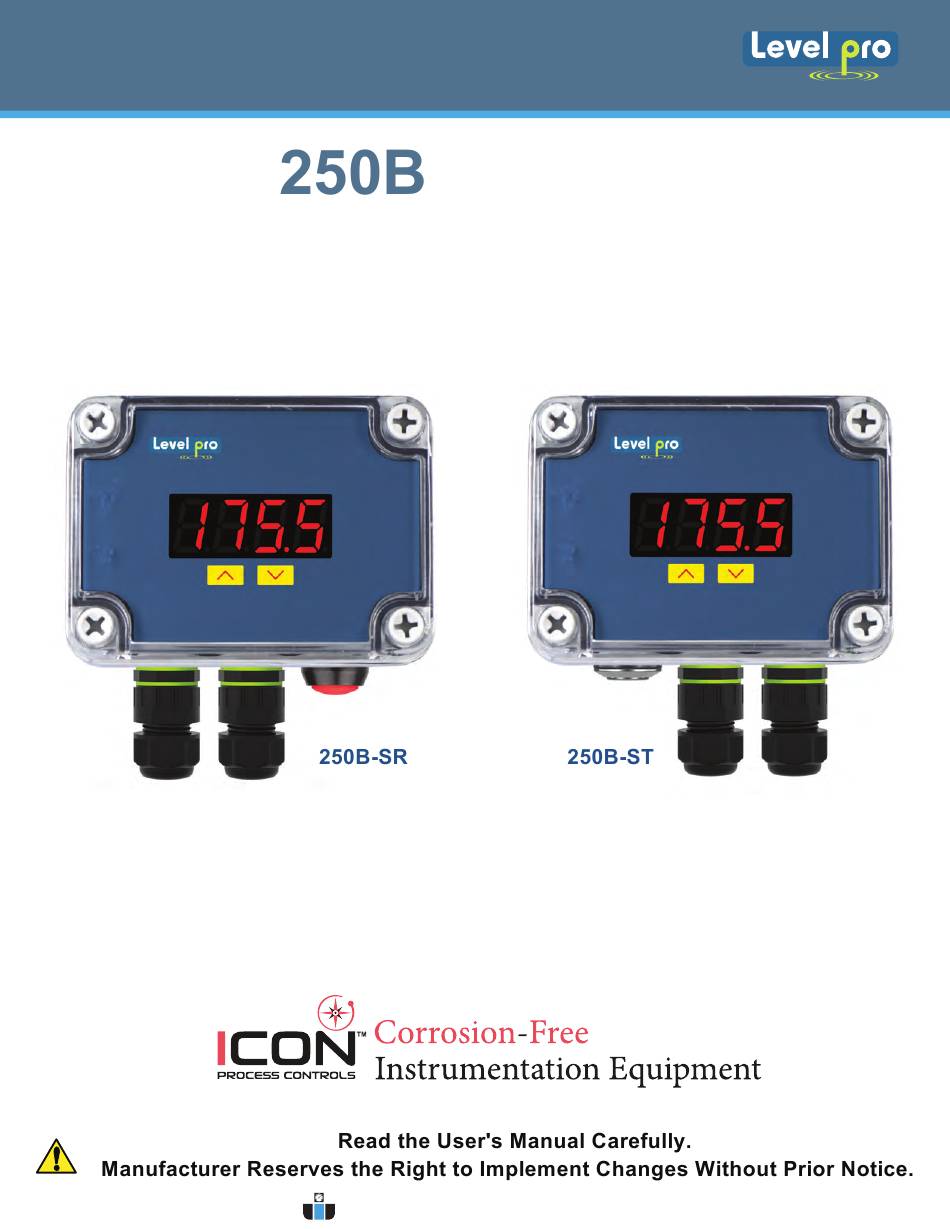

  • Page 1 250B SERIES Level Process Display SERIES INSTRUCTION MANUAL 1.800.544.2843 www.calcert.com sales@calcert.com...
  • Page 2 250B SERIES Level Process Display Corrosion Large Bright NEMA 4X High Resistant Led Display Impact Enclosure FEATURES Battery Powered • • Momentary or Adjustable Relay Timer * • NEMA 4X Enclosure • LED Display • All Plastic - Corrosion Resistant •...
  • Page 3 250B SERIES Level Process Display Step-by-Step Programming | Tank Level STEPS DISPLAY OPERATION Step-1 Press Up + Down Press and hold both buttons Buttons Together to enter the menu Press Step-2 Release Buttons Enter Pass Code 1234 Step-3 Using the UP arrow, press 4 times until...
  • Page 4 ITC-250B SERIES Battery Powered Level Display 250B-SO (Sensor Only) WIRING DIAGRAM Battery Display Cable Gland Button ORDERING Part Number Input Battery Life ITC250B-SO-4 4-20mA 4000 mA h 100 Series Sensor ITC250B-SO-8 4-20mA 8000 mA h 250B-ST (Sensor + Telemetry) WIRING DIAGRAM...
  • Page 5 ITC-250B SERIES Battery Powered Level Display 110.15 250B-SO (Sensor Only) 92.15 DISPLAY PRESS BUTTON SWITCH QUICK DISCONNECT 110.15 250B-ST (Sensor + Telemetry) 92.15 DISPLAY 4.30 QUICK DISCONNECT LATCHING PUSH BUTTON 250B-SR (Sensor + Relay) 1.800.544.2843 www.calcert.com sales@calcert.com...
  • Page 6 ITC-250B SERIES Battery Powered Level Display Step-by-Step 1.800.544.2843 www.calcert.com sales@calcert.com...
  • Page 7 ITC-250B SERIES Battery Powered Level Display Step-by-Step 1.800.544.2843 www.calcert.com sales@calcert.com...

This manual is also suitable for:

250b-sr250b-st
