Rockford Fosgate ELEMENT READY M5 Quick Start Manual

IN
FRONT REAR SUB
C.L.E.A.N. C.L.E.A.N. C.L.E.A.N.
OUT OUT OUT
MIN MAX MIN MAX MIN MAX
OFF OFF OFF
INPUT LVL INPUT LVL INPUT LVL
ON ON ON
MIN MAX MIN MAX MIN MAX
OFF
PUNCH EQ PUNCH EQ PUNCH EQ
LP
LP
Hz Hz Hz
AP AP
80 200 80 200
80 200
HP
HP
ON
50 250
50 250 50 250
PWR
FREQ FREQ FREQ
The PRESET switch disables the control panel and sets this amp for the best sound to be used with your ROCKFORD
FOSGATE stage kit audio system. Turn the switch OFF to manually adjust this amp.
M5-800X4
Rockford Fosgate Stages 3 & 4 SXS kits
Front Level - 1 O'Clock
Rear Level - 3 O'Clock
Front/Rear EQ - MIN
Input Switch - 4CH*
Front/Rear Crossover - 80Hz
Front X-over Switch - HP
Rear X-over Switch - LP
* Input switches are not controlled via preset switch.
A 3
B
D 2
M5-1500X5
C
IN
FRONT REAR SUB
C.L.E.A.N. C.L.E.A.N. C.L.E.A.N.
OUT OUT OUT
MIN MAX MIN MAX MIN MAX
INPUT LVL OFF INPUT LVL OFF INPUT LVL OFF
ON ON ON
MIN MAX MIN MAX MIN MAX
PUNCH EQ PUNCH EQ PUNCH EQ OFF
LP
LP
Hz
Hz AP Hz
AP
80 200 80 200 80 200
HP HP
ON
50 250 50 250 50 250
PWR
FREQ FREQ FREQ
PRESET SETTINGS
M5-1000X1 M5-1500X5
Sub Level - 3 O'Clock Rockford Fosgate Stage 5 SXS kit
Punch EQ - MIN Front /Rear Level - 1 O'Clock
Sub X-Over Switch - 80Hz Sub Level - 3 O'Clock
Front/Rear/Sub Punch EQ - MIN
Front/Rear/Sub Crossover - 80Hz
Front/Rear X-over Switch - HP
Sub Input - ON*
Input Switch - 2CH*
A 4
D 3
D 1
A 2
A 1

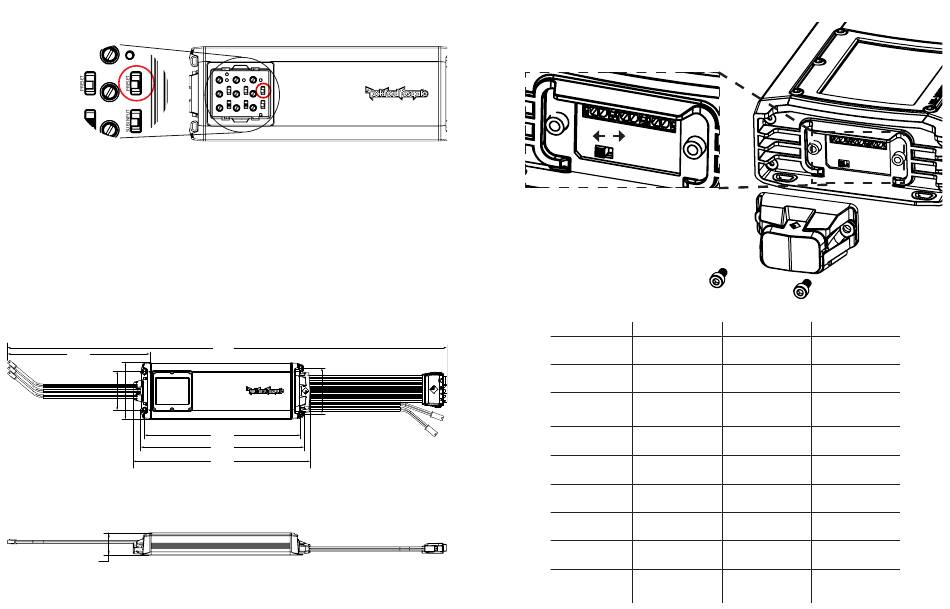

How to adjust 2 channel mode or 4 channel mode on M5-1500X5
2
4
CH
CH
The M5-1500x5 comes in 2 channel mode.
1. Using the included 3mm wrench, remove the 2 screws
holding the input wire harness on the control panel side
of the amp.
2. Pull the harness straight out.
3. Flip switch to the right for 4 channel mode.
4. Re-install the harness. Be sure that the gaskets and
O-rings are not damaged before re-installing the harness
Model M5-800X4
9.7"
A1 - Overall Amplifier
Length (245.9mm)
8.4"
A2 - Chassis Length
(213mm)
A3 - Harness Length
12"
(Input/Output are the
(304.8mm)
same length)
A4 - Total Length of 33.7"
(855.5mm)
Amplifier
4.25"
B - Chassis Width
(108.1mm)
1.7"
C - Chassis Height
(42.7mm)
7.8"
D1 - Mounting Length
(198.7mm)
2.9"
D2 - Mounting Width
(74.5mm)
D3 - Mounting Width
N/A
(Input side, M5-
1500X5 ONLY)
M5-1000X1 M5-1500X5
9.7" 13.4"
(245.9mm) (339.7mm)
8.4" 12.3"
(213mm) (311.4mm)
12" 12"
(304.8mm) (304.8mm)
33.7" 37.4"
(855.5mm) (949.3mm)
4.25" 4.25"
(108.1mm) (108.1mm)
1.7" 1.7"
(42.7mm) (42.7mm)
7.8" 11.8"
(198.7mm) (299.2mm)
2.9" 2.9"
(74.5mm) (74.5mm)
3.4"
N/A
(86.5mm)
