iDataLink Maestro Ar Install Manual
  1. Manuals
  2. Brands
  3. iDataLink Manuals
  4. Automobile Accessories
  5. Maestro AR
  6. Install manual

iDataLink Maestro Ar Install Manual

Ford mustang with oem amplifier 2015-2020
Hide thumbs Also See for Maestro Ar:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
SELECT VEHICLE
PRINT PAGES NEEDED
HOW TO USE THIS INSTALL GUIDE
1
Open the Bookmarks menu and find your vehicle OR scroll
down until you find the install guide for your vehicle.
2
Print only the pages for your vehicle using the advanced
options in the Print menu.
3
Install your Maestro AR according to the guide for your vehicle.
Pressing the printer icon or "quick printing" this document will print
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in
are the properties of their respective owners.
WARNING
all of the guides in this compilation.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Maestro Ar and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iDataLink Maestro Ar

Summary of Contents for iDataLink Maestro Ar

  • Page 1 Print only the pages for your vehicle using the advanced options in the Print menu. Install your Maestro AR according to the guide for your vehicle. WARNING Pressing the printer icon or “quick printing” this document will print all of the guides in this compilation.

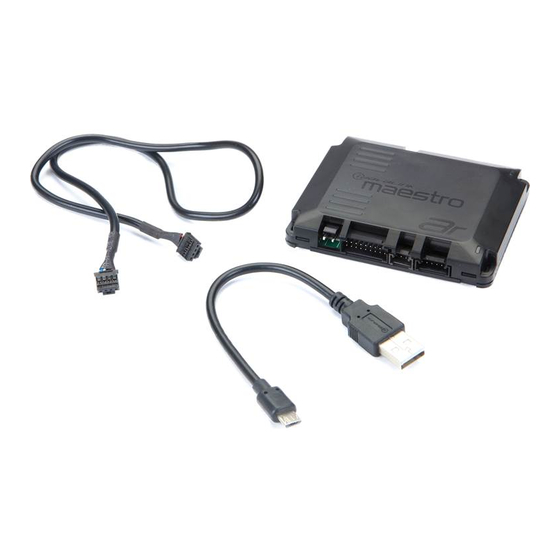

  • Page 2 OPTIONAL ACCESSORIES PROGRAMMED FIRMWARE ADS-AR-FOR03 iDatalink Maestro AR Amplifier Replacement Interface iDatalink Maestro aFO3 Installation Harness Adapter harness and DM Link provided by Audio Control NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here...
