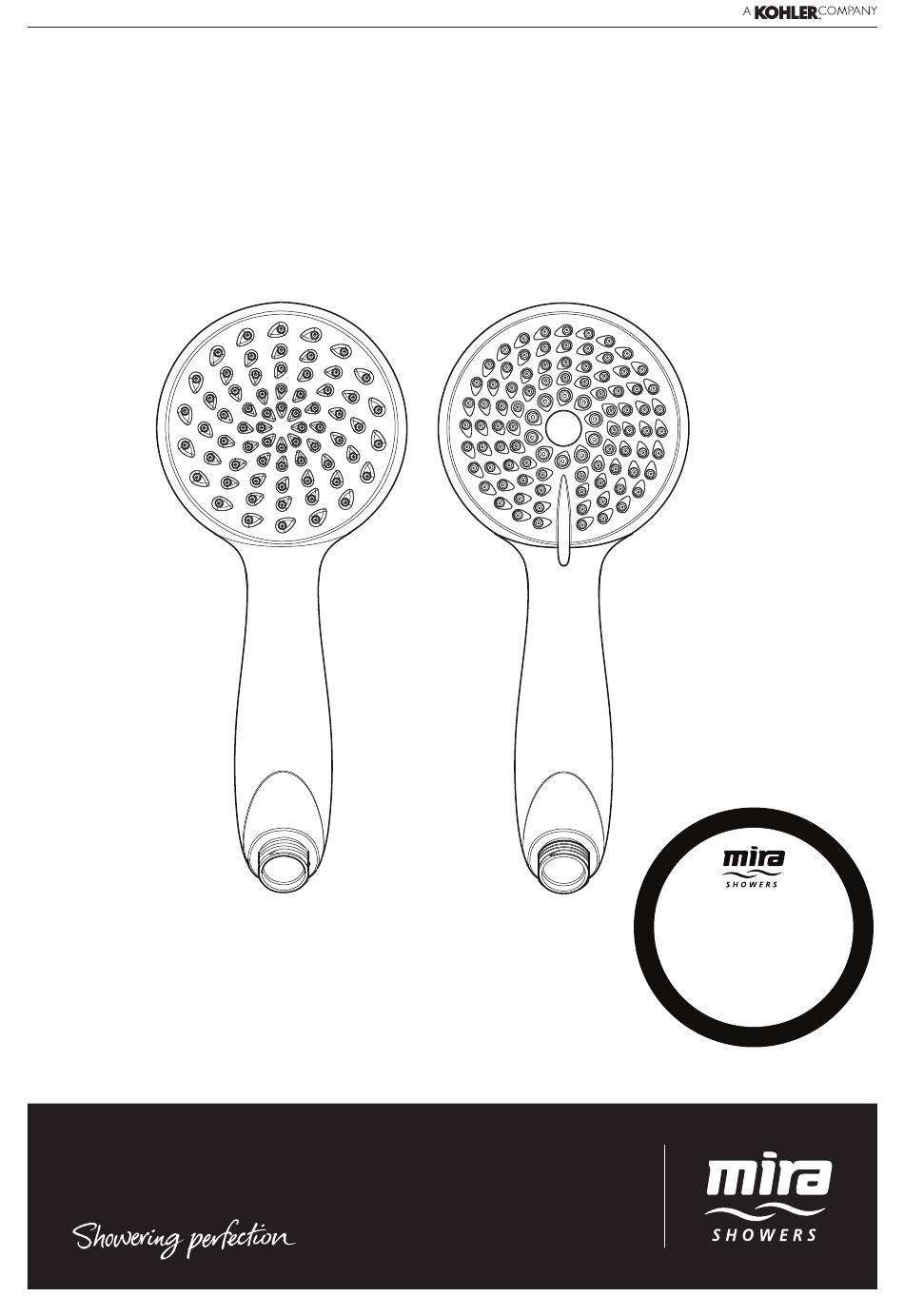

- Page 1 Mira Nectar Showerheads Single Spray 1703.001, 1703.003 Adjustable Spray 1703.002, 1703.004 For SPARES, ADVICE or REPAIRS Please call us on 0844 571 5000 (UK Only) These instructions must be left with the user Installation and User Guide...
- Page 2 INTRODUCTION The Mira adjustable showerhead has four different spray actions. The Mira single mode showerhead has one spray action. Both the adjustable and single mode showerheads are suitable for most mixer showers and for electric showers. The Mira adjustable and single mode showerheads are available in white and chrome.
- Page 3 DIMENSIONS 90 mm 137 mm 38° 193 mm SPECIFICATION Minimum pressure: 0.1 bar. Maximum pressure: 5.0 bar. Exceeding the stated maximum static pressure could result in excessive spray force and damage to the showerhead. The graphs below show flow rate of the Nectar single mode showerhead and the Nectar multi mode showerhead. Nectar Single Mode Showerhead Nectar Single Mode Pressure (kPa)
- Page 4 Nectar multi mode Showerhead Mode 1 Mode 3 Mode 4 Mode 2 Pressure (kPa) INSTALLATION General Installations must comply with Water Regulations (Bye-Laws, Scotland), and any other Local Regulations and Building Regulations in force at the time of installation. Before installation carefully inspect the product for any signs of damage. A hose retaining ring must be used to stop the showerhead from dropping below the spill-over level of the bath or shower tray.
- Page 5 Installation Unscrew the existing showerhead from the flexible shower hose. Note! The hose and showerhead may have water in them. Note! If there is a hose washer, be Showerhead careful to retain it. If there is a hose washer, re-fit Hose the washer and screw the new Washer showerhead into the flexible shower hose.
- Page 6 CLEANING Daily Cleaning Many household cleaners contain abrasives and chemical substances, and should not be used for cleaning plated or plastic fittings. These finishes should be cleaned with a mild washing up detergent or soap solution, and then wiped dry using a soft cloth. Use your thumb or a soft cloth to wipe any limescale from the soft nozzles and the front surface of the showerhead sprayplate.
- Page 7 ACCESSORIES Flow Regulator (12 L/min - Red) - Checkvalve - 1688.282 1641.059 To comply with UK Water Regulations you must make provision to prevent If your shower has no flow control, you the backflow of waste water through may find operation of the shower on high the shower. pressure systems too forceful.
- Page 8 (excludes Eire). Ring 01922 471763 for more details. Mira is a registered trade mark of Kohler Mira Limited. The company reserves the right to alter product specifi cations without notice. FM 14648 © Kohler Mira Limited, June 2012 1143928-W2-B...
