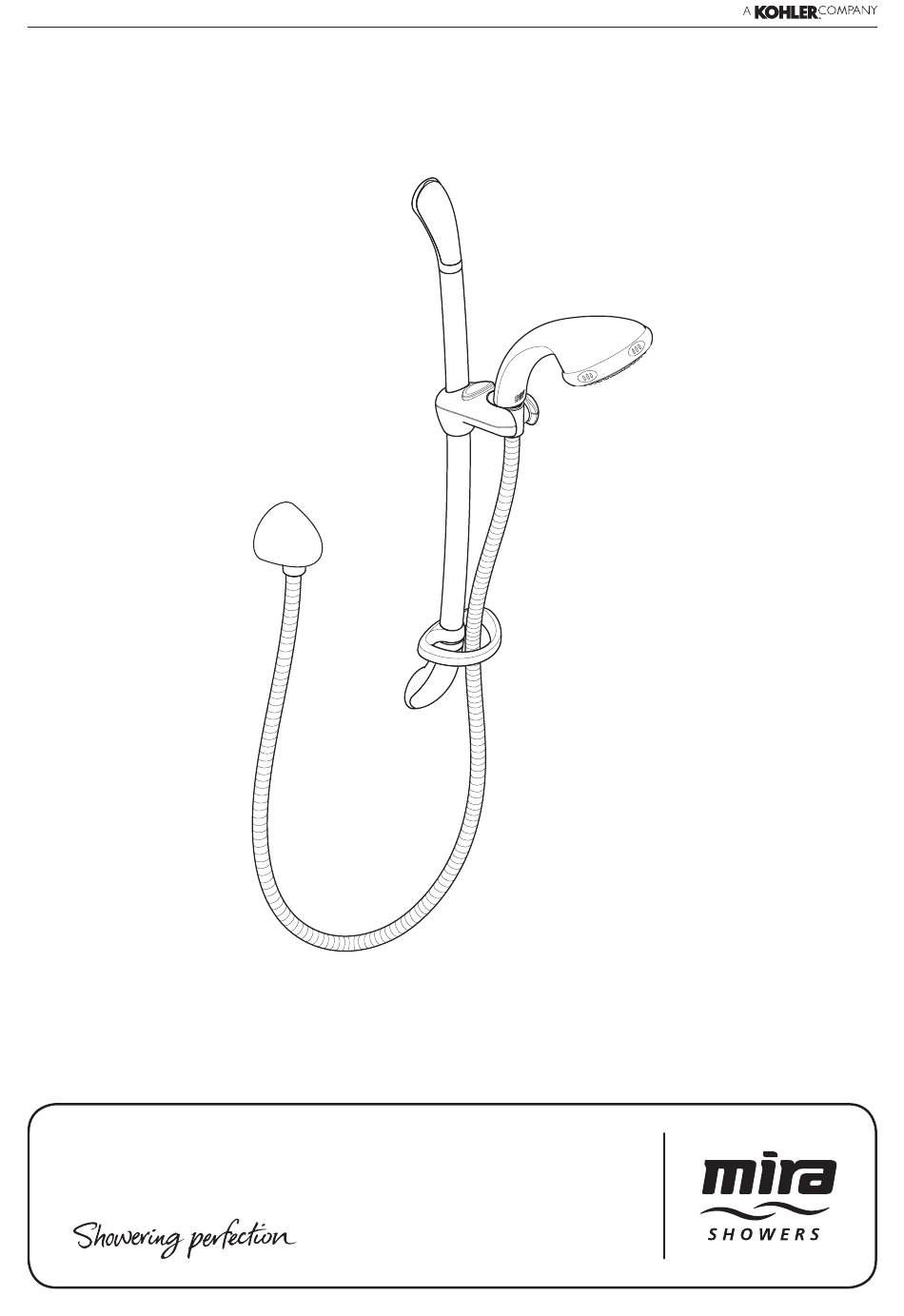

Mira Logic Shower Fittings
Adjustable Range
These instructions must be left with the user
If you experience any difficulty with the installation or operation of your new shower fittings,
then please refer to "Fault Diagnosis", before contacting Kohler Mira Limited.
Installation & User Guide
1
1292000-W2-B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mira Logic and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kohler Mira Logic

Summary of Contents for Kohler Mira Logic

  • Page 1 Adjustable Range These instructions must be left with the user If you experience any difficulty with the installation or operation of your new shower fittings, then please refer to "Fault Diagnosis", before contacting Kohler Mira Limited. Installation & User Guide 1292000-W2-B...

  • Page 2: Important Safety Information

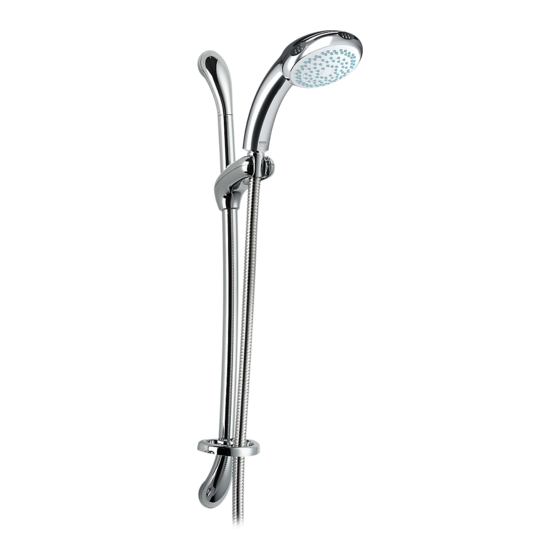

    Introduction This Installation and User Guide covers the following products: Mira Logic Exposed Variable Shower Fittings (ev) An adjustable spray handset with four different spray actions, supplied complete with flexible hose, clamp bracket assembly, slide bar, supports and hose retaining ring/gel holder. Available in chrome finish.

  • Page 3: Pack Contents

    Pack Contents Tick the appropriate boxes to familiarize yourself with the part names and to confirm that the parts are included. Mira Logic ev and biv Shower Fittings 2 x Slide Bar End Supports 2 x Slide Bar End Caps...
  • Page 4 Mira Logic biv Shower Right Angle Connector Fittings Pack 1 x Backplate 2 x Backplate Screws 2 x Wall Plugs 1 x ‘O’ Seal 1 x Screw 1 x Hexagonal Wrench 1 x Olive 1 x Olive Nut 1 x Shroud...

  • Page 5: Specifications

    Warning! Exceeding the stated maximum maintained pressure could result in excessive spray forces and possible damage to the product. These are the typical flow performance graphs for the Mira Logic adjustable shower fittings only. There will be an additional pressure loss through the shower control.

  • Page 6: Installation

    This is necessary to prevent back-siphonage. If this is not possible then the new slide bar will have to be repositioned. Mira Logic Exposed Variable Shower Fittings (ev) Read the section: Installation Requirements before proceeding with the installation.
  • Page 7 Make sure that the slots in the slide bar are aligned with the lugs in the support and fit the two slide bar supports to the ends of the slide bar. Make sure that each support is pushed firmly home. Wall Plug Note! If replacing an existing Mira Top Slide Bar...
  • Page 8 Handset Installation Handset Caution! Do not overtighten the hose. Screw the hose onto the outlet of the shower control (Make sure that the hose washer is fitted). Pass the flexible hose through the hose retaining ring and screw the Hose Washer remaining end of the hose onto the handset (Make sure that the hose...
  • Page 9 Installation of the Right Angle Connector - 3 3 9 0 ° Trim the pipework back to the required Disassemble the right angle connec- depth from the finished wall surface. tor assembly and mark the locations of Remove all burrs and sharp edges. the screw fixings.
  • Page 10 foam seal - 3 3 Secure the backplate to the wall so the Fit the pipe collar and lock. Re-check foam seal is fully compressed. the pipe length. Install the O ring over the pipe. Flush pipework to clear all debris. Fit the cover and twist to lock.
  • Page 11 Check for leaks. Tighten the screw using the 3 mm hex key supplied to lock the assembly. Fit a shower hose with a 15 mm rubber washer. 1292000-W2-B...

  • Page 12: Operation

    Operation Changing Spray Settings The handset has four different spray Modes. Mode 1 Mode 2 Full ON First Row ON Mode 3 Mode 4 Second to fifth First, second row ON. and third row Clamp Bracket Adjustment (ev and biv shower fittings only) Release Button Depress the release button and slide the clamp bracket assembly to the...

  • Page 13: Fault Diagnosis

    Fault Diagnosis The trouble shooting information tabled below gives details on what you can do as a user, should you encounter difficulties with the shower fittings whilst operating the shower. Before replacing any parts make sure that the underlying cause of the malfunction has been resolved. Malfunction Cause Remedy...
  • Page 14 Spares Mira Logic ev and biv Spares Diagram 1844.166 RAC Connector Mounting Pack 1867.045 Adjustable Handset Assembly - Chrome 450.28 Slide Bar - Chrome 1844.165 450.24 RAC Connector Clamp Bracket Shroud - Chrome Assembly - Chrome 450.30 Hose Retaining Ring - Chrome 450.01...
  • Page 15 Notes 1292000-W2-B...

  • Page 16: Customer Service

    E-mail: ● Accidental or wilful damage. CustomerServiceEire@mirashowers.com ● Products purchased ex-showroom display. Mira is a registered trade mark of Kohler Mira Limited. The company reserves the right to alter product specifications without notice. 14648 1292000-W2-B Kohler Mira Limited, August 2018...
