dynaMITE Load Bank Manual

V-C. Single Unit Monitoring

If you have networked multiple load banks together, you can monitor just the master load
bank by pressing the "Load Bank Monitoring" button. This will bring up the single-unit
monitoring screen (See Figure 11 on page 12).

V-D. Shutdown

1.Remove all load by pressing the Remove button on the main screen.
2.Allow the cooling fan to run for approximately five minutes to provide a thorough cooldown
for the entire system.
3.Press the "Control Power" button to switch it to the "Off" position.
4.Turn off the test source.
5.Disconnect the cables and store them in the cable compartment.
6.Disconnect the controller(s) and ethernet cable(s) and store them appropriately.

V-E. Maintenance Mode

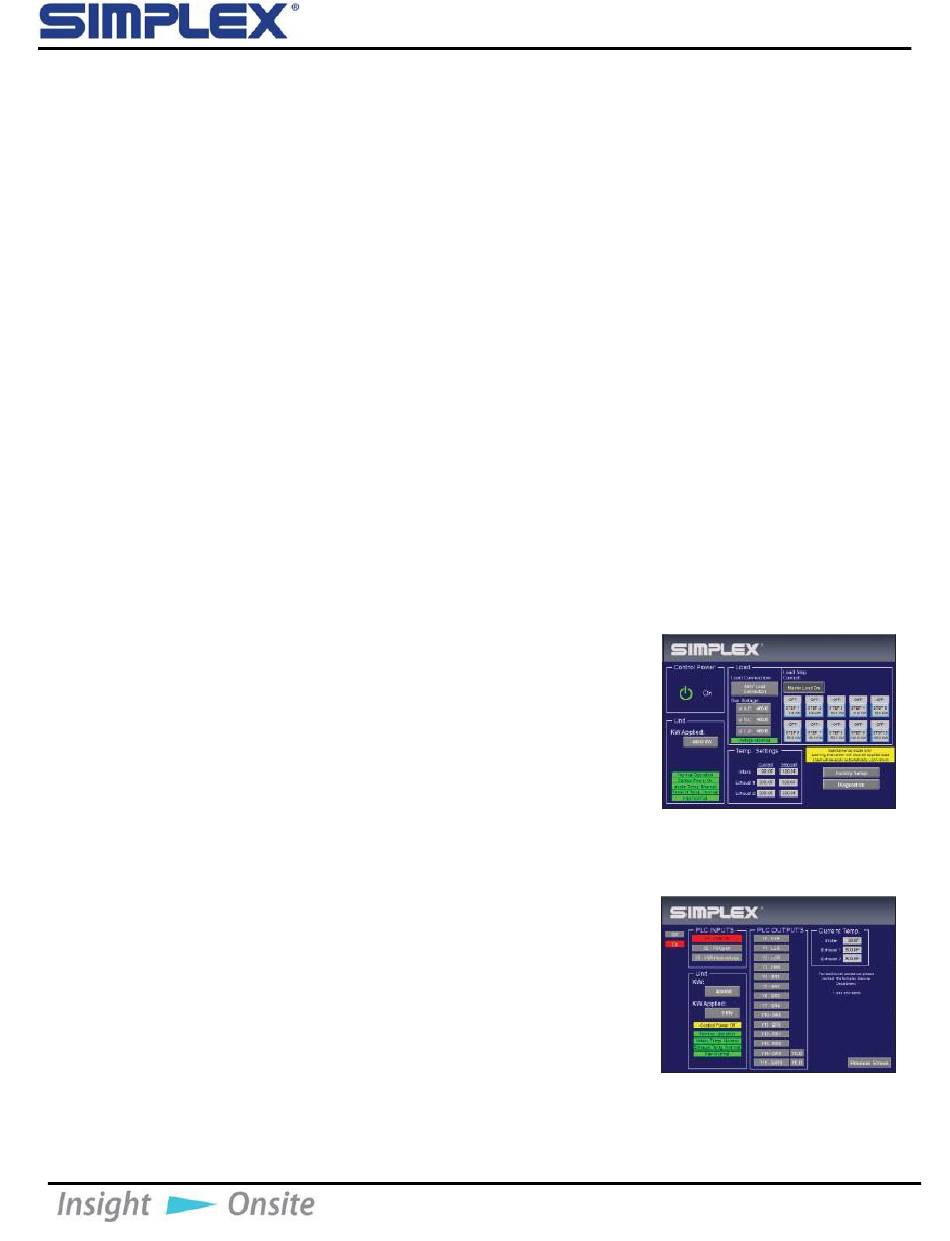

Figure 13: Maintenance Mode
While the load bank's control power is turned off, pressing the
"Maintenance Mode" button in the bottom right corner of the screen
will make the unit enter maintenance mode (Figure 13).
On this screen you can see the values the temperature sensors are
reading, the voltages of the three phases, and check the operation
of the unit's load steps by activating them individually.
Any load that you activate on the maintenance screen will be dumped
when you leave the screen. The Factory Setup screen can be accessed
from maintenance mode, but it is intended for Simplex service representatives only and
is password protected
Figure 14: Diagnostics Screen

V-F. Diagnostics Screen

From the maintenance mode screen, you can enter the Diagnostics
screen (Figure 14), which displays the status of the load bank's
programmable logic controller. This screen can be useful when
working with the Simplex Service Department should a problem arise
with your load bank.
March 2, 2021 • Simplex Service 800-637-8603 • Page 13 of 17
