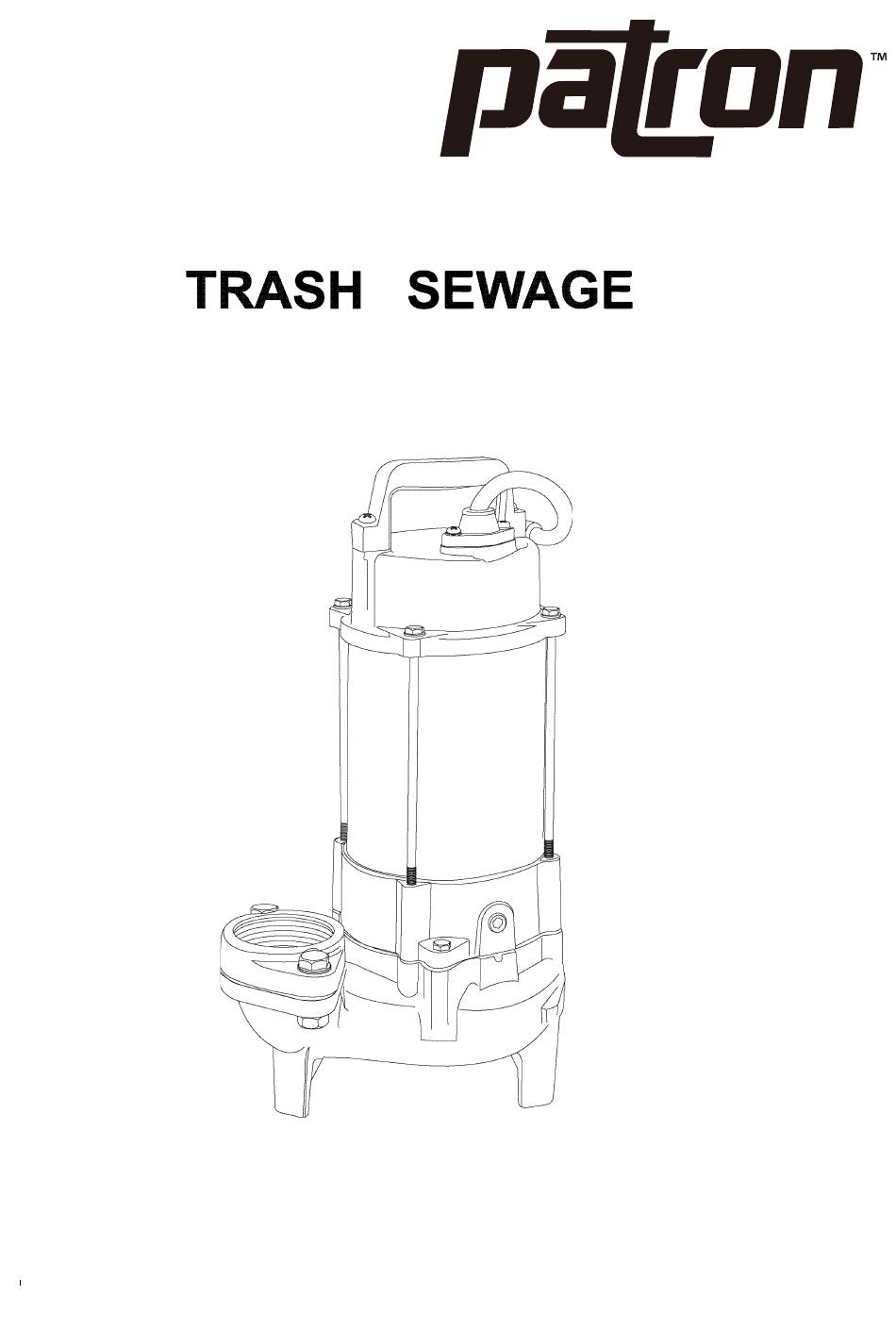

- Page 1 SP-40 Submersible PUMP OPERATION MANUAL Teral Inc.
- Page 3 OPERATION MANUAL SUBMERSIBLE TRASH/ SEWAGE PUMP Thank you for selecting SP-40 Series SUBMERSIBLE TRASH/ SEWAGE PUMP for your pumping requirement. Please take a moment to review this manual before, installing, operating or servicing these pumps. The pump should not be used other than the applications listed in this manual. Failure to do so may lead to a malfunction or an accident to which the manufacturer will not assume any liability.
- Page 8 If the pump must be disassembled for repair, please contact an Authorized Dealer in your area. _&. WARNING Accidental starting of the pump can cause severe injury or death. ALWAYS, disconnect the electrical power before examining/working on the pump. For heavy parts, use a hoist lift to avoid injury. _&.
- Page 9 +------------11 PART NAME PART NAME PARTNAME CABLE M OTOR CASE CASING HANDLE BEARING UPPER COVER LUBRICANT CAPACITOR OIL PLUG MECHANICAL SEAL BEARING BRACKET OIL SEAL S HAFT IMPELLER...
- Page 10 PREVENTATIVE MAINTENANCE 1.Ensure the Voltage and Amperage conform to the nameplate. Maintenance is recommended when the insulation reading is lower than 10M Replace new motor immediately when insulation is lower than 1M . Inspecting of Lubricant: For pumps 1hp, the item should be checked every 3000 hours or 12 months (whichever comes first).
- Page 11 SYMPTOM PROBABLE CAUSE SOLUTION Incorrect Voltage/Amps Check power and correct connections. Defective Cable Replace Power Cable Remove foreign debris from impeller Clogged Impeller or casing. Pump Fails Non Functioning Motor Replace with new protector. to Start Protector Replace Motor Burned Out Motor Defective Float Switch Replace Float Switch Bad Control Panel...
