Instruction Manual

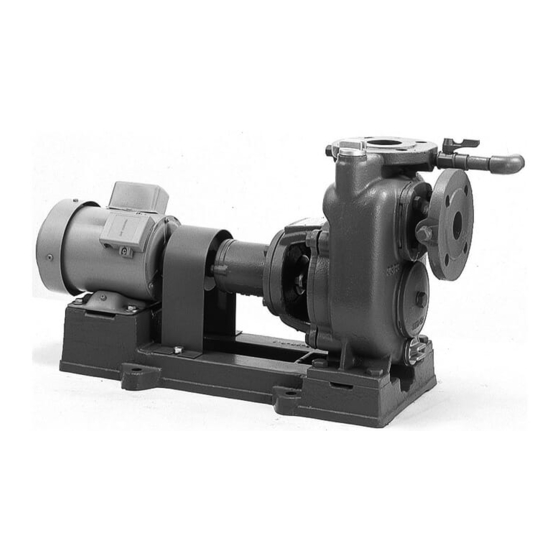

Self-Priming Centrifugal Pump
Model: SP3 / SP / MSP / MTP
SP3-e / SP-e / MSP-e / MTP-e
Warning
Do not carry out operation, inspection or maintenance of the pump until you read this manual and
understand the content.
Keep this manual carefully at hand so that it can be consulted at anytime when operating, inspecting or
maintaining the pump.
For contractors who carry out equipment work:
Please be sure to deliver this manual to the customer who will operate, inspect or maintain the pump.
TERAL INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP3-e and is the answer not in the manual?

Questions and answers

Related Manuals for Teral SP3-e

Summary of Contents for Teral SP3-e

  • Page 1 Instruction Manual Self-Priming Centrifugal Pump Model: SP3 / SP / MSP / MTP SP3-e / SP-e / MSP-e / MTP-e Warning Do not carry out operation, inspection or maintenance of the pump until you read this manual and understand the content.

  • Page 2: Limited Warranties

    (6) Failures and breakage caused by use or storage outside the specification range 4. Teral Inc. shall not be liable for the damage caused by incorrect or reckless use of the pump. Cost and expenses incurred for sending engineer(s) in such a case shall be borne by the user.

  • Page 3: Table Of Contents

    Purpose of this manual The purpose of this manual is to provide the user with detailed information necessary to properly operate, maintain and inspect the pump. Incorrect operation of this product may lead to an unexpected accident. Please use the product correctly according to this instruction manual. This manual contains the following information and is intended for persons experienced in the operation of pumps, or for those who have been trained by such experienced operators.

  • Page 4: Safety Precautions

    1. Safety precautions Before using the unit, thoroughly read this “Safety precautions” to properly use the product. Information described below is vital to safe and proper use of the unit and prevention of hazard and/or damage. Types and meanings of safety signs and graphic symbols This instruction manual divides precautions into the following four categories according to the level of hazards (or the severity of the accident).
  • Page 5 For overhaul, replacement of parts, or repairs, Do not put your fingers or foreign objects into any contact Teral or the service center specified by openings or rotating part of the motor during Teral. operation.
  • Page 6 Do not run the pump with tools or other objects cannot be resolved, immediately stop the placed on the unit. operation, turn off the power, and then contact Teral Otherwise, it may lead to an injury or damage. or its service provider.

  • Page 7: Location Of Warning Labels And Caution Labels

    Location of warning labels and caution labels The figure shows the locations of warning labels and caution labels. If these labels become dirty and illegible or if they are peeled off, replace them with a new one. Warning Caution Observe all the warnings and cautions affixed to the machine as well as those described in this instruction manual.

  • Page 8: Configuration And Overview Of The Pump

    2. Configuration and overview of the pump This chapter describes the standard specifications of the pump. If you have purchased a customized product, some information in this chapter may not be applicable to your unit. Refer to the delivery specifications for the details separately. Model type description S P M 3 4 0 - e M T P 3 2 - 5 .

  • Page 9: Standard Specifications

    Caution Do not use this product under any conditions other than those provided in the specifications. Failure to observe this may cause an electric shock, a fire, leaks, or failures. ・Standard specifications SP3/SP3-e SP/SP-e Model* SP/SP-e (Stainless...
  • Page 10 * 1 The products with model name ending “-e” are equipped with a Top Runner efficiency (equivalent to IE3) motor. * 2 Fresh water: 5.8-8.6 pH water without any contaminants (slurry and solids) and of which chloride ion concentration does not exceed 200 mg/L. The water containing chloride ion exceeding 200mg/L may cause corrosion.

  • Page 11: Installation

    3. Installation Before using the pump Upon receiving the pump, check the following points first. The container may greatly incline depending on its center of gravity. Caution Before unpacking, ensure that the delivered container is placed in the correct orientation (not upside down). Pay special attention to nails especially when opening a wooden crate.
  • Page 12 Caution Install the product so that the total suction head (suction height + suction pipe resistance) is as small as possible within the standard specifications. Also it cannot be used if the water temperature exceeds 40 , due to the °C limit for self-priming capacity.

  • Page 13: Installation Procedure

    (6) If the system could be exposed to the freezing temperature in winter, ensure to take measures to prevent freezing in the pump room or to prevent the pump, sluice valves, piping, and other devices from freezing. (7) Use sound-insulating materials for door and walls of the pump room. Especially if there is a risk that the noise may cause problem, take necessary measures against the noise.

  • Page 14: Precautions For Piping Work

    (8) Be sure to align the shafts correctly. (SP(3)/SP(3)-e, MSP/MSP-e) Although the shaft is aligned at the factory before shipment, it could get misaligned during transportation or installation (at fastening the anchor bolts). Check the alignment and re-align it after the installation is complete. For the model MTP/MTP-e, the shaft of the pump is directly coupled with the motor and there is no need for alignment.
  • Page 15 (2) Be sure to provide pipe supports so that the weight of pipes is not applied directly to the pump main body. Caution Be sure to provide pipe supports for the pipes. Otherwise, the main shaft may be displaced from the center, thus leading to the equipment damage, vibration, or noise.
  • Page 16 ・ Attach a foot valve with a strainer to the end of the suction pipe to prevent entry of foreign objects. Immerse the foot valve in water and set it at a depth of at least twice the diameter of the pipe from the surface of water to prevent the suction of air.

  • Page 17: Precautions For Wiring Work

    (equivalent to IE3) motor-equipped products tends to become higher than that of standard efficiency (IE1) motor-equipped products. If you have any questions, contact your nearest office of Teral. Note When switching from an IE1 motor-equipped product, it is necessary to verify the applicability of its protection device on the primary side of the pump.
  • Page 18 Do not use the inverter to drive a motor equipped with a self-protecting device. • When driving a 400V-class motor, contact your nearest office of Teral. In some cases it might be necessary to take measures for inverter surge. •...

  • Page 19: Operation

    4. Operation Check items before test operation 4.1.1 Check items related to the electrical system Warning Before changing the wiring, be sure to turn off the main power supply. Otherwise, you may receive an electric shock. Warning Do not use the product at any voltage other than the rated value. A fire or electric shock may occur.

  • Page 20: Running The Pump (Test Operation)

    Warning Before rotating the main shaft by hand to check it, be sure to turn off the main power. An unexpected start of the pump may cause an accident. (4) If the sluice valve is installed on the suction side, fully open the valve. (5) Prime the pump until water overflows from the priming funnel or the priming port.
  • Page 21 Caution Never check the rotation direction by running the pump dry. Running the pump dry even for a short time may cause damage to the sliding parts (e.g. bearings, mechanical seal) inside the pump, leakage or unusual noise. Caution Do not run the motor in reverse because it may cause a failure. (2) Turn on the power to start the pump.
  • Page 22 [For reference only] Relation between the total amplitude (a) and the vibration velocity (V) V×4×10 π×n a: Total amplitude (μm) V: Vibration velocity (mm/s) n: Equipment rotation speed (min 600 800 1000 1500 2000 3000 4000 6000 8000 Rotation speed (min Standard vibration value at the bearing section (10) Stop the pump.

  • Page 23: Maintenance And Inspection

    Caution For overhaul, replacement of parts, or repairs, ask the vendor, the servicing company specified by Teral, or your nearest Teral sales office. Incorrect work may cause a failure or accident. Precautions for maintenance and inspection (1) Observe the following instructions, in particular, during daily inspection.
  • Page 24  Check that all mounting bolts and the power terminal block are securely connected.  Except when inspection is required, keep the cocks of the pressure gauges and compound gauge closed all the time with the pressure being released ⑪ In the event of a power failure, be sure to turn off the power.

  • Page 25: Shaft Seal Parts

    Shaft seal parts 5.2.1 Gland packing (SP (3)/SP (3)-e, MSP/MSP-e) Caution Be careful not to tighten the gland packing excessively or unevenly. Otherwise, it may cause excessive heating of the shaft seal part, or damage to the gland packing and the main shaft. Stud bolt Main Gland packing...

  • Page 26: Mechanical Seal (Mtp/Mtp-E)

    5.2.2 Mechanical seal (MTP/MTP-e) (1) The mechanical seal is a precision part for preventing water leakage from the clearance of the pump shaft. Carefully handle the seal to ensure the proper operation of the pump. (2) The mechanical seal is a consumable. It wears at a different rate depending on the properties of circulating liquid, the presence of foreign matter, operating pressure, and other factors;...

  • Page 27: Maintenance Checklist

    Maintenance checklist Inspection interval Consumables Inspection Criterion Inspection point Inspection item Half- Timing of replacement method (Reference page) Daily Monthly Yearly yearly (as a guide)*  Temperature Measure Between 0 and 40°C (2-2) Less than 85% RH (2-2) Check against the ...

  • Page 28: Troubleshooting

    6. Troubleshooting If you find any abnormal conditions of the pump, carefully investigate the problem. For overhaul, replacement of the parts or repairs, ask the vendor or contact Teral or our servicing companies. Problem Cause (Reference page) Action (Reference page) Check the wires and connections to repair or Wiring is disconnected or broken.
  • Page 29 Problem Cause (Reference page) Action (Reference page) The bearing is worn or damaged. (5-1) Contact Teral or our servicing companies because disassembly and inspection are required. The grease is deteriorated. (5-1) Overheat of bearing Incorrect installation of the pump and the Check and correctly install them.
  • Page 30   Head Office 230, Moriwake, Miyuyki-cho, Fukuyama-city, Hiroshima, 720-0003, Japan Tel.084-955-1111 Fax.084-955-5777 Overseas Div. TERAL Koraku Bldg., 2-3-27, Koraku, Bunkyo-ku, Tokyo, 112-0004, Japan Tel.03-3819-6890 Fax.03-3818-6790 TP-346-01 TP-470-00...
