3.2.3 Installation Space Requirements

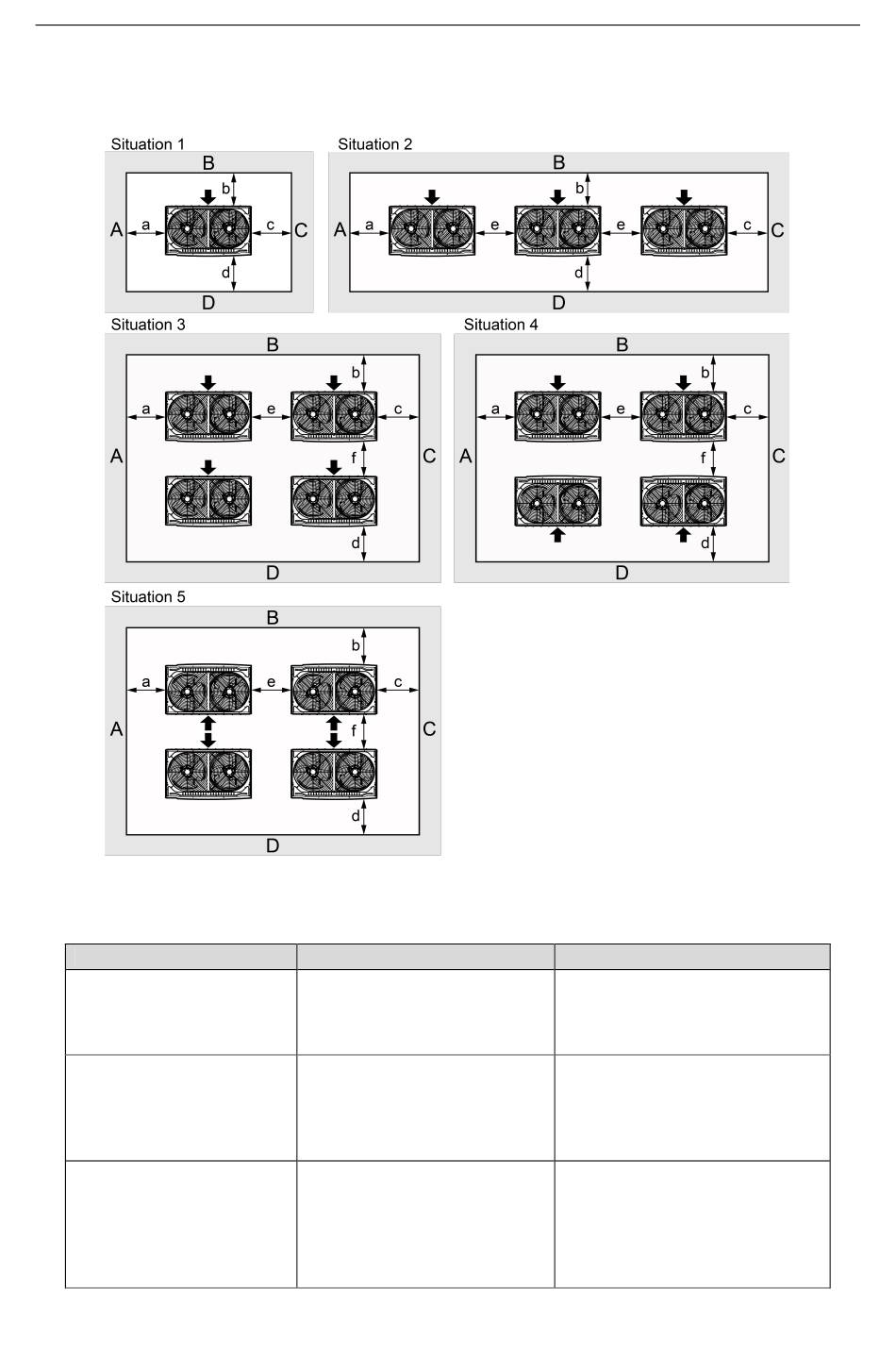

The installation space of the unit should consider the maintenance space of the unit and the
ventilation of the unit. Select an installation method according to the actual situation.
Status
Status 1
Status 2
Status 3
Fig.3.2.6
A+B+C+D
a≥300
b≥100
c≥100
d≥500
a≥300
b≥100
c≥100
d≥500
e≥100
a≥300
b≥100
c≥100
d≥500
e≥200
f≥600
15
Unit：mm
A+B
a≥300
b≥300
a≥300
b≥300
e≥400
—
