Gree GMVVQ224WM/C-X Owner's Manual page 15

GMV Heat Recovery DC Inverter VRF
No. Name
Low pressure gas pipe
①
High pressure gas pipe
②
Liquid pipe
③
Wire-passing hole (L×W)
④
Lifting hole
⑤

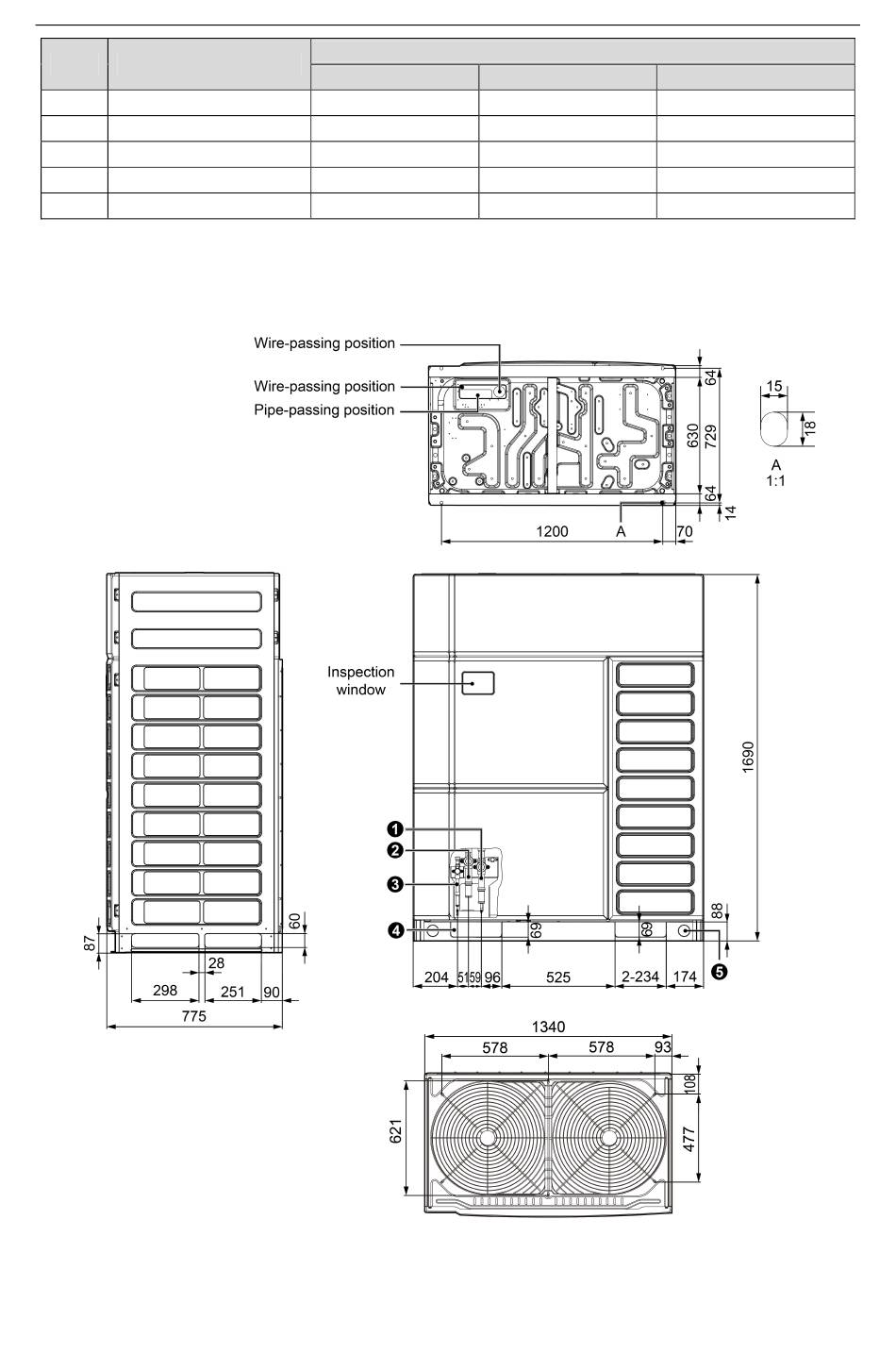

Outline and Physical Dimension of GMV-VQ400WM/C-X, GMV-VQ450WM/C-X, GMV-
VQ504WM/C-X, GMV-VQ560WM/C-X, GMV-VQ615WM/C-X unit.
GMV-VQ224WM/C-X
Φ19.05
Φ15.9
Φ9.52
196×69
Φ50
Fig.3.2.2
11
Pipe diameter(mm)
GMV-VQ280WM/C-X
Φ22.2
Φ19.05
Φ9.52
196×69
Φ50
GMV-VQ335WM/C-X
Φ25.4
Φ19.05
Φ12.7
196×69
Φ50
Unit: mm
