Gree GMVVQ224WM/C-X Owner's Manual page 17

GMV Heat Recovery DC Inverter VRF

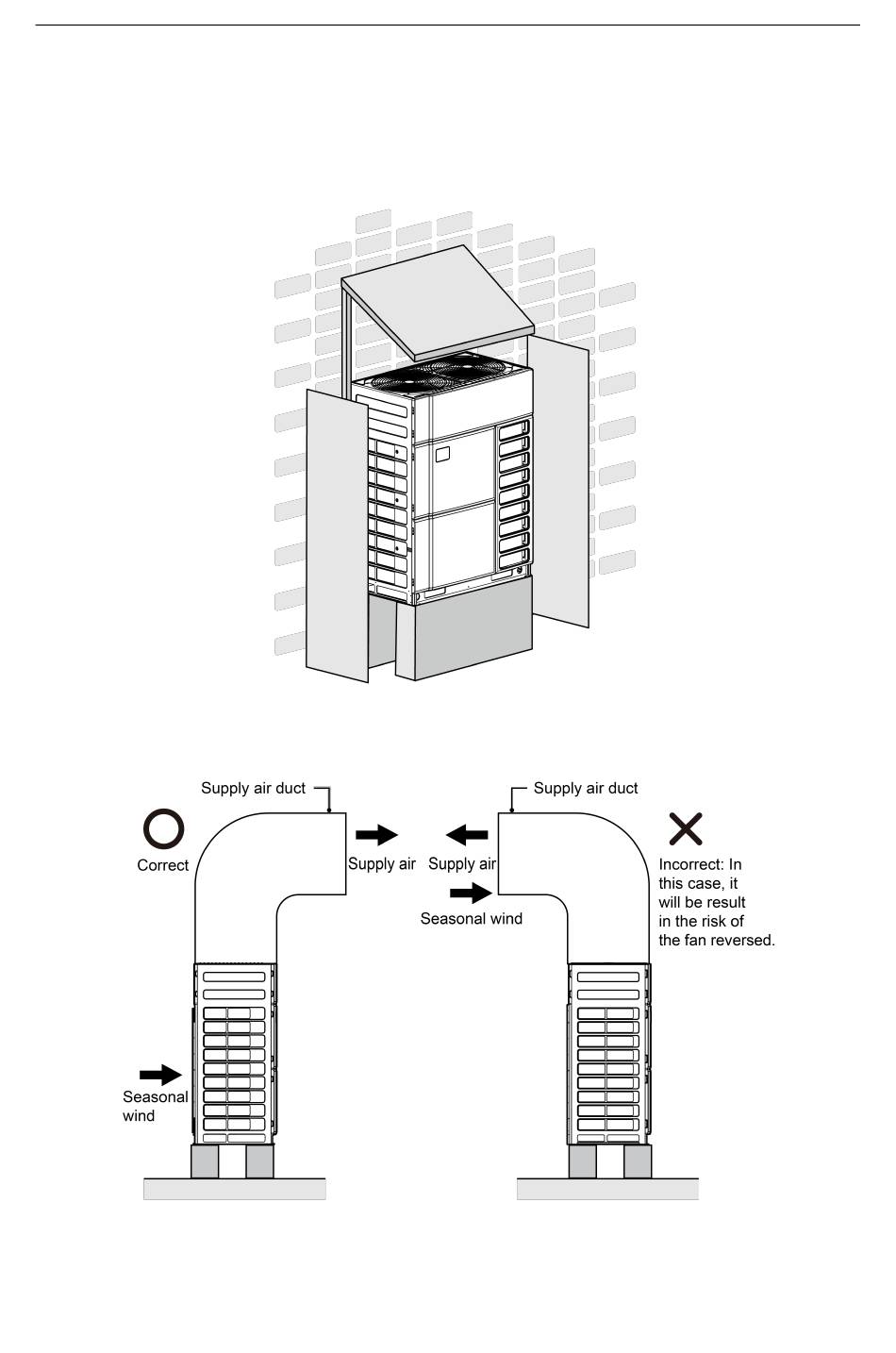

3.2.2.1 Take seasonal wind into consideration when installing the outdoor unit
(1) Anti-monsoon installation requirements for unit not connecting exhaust duct.
When the exhaust duct is not connected, a protective cover should be installed according to the
seasonal wind circumstances.
NOTE: The photo is only for reference. Please refer to the installation locale.
(2) Anti-monsoon installation requirements for unit connecting exhaust duct:
Fig.3.2.3
Fig.3.2.4
13
