2.4 TEMPORARILY DISABLE THE
LANE DEPARTURE WARNING (LDW)
To avoid erroneous LDW warnings in areas such as
construction zones – where the non-standard or overlapping
road markings present might cause false alerts – the
Bendix Wingman Fusion
® ®
has an enable/disable switch. The Bendix switch design or
a similar OEM switch may be used. See Figure 5.
For vehicles that have the LDW switch hard‑wired to the
SafetyDirect by Bendix CVS Web Portal Processor, and a
®
functioning On Board Computer (OBC)/Telematics system:
The enable/disable switch used by the Lane Departure
Warning (LDW) system also functions – when depressed
for six (6) seconds – to activate a manual request to
transmit the last five seconds and next five seconds of
buffered video data.
6
Active Safety System (Fusion)
™

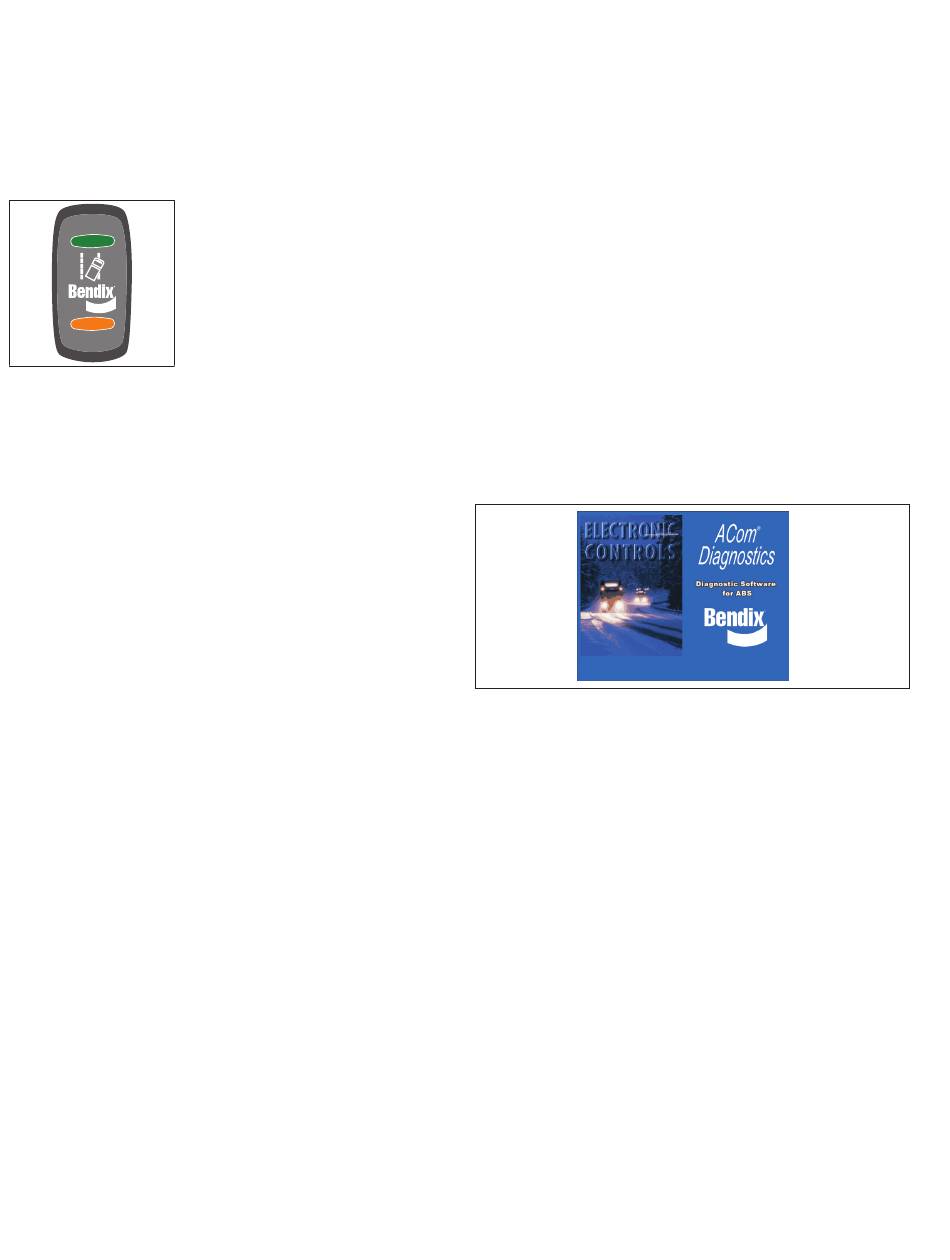

Figure 5 – Example of an LDW
Enable/Disable Switch
2.5 SETTING DIAGNOSTIC
TROUBLE CODES
If, during operation, the Bendix Wingman Fusion system
detects a problem with the Bendix
camera, a DTC will be set and – depending on the OEM –
the driver will be alerted on the dash display with an icon
or similar method. In these cases, some features of the
Fusion system will not be available.
If, for an extended period of time, the system detects that
the camera is blocked by dirt, snow, ice, etc., a Diagnostic
Trouble Code (DTC) will typically be set.
2.6 BENDIX ACOM
®
DIAGNOSTIC SOFTWARE
Bendix ACom Diagnostic Software is a PC-based software
® ®
program available as a download from the Bendix website
(bendix.com). This software provides the technician with
access to all the available Electronic Control Unit (ECU)
diagnostic information and configuration capability. For
Fusion system diagnostics, use the current version of
Bendix ACom Diagnostic Software. See Figure 6.
Figure 6 – Bendix ACom
®
AutoVue FLC-20
™ ®
®
Diagnostic Software
®
™
