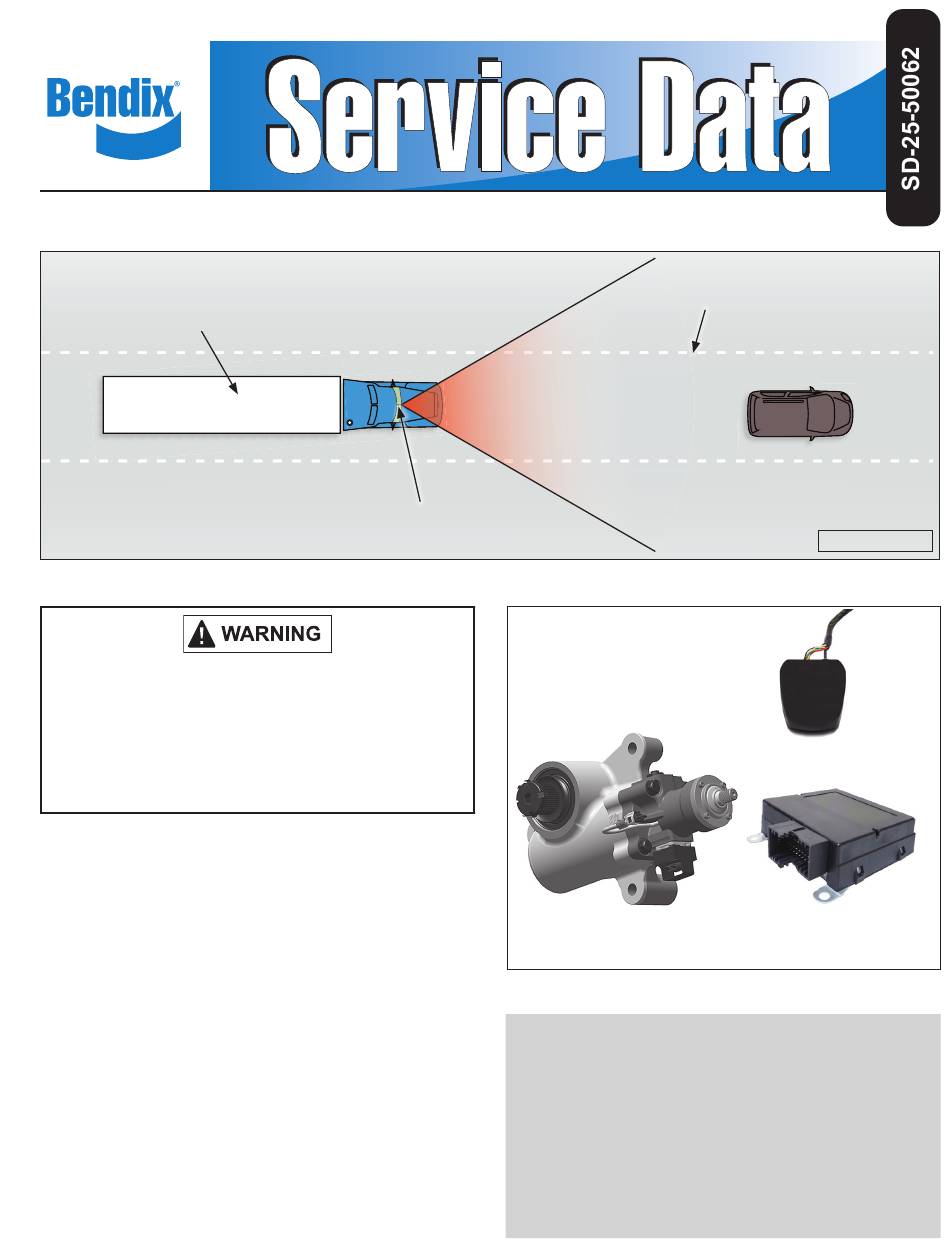

BENDIX Sheppard Service Data

The Sheppard Active Steering System by Bendix CVS
®
Vehicle Equipped with the
Sheppard Active Steering System by Bendix CVS
®
Figure 1 – The Sheppard
Bendix safety technologies complement safe driving
practices. No commercial vehicle safety technology
replaces a skilled, alert driver exercising safe driving
techniques and proactive, comprehensive driver
training. Responsibility for the safe operation of the
vehicle remains with the driver at all times.
DESCRIPTION
The Sheppard Active Steering System by Bendix
®
CVS is a driver assistance system, helping the driver
with a suite of steering assist features and driver
assist steering features integrated with the Bendix
FLC-20 camera, Bendix
™
compatible third party camera. The active steering system
does not replace the driver or driving skills.
The driver is solely responsible for maintaining control
of the vehicle with both hands on the steering wheel.
The active steering system combines unique active
steering technology with a forward-facing camera for active
lane correction. This system helps mitigate potential side
collisions and lane-departure related accidents, as well as
increase driver comfort.
Compatible Windshield-
Mounted Camera
Active Steering System by Bendix CVS Uses a Windshield-Mounted Camera
®
Wingman Fusion
® ® ™
Magnetic Torque Overlay
® Steering Gear
or a

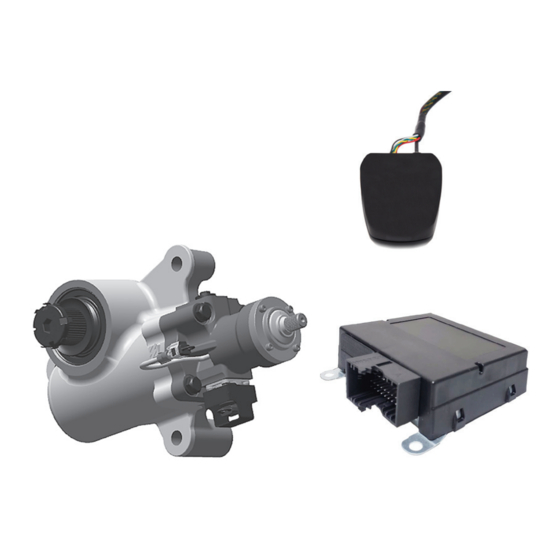

Figure 2 – System Components
Additional Reference Information
• For installation of the Bendix
camera see Bendix Service Data sheet SD-64-20124,
available on Bendix.com.
• For installation of the steering gear see the Sheppard
D-Series Integral Power Steering Gear manual,
available on RHSheppard.com.
• For installation of the ECU see the OEM service
information.
Trackable Lane Lines
Bendix AutoVue
® ®
FLC-20 Camera
™
Active Steering
Electronic Control
Unit (ECU)
AutoVue
®
NOT TO SCALE
FLC-20
® ™
®
1
