NOTES:
● All ACCESSORY INPUTS (ITEMS 2-6) are dry
contact,normally open inputs. DO NOT apply
external voltage inputs to these terminals.
● All ACCESSORY INPUTS (ITEMS 2-6) are
connected with respect to the COMMON
terminals (ITEM 1).
1 COM: Common/Negative terminal for accessory devices and negative wire from solar panel(s).
2 CYCL: (Typically for use with doorbell button or hard wired keypad)
• Each activation at this input will cycle the operation as follows:
....→ OPEN → STOP → CLOSE → STOP → OPEN → ...
3 SAFE: (Typically for use with photo beam device,loop detector or other non-contact sensors)
• Activation of this input while the gate is closing, or at a position other than fully open or fully closed
will cause the gate to stop and return to the opened position.
• Activation of this input while the gate is opening has no effect. (gate will continue to open)
• Activation of this input while the gate is open will prevent gate from closing.
• Activation of this input while at open limit will restart the auto close time (if enabled).
4 EXIT: (Typically for use with exit loop or wand)
• Activation of this input will open the gate if it's not already at the open position.
• Activation of this input while at open limit will restart the auto close time (if enabled).
5 SHDW: (Typically for use with loop detector device)
• This input is only monitored when the gate is at the fully open at the open position.
At any other position, activation of this input has no effect on gate operation.
• Activation of this input while gate at the fully open position will prevent gate from closing.
6 EDGE: (Typically for use with contact edge sensor)
• Activation of this input while gate is moving will cause it to reverse direction for 2 seconds.
• Activation of this input while idle will prevent gate from running.
AUX V+ & AUX V-: These terminals provide constant auxiliary accessory power from the operator's battery, rated
7
for 2 amps MAX. The output is designed to be used in conjunction with the AUX relay, ITEM 8.
NOTE: Using this power output will drain your operator battery. Continuous use greater than 20mA is NOT recommended for solar
applications.
AUX C NO NC: The AUX Relay is triggered during gate operation and remains activated for the duration of the gate
8
operation. The AUX Relay should only be used for switching AUX V-.
LOCK V+ & LOCK V-: These terminals are designed for use with the Automatic Gate Lock (FM143). See page 42 of
9
this manual for connection diagram.
LOCK C NO NC: The LOCK Relay is designed for use with the Automatic Gate Lock (FM143). This relay is
10
momentarily triggered at the beginning of each gate operation. See page 42 of this manual for connection
diagram. The LOCK Relay should only be used for switching LOCK V-.
NOTE: DO NOT connect positive voltage to the AUX or LOCK Relays.

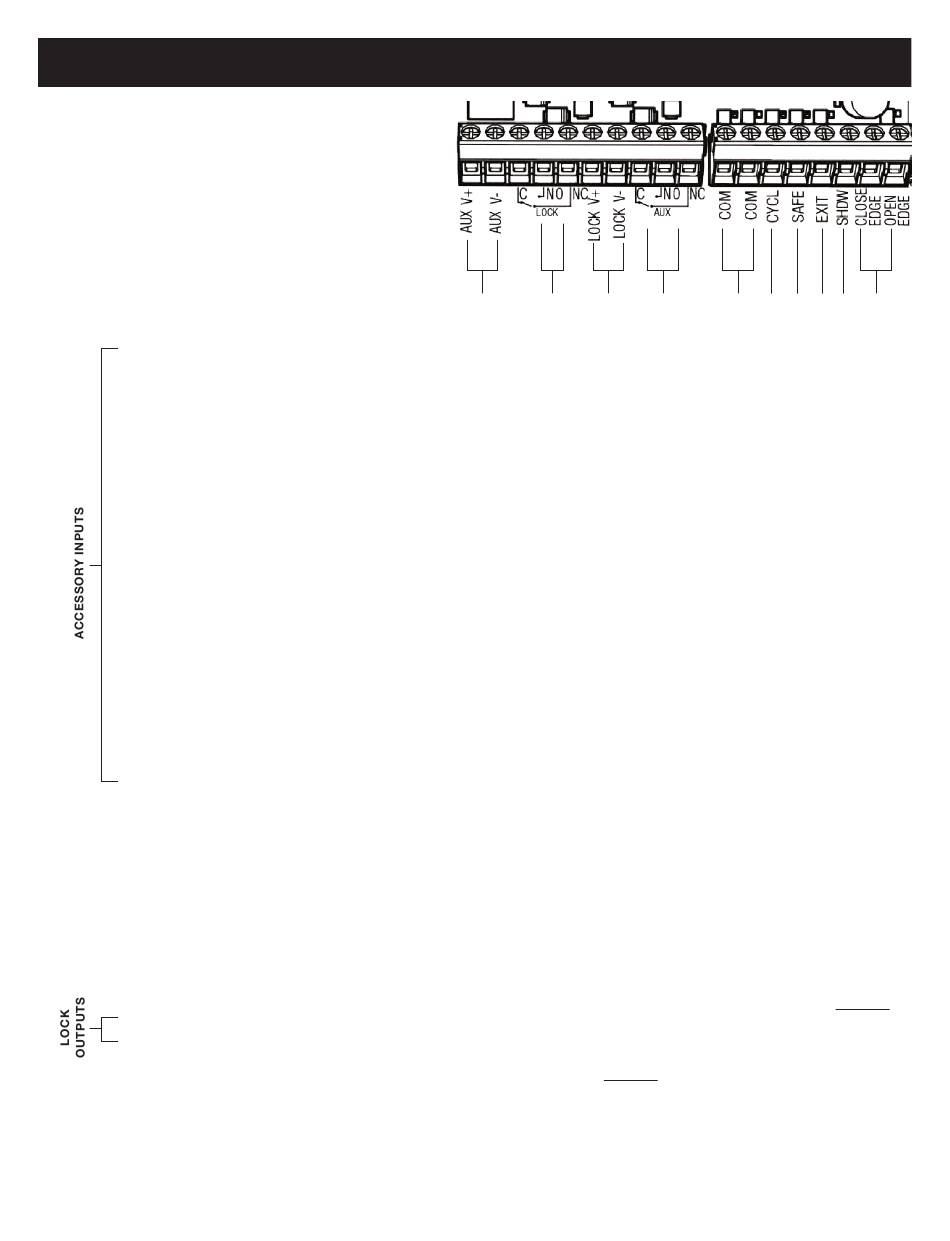

CONTROL BOARD CONNECTIONS

   
