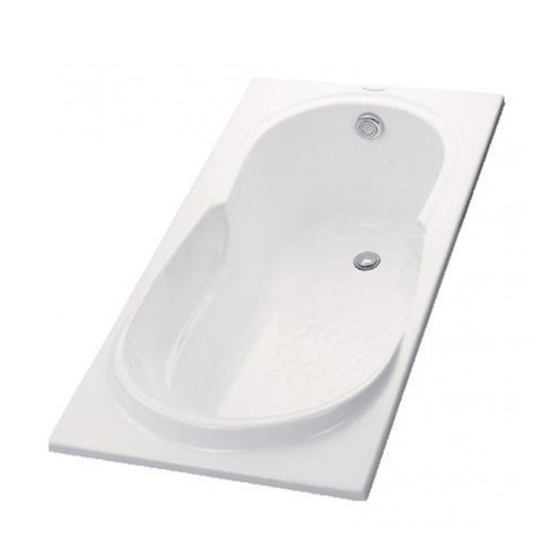

Acrylic bathtub

Advertisement

Available languages

Available languages

PAY1570D/E, PAY1570DH/EH, PAY1770D/E, PAY1770DH/EH, PAY1580D/E, PAY1780D/E
I

CAUTION FOR INSTALLATION

1
Before installation, visually check if the
bathtub is in good condition?
2
Do not place heavy things onto bathtub
edge. Do not use the stand inside the
bathtub during installation. That may
cause scratches to the bathtub
3
Do not let fire lighters like blowlamp or
firing cigarettes contact with the bathtub
to prevent. That may cause damages
to the bathtub
4
Do not move the bathtub until the installation
is finished.
5
Do not apply sand or lime mortar to paste
inside the bathtub.
Sand
6
Do not fill the bathtub with direct hot water which
will make the bathtub damaged and discolored.
(The recommended temperature of water is
lower than 60oC)
7
Do not make smash to the bathtub like drop
things into the bathtub or beating the bathtub.
his will make the bathtub damaged

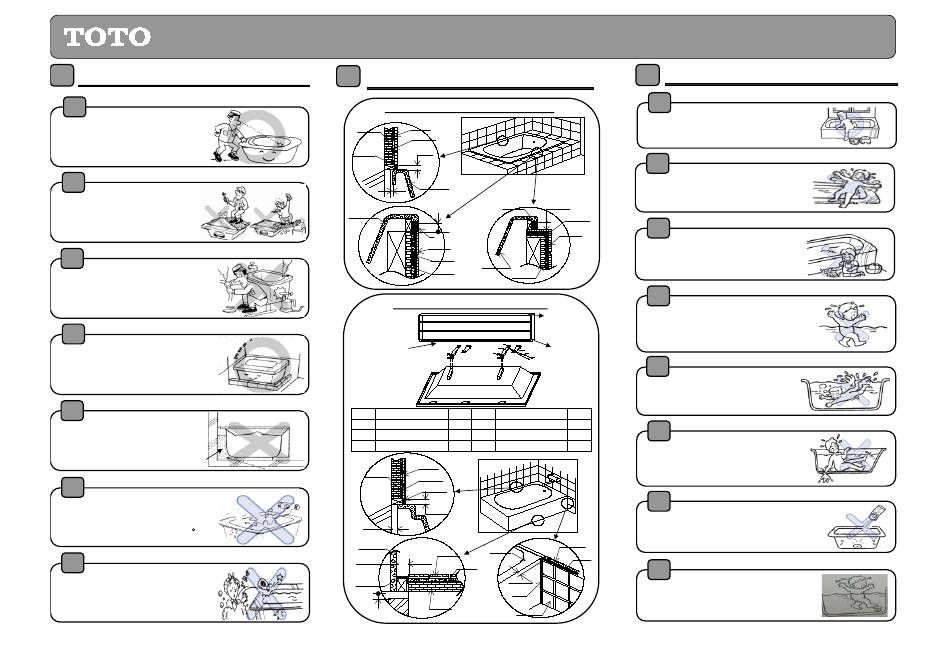

INSTALLATION INSTRUCTION & USER GUIDE FOR ACRYLIC BATHTUB
II

INSTALLATION DIMENSIONS

Installation of bath-tub without apron

Brick
Wall
Cement
3~5mm
Silicon
More than
Bathtub
3mm
3~5mm
Bathtub
Silicon
Brick
Cement
Wall

Installation of bath-tub with apron

Top surface
of apron
No
Fittings
1
Screw
2
Support lift A
3
Support lift B
Brick
Wall
Cement
Silicon
3~5mm
More than
3mm
Apron
Brick
More than
3mm
Silicon
More than
Wall
3mm
`
Silicon
3~5mm
Cement
Brick
Bathtub
Wall
Below surface
of apron
1
2
3
Contact surface
6
4
5
of apron
4
4
Q'ty
No
Fittings
Q'ty
4
4
Metal gasket
4
2
5
Nut
4
2
6
Pin-head screw
8
Wall
Bathtub
Cement
Cement
trên 3mm
Silicon
Brick
III

CAUTION FOR USING

1
When stepping into the tub, firmly hold the
edge of the bathtub with hand to prevent foot
slip and injury/death.
2
Do not stand on the edge of the bathtub
because this will cause falling down and
injury/death
3
Do not let children play in the bathtub to
prevent injury, burn or death when bathing.
(this caustion should be displayed in your
bath-room)
4
Do not let children aone in the bathtub to
prevent injury, burn or death when bathing.
(this caustion should be displayed in your bath-
room).
5
Do not dip your head in the water when
bathing. This may cause injury or death.
6
Do not bath when draining out the water to
prevent your hand, foot or hair pulled into
drainage hole. This may cause injury/death.
7
After bathing, clean the bathtub with a soft cloth
and neutral detergent, then wipe the bathtub with
a dry towel. Do not use any strong solvent to
clean the bathtub.
8
Strictly don't trample and using external force
attach effective into cover flush and system
pushing of buthtub (using hand for working flush
water)
0IMI139001/02
