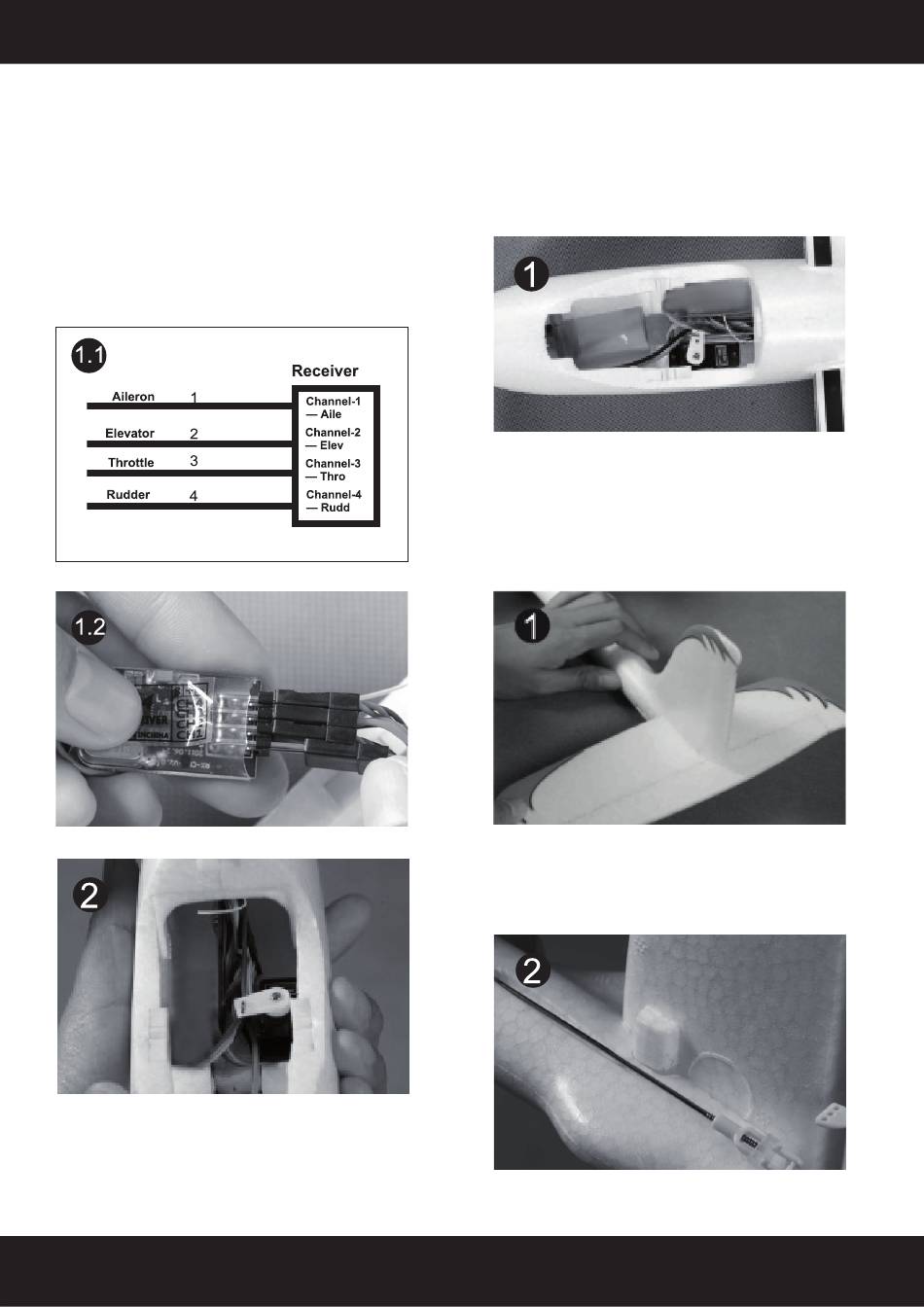

9.2 Receiver connection:
Plug the aileron servo cable into the correct receiver input on chan-
nel 1 = Aileron.
Speed controller goes on channel 3 = Throttle.
Elevator to channel 2 = Elevator.
Rudder to channel 4 = Rudder.
*Symbol image
2. The receiver should be placed in the rear cabin area, behind the
servos. The cables must not obstruct the servo movement!
www.modster.at
MODSTER Easy Trainer 1280 V2
9.3 Battery position:
Attach the battery, e.g. with Velcro tape as shown in the picture. The
centre of gravity can be adjusted by changing the position.
9.4 Mounting the tailplane:
1. push the tailplane from the rear to the front into the gap at the end
of the fuselage - not too tight and with the decoration facing up! Do
not use glue yet!
The foam nose helps with positioning. Do not press beyond the po-
sition.
