Summary of Contents for Yolink Finger

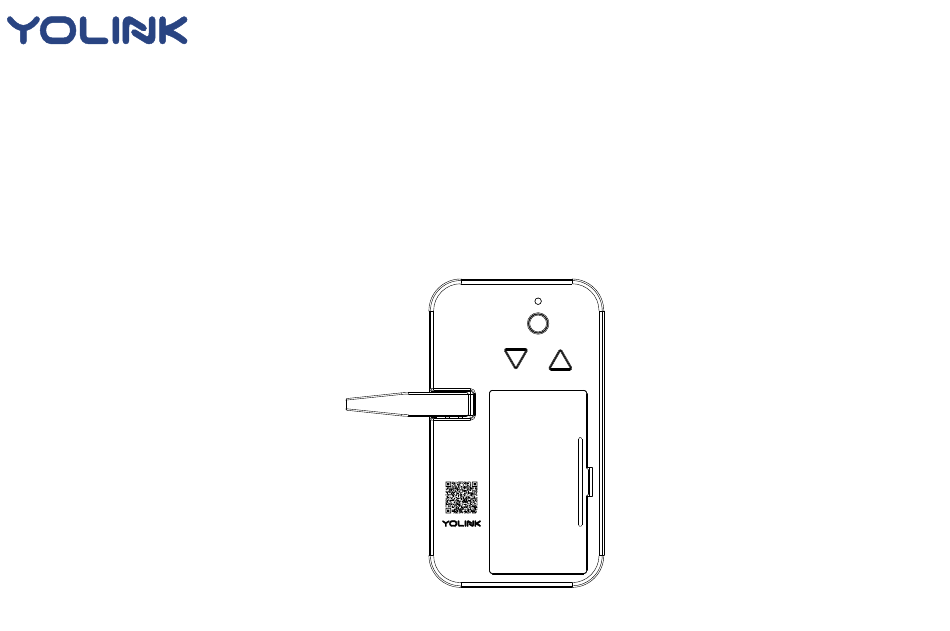

- Page 1 User Guide YoLink Finger YS4908-UC DOWN...
-
Page 2: Table Of Contents
····· 2 ·· Features······································································3 Set Up YoLink Finger························································4 Installation··························· ··································· · ·· · ·· 8 Using YoLink App with YoLink Finger····································11 YoLink Control ·····························································13 Maintaining the YoLink Finger···········································15 Specifications···························································· · 7 · 1 Troubleshooting·························································· · · 18 Customer Service and Warranty ·································... -
Page 3: Warning
A Garage Door Opener. The smartphone or tablet able to run iOS 9.0 or higher; Android 4.4 or higher. To gain full access, we suggest you to bind your YoLink Finger with a garage door sensor (Both YS7705-UC and YS7706-UC are suitable). -
Page 4: Introduction
Introduction YoLink Finger is used for garage door switch control without any wire connected. Stick the device tightly next to the garage door switch controller using double side tape. Add the device to YoLink App, remotely control the garage door switch controller to open or close your garage door anywhere, anytime. -
Page 5: Features
- CONVENIENTLY OPEN AND CLOSE your garage door with your mobile device anywhere, anytime. Long Range - Up to 1,000 Feet between Hub and device. Battery Status - Update surplus of battery power and send low battery alert. YoLink Control - Trigger an action of certain YoLink devices without internet. -
Page 6: Set Up Yolink Finger
Set Up YoLink Finger Follow the steps below to set up your YoLink Finger via YoLink App. Step 1: Set up YoLink App Get the YoLink App from the Apple App Store or Google Play. YoLink... - Page 7 Step 2: Log in or sign up with YoLink account Open the App. Use your YoLink account to log in. If you don’t have a YoLink account, tap Sign up for an account and follow the steps to sign up an account.
- Page 8 Name - Name your YoLink Finger. b. Room - Choose a room for your YoLink Finger. c. Favourite - Click “ ” icon to add/remove from Favourite. Tap the “Bind Device” to add the device to your YoLink account. DOWN...
- Page 9 Step 4: Connect YoLink Finger to the cloud Press the SET button once, the LED light will blink green and your device will connect to the cloud automatically. Note Follow the Installation to install the device first. Make sure your hub is connected to internet.
-
Page 10: Installation
YoLink Finger Place the YoLink Finger close to the switch panel, use UP and DOWN button to adjust the finger, make sure it is at the right position to press down the switch button and open the garage door. - Page 11 Peel off the surface of the double-side tape You can also mount the YoLink Finger to the wall with screws. Please remove the battery cover and take out batteries after position adjusted. Mount YoLink Finger to the wall using provided screws.
- Page 12 Installation Diagram (Partly) DOWN...
-
Page 13: Using Yolink App With Yolink Finger
Using YoLink App with YoLink Finger Note For better user experience, we suggest you to bind your YoLink Finger with a YoLink Garage Door Sensor. Control Display the real-time battery status and signal Intensity of your YoLink Finger. Tap the “Garage Door” in App to go to its controls. - Page 14 You can customize the name, set the room, add to/ remove from favourite, check device history, set pairing with sensor. a. Name - Name your YoLink Finger. b. Room - Choose a room for your garage door device. c. Favourite - Click Add/Remove the device from Favourite.
-
Page 15: Yolink Control
YoLink Control YoLink Control is our unique “device to device” control technology. Under YoLink Control, the devices can be controlled without internet or Hub. Devices which send out command is called controller(Master). Devices which receive command and act accordingly is called responder(Receiver). - Page 16 After unbundling, when press the relative ON button on the YoLink Remote, the YoLink Finger will no longer click the switch button once. Note For YoLink Finger, you can only set up YoLink Control between YoLink Finger and YoLink Remote (YS3603-UC).
-
Page 17: Maintaining The Yolink Finger
Maintaining the YoLink Finger Firmware Update To ensure our customer have the best user experience, we highly recommend you could update our newest version firmware. Tap the “Garage Door” in App to go to its controls. Tap the “ ” icon at the top-right corner to go to details. - Page 18 Factory reset will erase all your settings and bring it back to default. After the factory reset, your device will still in your Yolink account. Hold the set button of controller for 20-25 seconds until the LED blinks red and green alternately.
-
Page 19: Specifications
Specifications Voltage: 3V DC (2 - AA battery) Environment: Working Temperature: 0°C~40°C (32°F~104°F) Working Humidity: 0%~90% non-condensing... -
Page 20: Troubleshooting
Troubleshooting Problem Possible Reason Solution Please reconnect your hub to the Internet and press the set button of YoLink Finger Hub is offline. once. Please power on the hub again and press Hub is powered off. Yo L i n k F i n g e r i s... -
Page 21: Customer Service And Warranty
floods, lightning, earthquakes, etc.) This warranty is limited to repairing or replacing of this YoLink Finger only at YoSmart's sole discretion. YoSmart will NOT be liable for the cost of installing, removing, nor reinstalling this product, nor direct, indirect, or consequential damages to persons or property resulting from the use of this product. - Page 22 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 23 FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations.
