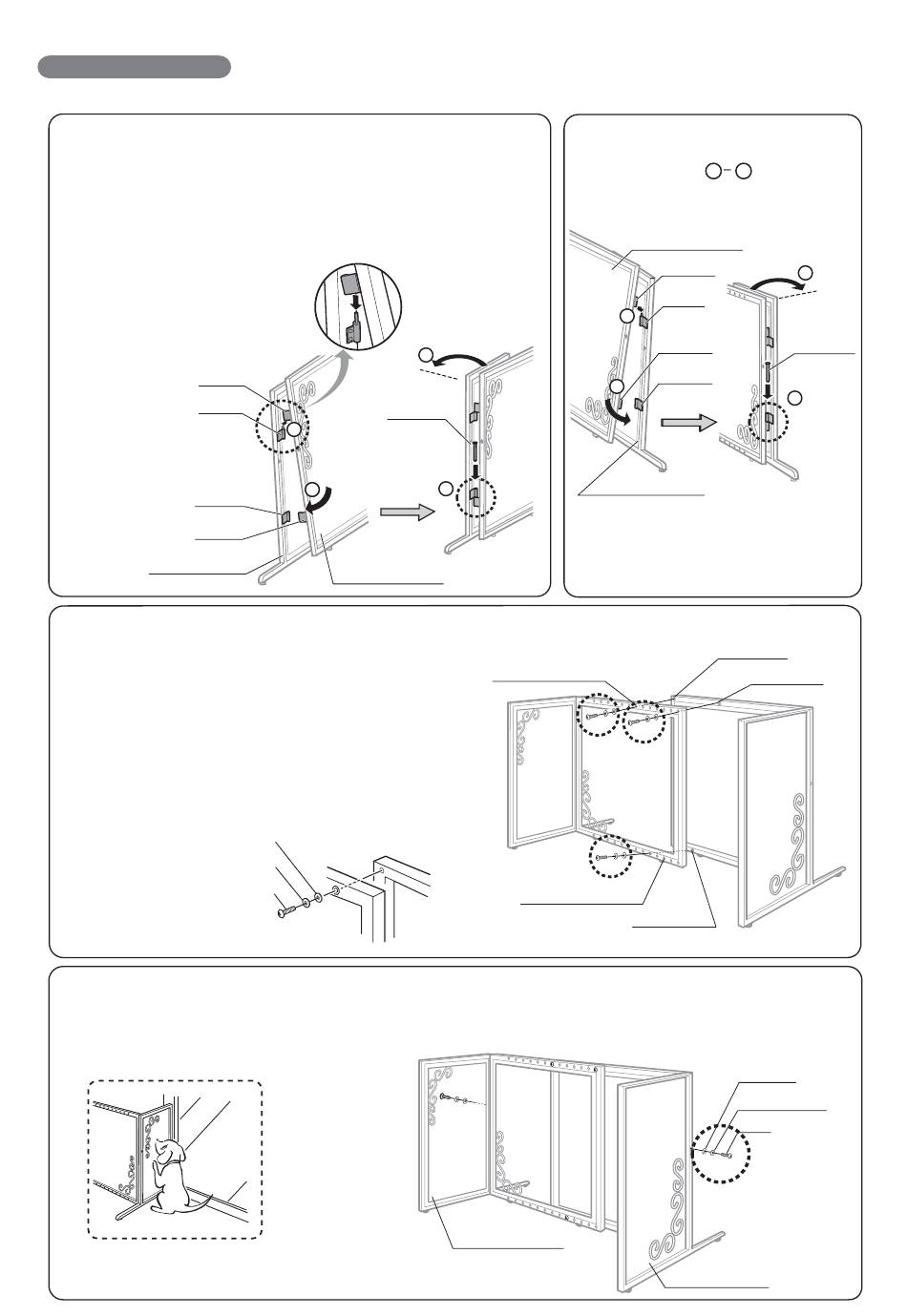

How to assemble
Use a Phillips-head or flat-head screwdriver for assembly.
1 Attach Left Side Panel to Left Front Panel
First, place Front and Side Panels
parallel to each other.
① Tilt Front Panel and insert top hinge on Front Panel
onto stem of top hinge on Side Panel as shown.
② Align bottom hinge of Front Panel with bottom
hinge of Side Panel.
③ Insert Shaft pin as shown.
④ Open Side Panel to 90 degrees.
Hinge
Stem
Hinge
Hinge
Left Side Panel
3
Attach Front Panels
The positions of Bolts depend on desired gate width.
See figures on next page.
① Align Adjustment holes and Fixing holes according
to desired width. (Width of gate an be adjusted by
intervals of 1.4" for S Size and 1.5" for L Size, )
② Insert bolts into Adjustment and Fixing holes with
washers and spring washers at top and bottom of
Panels as shown.
Washer
Spring washer
4 Secure Side Panels
Insert bolts into Side Panels to prevent closing
if necessary. Secure Side Panels in case pet
pushes Side Panel as shown.
Shaft pin
①
②
Left Front Panel
Bolt
2
④
90° 90° 90°
③
Adjustment hole
Adjustment hole
Right Side Panel
2
Attach Right Side Panel to
Right Front Panel
Repeat steps ① ④ for Left Side
Panel.
Right Front Panel
Hinge
90° 90° 90°
Stem
①
Hinge
Hinge
②
Right Side Panel
Fixing hole
Fixing hole
Fixing hole
Washer
Spring washer
Bolt
Left Side Panel
④
Shaft pin
③
