Atag VA63313RF User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Dishwasher
VA63313RF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VA63313RF and is the answer not in the manual?

Questions and answers

Related Manuals for Atag VA63313RF

Summary of Contents for Atag VA63313RF

  • Page 1 User Manual Dishwasher VA63313RF...

  • Page 2: Table Of Contents

    CONTENTS Safety information Before first use Safety instructions Daily use Product description Hints and tips Control panel Care and cleaning Programmes Troubleshooting Settings Technical information Options Subject to change without notice. SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions.

  • Page 3: Safety Instructions

    by clients in hotels, motels, bed & breakfast and other – residential type environments. Do not change the specification of this appliance. • The operating water pressure (minimum and maximum) • must be between 0.5 (0.05) / 8 (0.8) bar (MPa) Obey the maximum number of 13 place settings.
  • Page 4 • Do not use multi-plug adapters and • If the water inlet hose is damaged, extension cables. immediately close the water tap and • Make sure not to cause damage to the disconnect the mains plug from the mains plug and to the mains cable. mains socket.

  • Page 5: Product Description

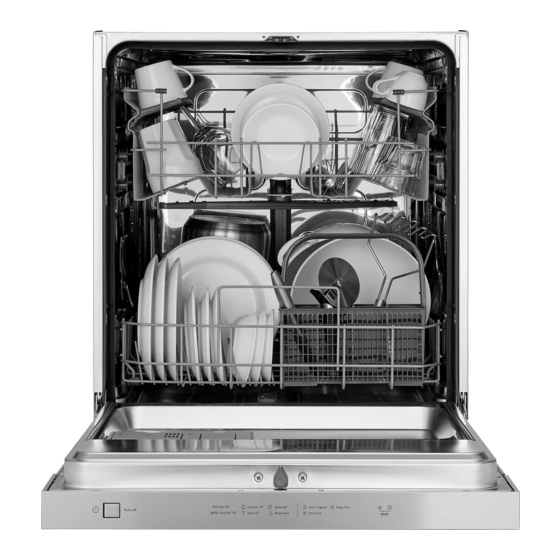

    PRODUCT DESCRIPTION Upper spray arm Rinse aid dispenser Lower spray arm Detergent dispenser Filters Cutlery basket Rating plate Lower basket Salt container Upper basket Air vent...

  • Page 6: Control Panel

    CONTROL PANEL On/off button Start button Program button Indicators Programme indicators Option button Display Delay button Indicators Indicator Description Washing phase. It comes on when the washing phase operates. Drying phase. It comes on when the drying phase operates. Extra Dry indicator. Rinse aid indicator.

  • Page 7: Programmes

    PROGRAMMES Programme Degree of soil Programme phases Options Type of load • Normal soil • Prewash • Extra Hygiene • Crockery and • Wash 50 °C • Extra Dry cutlery • Rinses • • • Prewash • Extra Hygiene • Crockery, cut‐...

  • Page 8: Settings

    Water Energy Duration Programme (kWh) (min) 13 - 14 0.9 - 1.1 70 - 85 1) The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of dishes can change the values. Information for test institutes Write down the product number (PNC) that is on the rating plate.
  • Page 9 Water hardness German de‐ French de‐ mmol/l Clarke de‐ Water softener grees (°dH) grees (°fH) grees level 47 - 50 84 - 90 8.4 - 9.0 58 - 63 43 - 46 76 - 83 7.6 - 8.3 53 - 57 37 - 42 65 - 75 6.5 - 7.5...

  • Page 10: Options

    • The indicator still flashes. CAUTION! Do not try to close • The display shows the current the appliance door within 2 setting. minutes after automatic opening. This can cause – = rinse aid empty damage to the appliance. notification activated. –...

  • Page 11: Before First Use

    Extra Dry Every time is activated, Activate this option to boost the drying Extra Dry is off and needs to be performance. With Extra Dry on, the chosen manually. duration of some programmes, water consumption and the last rinse How to activate Extra Dry temperature can be affected.

  • Page 12: Daily Use

    CAUTION! Water and salt can CAUTION! Only use rinse aid come out of the salt container specifically designed for when you fill it. After you fill the dishwashers. salt container, immediately 1. Press the release button (D) to open start a programme to prevent the lid (C).
  • Page 13 Using the detergent Starting a programme 1. Press the on/off button to activate the appliance. Make sure that the appliance is in programme selection mode. 2. Close the appliance door. 3. Press Program again and again until the indicator of the programme you want to select comes on.

  • Page 14: Hints And Tips

    Cancelling the programme If the door is opened for more than 30 seconds during the Press and hold simultaneously Program drying phase, the running and Option until the appliance is in programme ends. It does not program selection mode. happen if the door is opened by Make sure that there is detergent in the AirDry function.
  • Page 15 cleaner which is particularly suitable for • Remove larger residues of food from this purpose. the dishes into the waste bin. • Detergent tablets do not fully dissolve • Make soft the remaining burned food with short programmes. To prevent on the items.

  • Page 16: Care And Cleaning

    CARE AND CLEANING 3. Remove the flat filter (A). WARNING! Before maintenance, deactivate the appliance and disconnect the mains plug from the main socket. Dirty filters and clogged spray arms decrease the washing results. Make a check regularly 4. Wash the filters. and, if necessary, clean them.

  • Page 17: Troubleshooting

    • Only use neutral detergents. • Do not use abrasive products, abrasive cleaning pads or solvents. Internal cleaning • Carefully clean the appliance, including the rubber gasket of the door, with a soft damp cloth. • If you regularly use short duration programmes, these can leave deposits of grease and limescale inside the appliance.
  • Page 18 Problem and alarm code Possible cause and solution The program does not start. • Make sure that the appliance door is closed. • Press Start. • If the delay start is set, cancel the setting or wait for the end of the countdown. •...
  • Page 19 Problem and alarm code Possible cause and solution The appliance trips the cir‐ • The amperage is insufficient to supply simultaneously all cuit-beaker. the appliances in use. Check the socket amperage and the capacity of the meter or turn off one of the appliances in use.
  • Page 20 Problem Possible cause and solution The dishes are wet. • For the best drying performance activate the option Ex‐ tra Dry and set AirDry . • The programme does not have a drying phase or has a drying phase with low temperature. •...

  • Page 21: Technical Information

    Refer to "Before first use", "Daily use" or "Hints and tips" for other possible causes. TECHNICAL INFORMATION Dimensions Width / height / depth (mm) 596 / 818 - 898 / 575 Voltage (V) 220 - 240 Electrical connection Frequency (Hz) Water supply pressure Min.
  • Page 24 When contacting the service department, have the complete type number to hand. You will find the addresses and phone numbers of the service organisation on the guarantee card. 156919260-A-232017...
