H321-V

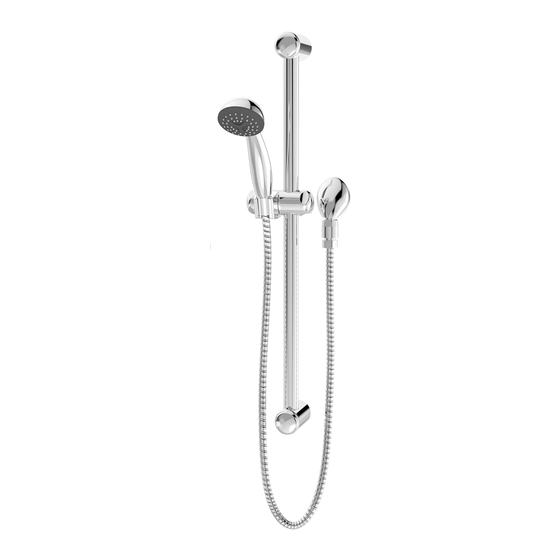

1 Mode Hand Shower Unit
Installation Guide
Model Numbers
☐
H321-V
Options/Modifications
☐
CG
-1.5
1.5 gpm (5.7 L/min) flow restrictor
☐
-2.0
2.0 gpm (7.6 L/min) flow restrictor
☐
-STN
Satin Nickel finish
Note: Append appropriate -suffix to model number.
Compliance
- ASME A112.18.1/CSA B125.1

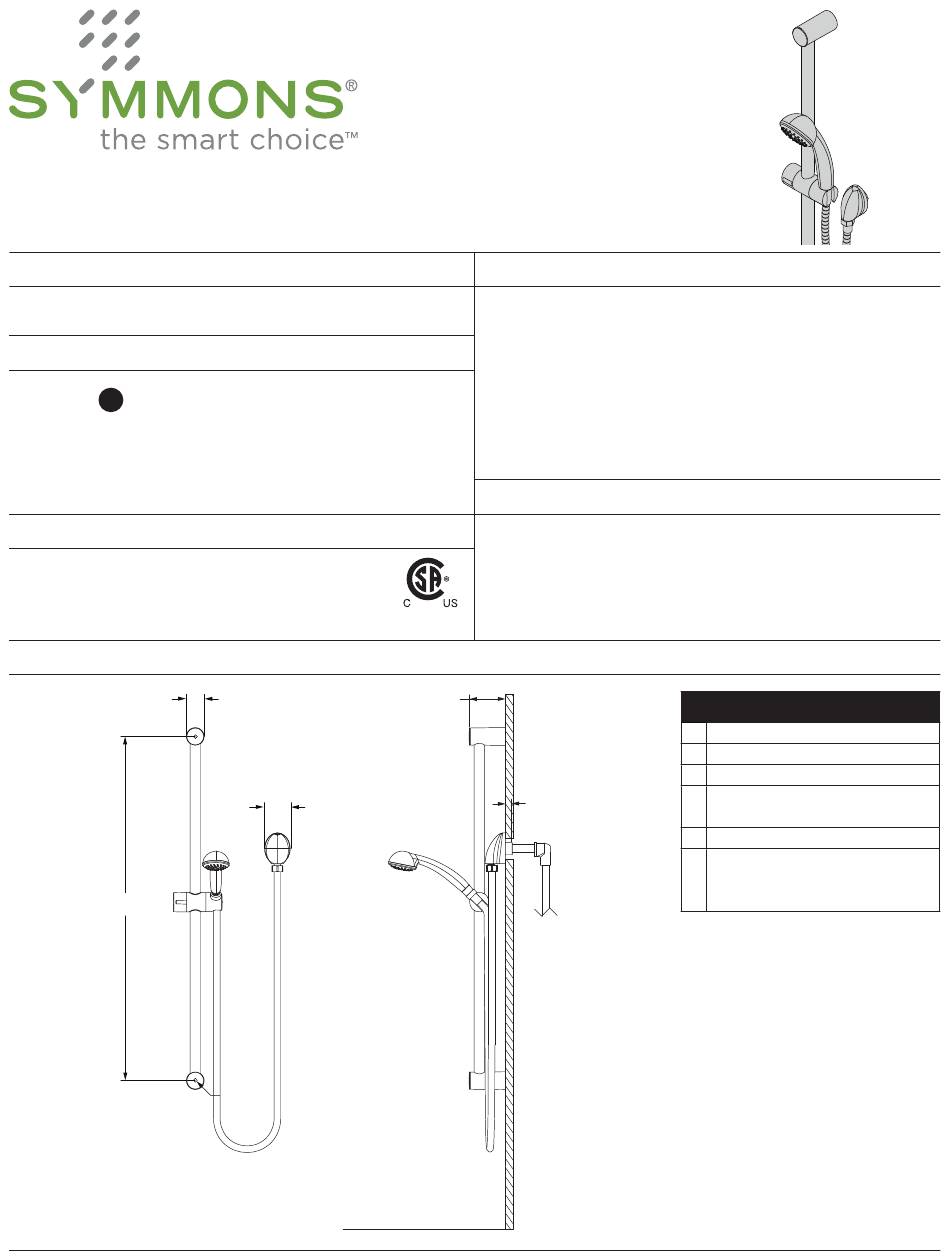

Dimensions
C
1 Mode Hand Shower Unit
A
B
D
FLOOR
FLOOR
Feature Highlights
•
1 mode hand shower
•
2-3/4" diameter hand shower head
•
Dual checks for backflow protection
•
30" slide bar with cradle for hand shower mounting
•
60" flexible metal hose
•
Standard 2.5 gpm (9.5 L/min) flow restrictor
•
Shall be metal and nonmetallic construction, plated in
standard polished chrome finish
Warranty
Limited Lifetime - to the original end purchaser in
consumer installations.
5 Years - for commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
E E
F F
Note: Dimensions subject to change without notice.
Measurements
A
Ø 1-1/2", 38 mm
B
2-1/8", 54 mm
C
28-9/16", 725 mm
(2x) Hole Size:
D
Ø 1/4", 6 mm
E
3", 76 mm
Male 1/2-14 NPT fitting must
F
be recessed 1/4" (6 mm)
from finished wall
