- Page 1 SIEB & MEYER Gateway 0362151 PROFIBUS to SERVOLINK 4 Connection D-00000009.2 2021-03-26...
- Page 2 SIEB & MEYER Asia Co. Ltd. 4 Fl, No. 532, Sec. 1 Min-Sheng N. Road Kwei-Shan Hsiang 333 Tao-Yuan Hsien Taiwan Phone: +886 3 311 5560 Fax: +886 3 322 1224 smasia@ms42.hinet.net http://www.sieb-meyer.com Gateway 0362151 - PROFIBUS to SERVOLINK 4 Connection...
-
Page 3: Table Of Contents
X6 – USB Connector....................Status Displays....................6.3.1 LED Status Display.......................22 6.3.1.1 LED Status Display for PROFIBUS................6.3.1.2 LED Status Display for Gateway and SERVOLINK 4..........6.3.2 7-segment Display......................24 6.3.2.1 Status Messages......................6.3.2.2 Error Messages......................Index..................26 Gateway 0362151 - PROFIBUS to SERVOLINK 4 Connection... -
Page 4: About This Manual
Indicates a hazardous situation which, if not avoided, may result in property damage. → Follow the instructions in this manual to avoid danger. Technical Symbols Symbol Description LED indicator: LED on LED indicator: LED off LED indicator: LED flashes Gateway 0362151 - PROFIBUS to SERVOLINK 4 Connection... -
Page 5: Abbreviations
About this Manual Abbreviations n.c. not connected safety function: Safe Torque Off voltage at the common collector Gateway 0362151 - PROFIBUS to SERVOLINK 4 Connection... -
Page 6: Safety Instructions
The standards DIN VDE 0100 and DIN VDE 0110 as well as the national accident prevention regulations shall be considered! → When installing feed-in systems adhere to all applicable regulations, special safety instructions and technical connection conditions of the local DSO. Gateway 0362151 - PROFIBUS to SERVOLINK 4 Connection... -
Page 7: Appropriate Use
SIEB & MEYER devices meet the requirements of the Low-Voltage Directive 2014/35/ EU. The harmonized standards of DIN EN 50178 and DIN EN 60204-1 in combination with the standards DIN EN 60947 and DIN EN 61800-5-1 are applied consequently. Gateway 0362151 - PROFIBUS to SERVOLINK 4 Connection... -
Page 8: Reasonably Foreseeable Misuse
Adhere to the safety instructions on the device and in the product docu- mentation. Transport and Storage Avoid improper mechanical load of the device. The following points must especially be taken into consideration: Gateway 0362151 - PROFIBUS to SERVOLINK 4 Connection... -
Page 9: Installation
The ambient air must not contain aggressive, grinding, electrically conductive or flammable substances as well as any amount of dust. ▸ The maximum relative humidity during operation is 85 % (no condensation). Gateway 0362151 - PROFIBUS to SERVOLINK 4 Connection... -
Page 10: Electrical Connection
Consider that the mains supply must be protected via an overload release with re- stricted guidance for each mains phase. The mains line should not be switched on, before the work is completed. Gateway 0362151 - PROFIBUS to SERVOLINK 4 Connection... -
Page 11: Operation
SIEB & MEYERproducts meet the requirements of the following directive: ▸ 2011/65/EU (EU-directive RoHS 2 on the restriction of the use of hazardous sub- stances in electrical and electronic equipment) Gateway 0362151 - PROFIBUS to SERVOLINK 4 Connection... -
Page 12: Legal Warranty
Due diligence of the machine manufacturer → A first programming carried out by SIEB & MEYER does not release the machine manufacturer from his duty to check the programmed values for correctness. Gateway 0362151 - PROFIBUS to SERVOLINK 4 Connection... -
Page 13: Unit Assembly Complying Emc
PDF file under www.sieb-meyer.de/downloads.html EMC Classification According to the EMC product standard DIN EN 61800-3, chapter 6 (emission of line in- terferences), this device meets the interference limit values of the second environment. Gateway 0362151 - PROFIBUS to SERVOLINK 4 Connection... -
Page 14: Gateway 0362151

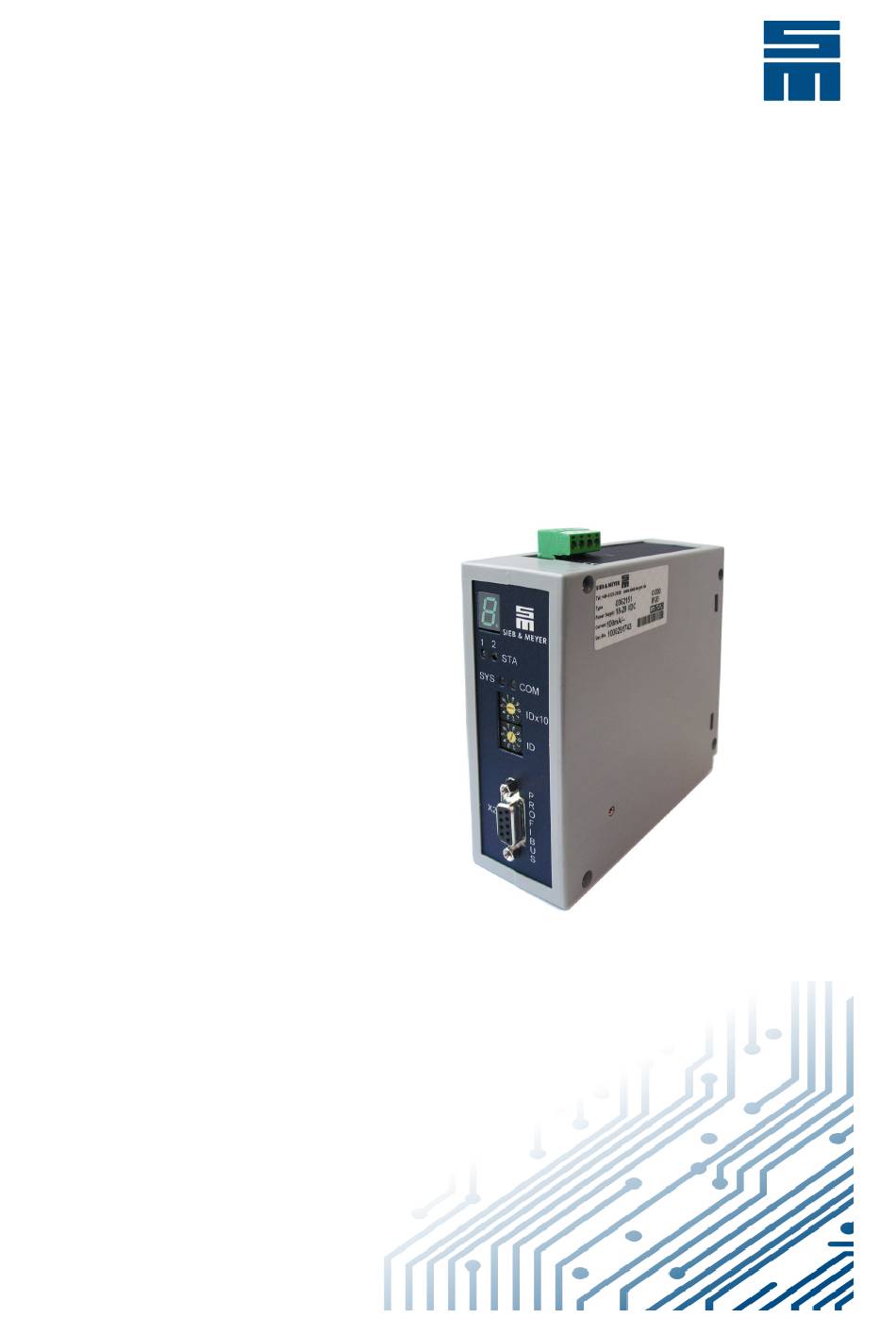

SERVOLINK 4 communication are displayed by the LEDs “STA1” and “STA2”. The module is designed to be mounted on a top hat rail. Device View Fig. 1: Perspective view of gateway 0362151 Gateway 0362151 - PROFIBUS to SERVOLINK 4 Connection... -
Page 15: Dimensions
Gateway 0362151 Dimensions Fig. 2: Dimensions of the gateway 0362151 in mm (inch) Type Plate Meaning Explanation Device designation Indicates the device type Supply voltage Indicates the maximum voltage range Current Indicates the current consumption of the device Serial number... -
Page 16: Device Designation
Power loss logic unit 2.4 W Ambient temperature range 5 °C to 60 °C at a maximum of 85 % rela- tive humidity (without moisture condensation) IP Code IP20 Weight 280 g Gateway 0362151 - PROFIBUS to SERVOLINK 4 Connection... -
Page 17: Connecting The Gateway
Gateway 0362151 Connecting the Gateway Fig. 3: Gateway 0362151 connected to PLC/IPC and SIEB & MEYER drives Up to 12 drives can be connected to the gateway. For the possible combina- tions of drives see below. Drive combinations Depending on the data width of PROFIBUS and SERVOLINK 4 as well as the telegram format you can connect the following drive combinations to one gateway at most. -
Page 18: Mounting And Demounting
Move the screw driver upward so that the latch releases the top hat rail. Then slew the device out of the top hat rail. Fig. 4: Mounting and demounting the gateway 0362151 Gateway 0362151 - PROFIBUS to SERVOLINK 4 Connection... -
Page 19: Connectors, Switches And Displays
Connectors, Switches and Displays Connectors, Switches and Displays Fig. 5: Connectors, switches and displays on the gateway 0362151 Note 7-segment display: ▸ Device version 0.000: The 7-segment display has no function. Therefore, it remains blank. ▸ Device version 1.000 and higher: The 7-segment display shows status and error messages of the gateway. -
Page 20: Connector Pin Assignment
The fiber optic connectors for SERVOLINK 4 are located at the bottom side of the de- vice. Connector SIEB & MEYER article number 12540102 Inputs (black) 12540103 12540202 Outputs (gray or white) 12540203 Cable connector 32022900 (TOSLINK F05) Gateway 0362151 - PROFIBUS to SERVOLINK 4 Connection... -
Page 21: Preparation Of Optical Fiber Cables With Connector
Insert the connector with the optical fiber cable into a polishing disk and grind the outstanding end of the fiber by means of a polishing sheet on an even surface (e.g. glass sheet), see figure, [4]). Remove grinding residues. Gateway 0362151 - PROFIBUS to SERVOLINK 4 Connection... -
Page 22: X5 - Jtag Connector
The status of the gateway is indicated by the status LEDs and the 7-segment display on the front panel. 6.3.1 LED Status Display The status of the gateway is indicated by 4 LEDs at the front panel. Gateway 0362151 - PROFIBUS to SERVOLINK 4 Connection... -
Page 23: Led Status Display For Profibus
No communication with the Establish the connection to the green fieldbus. fieldbus. Green Flashes The parameters of the fieldbus None are loaded. Green Data exchange None Internal error Send the gateway to SIEB & MEYER. Gateway 0362151 - PROFIBUS to SERVOLINK 4 Connection... -
Page 24: 7-Segment Display
Hilscher COM module: Cold boot was not executed. Check fieldbus connection. Check the PLC software. E.13. Hilscher COM module No "ready" signal after warm Check fieldbus connection. boot Check the PLC software. Gateway 0362151 - PROFIBUS to SERVOLINK 4 Connection... - Page 25 Check fieldbus connection. work Check the PLC software. E.19. Hilscher COM module: Module runs, but communi- Check fieldbus connection. cation with internal dual-port memory cannot be es- Check the PLC software. tablished. Gateway 0362151 - PROFIBUS to SERVOLINK 4 Connection...
-
Page 26: Index
ID switch PROFIBUS LED display gateway (STA1) PROFIBUS (SYS, COM) SERVOLINK 4 (STA2) Mounting Optical fiber cables connection preparation of optical fiber cables with connector PROFIBUS connection 17, Residual current device (RCD) Gateway 0362151 - PROFIBUS to SERVOLINK 4 Connection...
