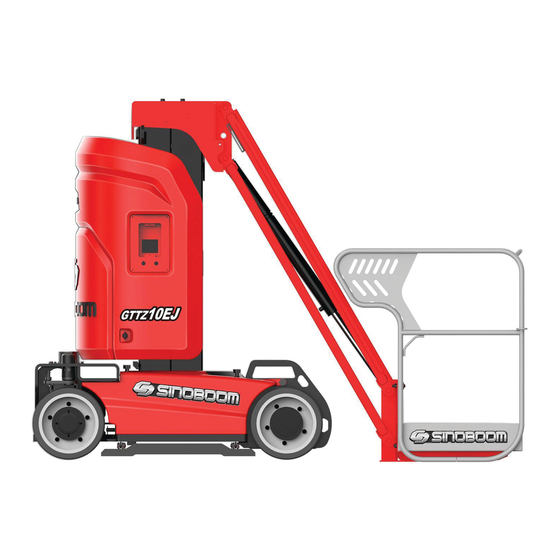

GTTZ09EJ&GTTZ10EJ Operation M anual
Operation Manual
GTTZ09EJ&GTTZ10EJ
© Copyright by Hunan Sinoboom Intelligent Equipment Co.,Ltd.
The second edition: December 2019
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTTZ09EJ and is the answer not in the manual?

Questions and answers

Summary of Contents for Sinoboom GTTZ09EJ

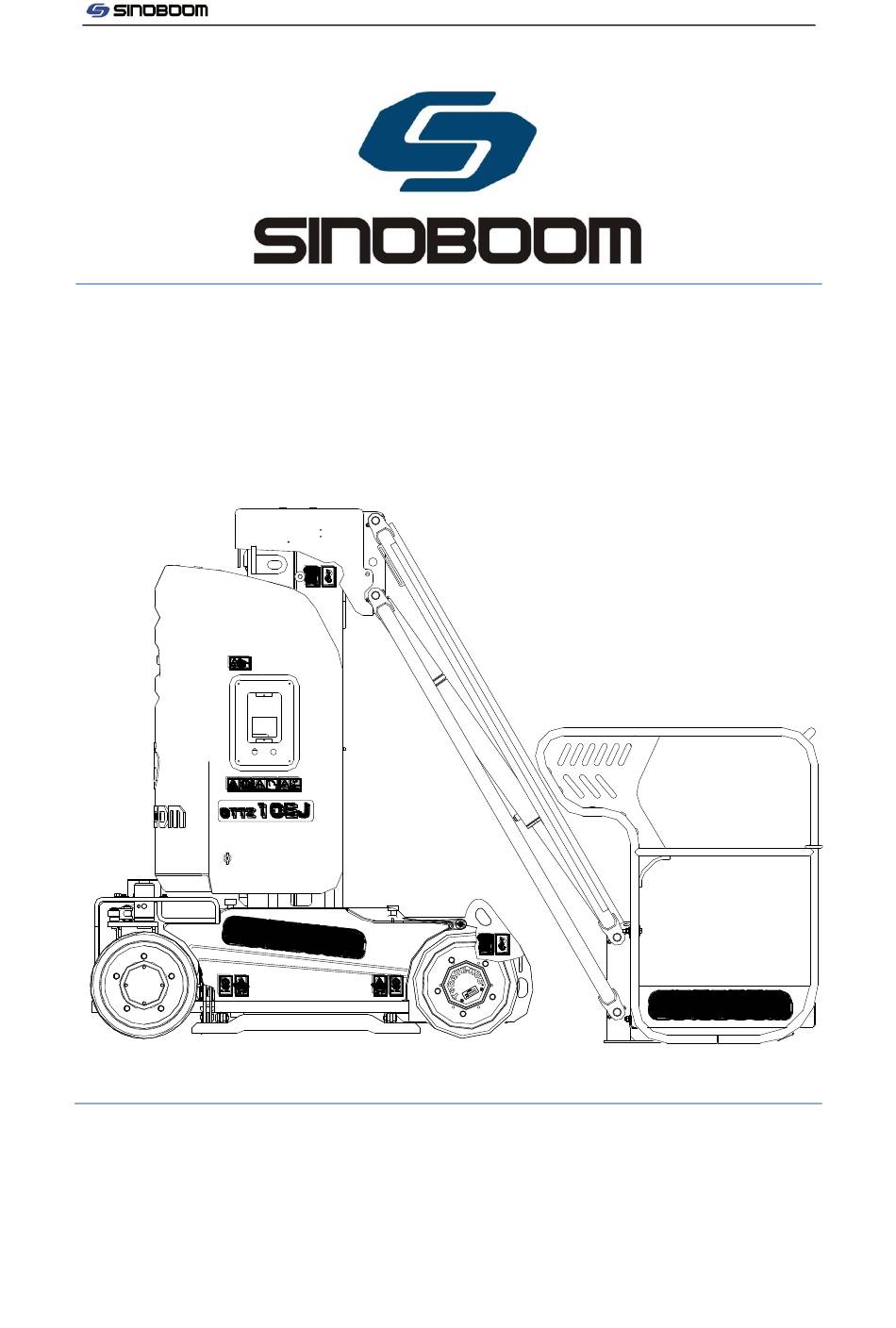

  • Page 1 GTTZ09EJ&GTTZ10EJ Operation M anual Operation Manual GTTZ09EJ&GTTZ10EJ © Copyright by Hunan Sinoboom Intelligent Equipment Co.,Ltd. The second edition: December 2019...
  • Page 2: Table Of Contents

    GTTZ09EJ&GTTZ10EJ Operation M anual Key Points Before operating the machine, you should read, understand and follow these safety rules and operating instructions. Only the trained and authorized personnel are allowed to operate the machine. You should regard this M anual as part of the machine and always keep it with the machine.
  • Page 3 Website: www.sinoboom.com E-mail: info@sinoboom.com.cn Service Tel: 400-608-1289/0731-87116333 Fax: 0086-0731-87116516-16 Address: No.128, East Jinzhou Avenue, Ningxiang High-tech Industrial Park, Changsha, Hunan,China Zip code: 410600 Trainslation V ersion Hunan SINOBOOM Intelligent Equipment Co., Ltd. All Rights Reserved The second edition: December 2019...
  • Page 4: Product Performance Parameters

    GTTZ09EJ&GTTZ10EJ Operation M anual Product Performance Parameters Model GTTZ09EJ GTTZ10EJ Dimensions Metric System Metric System M aximum platform height 8.3m 10.3m M aximum working height M aximum horizontal extension 3.3m 3.3m Rotation of turntable 345° 345° Length- in retracted state 2.77m...
  • Page 5 GTTZ09EJ&GTTZ10EJ Operation M anual 24V DC ,3 kW 24V DC ,3 kW Power unit Control voltage 24 VDC 24 VDC Driving mode 2WD, rear wheel 2WD, rear wheel Input voltage of charger 85~265V AC 85~265V AC Output current of charger...
  • Page 6: Descriptions Of Whole Vehicle

    GTTZ09EJ&GTTZ10EJ Operation M anual Descriptions of Whole Vehicle GTTZ09EJ&GTTZ10EJ 1 Steer tire 8 Platform controller 2 Emergency lowering controller (Located on the side of the chassis) 9 Platform 3 Ground controller 10 Platform guardrail rail 4 Storage battery 11 Lanyard fixation point...
  • Page 7: Safety Rules

    GTTZ09EJ&GTTZ10EJ Operation M anual Safety warning mark - It is used to Safety Rules prompt potential personal injuries. Observe all safety prompts behind this mark for the purpose of avoiding personal injuries or death. Red mark- It is used to prompt the urgent hazardous cases;...
  • Page 8: Hazard Of Tip-Over

    GTTZ09EJ&GTTZ10EJ Operation M anual 350 kV-500 kV 7.62 m Lower the platform and transfer the machine to a solid and horizontal ground surface. Be careful to firstly lower the main jib and then 500 kV-750 kV 10.67 m lower the fly jib if the tilt alarm rings when the platform is raised.
  • Page 9: Hazard Of Slope Operation

    GTTZ09EJ&GTTZ10EJ Operation M anual platform weight and surface area or increase the exceeds the maximum upslope and downslope load. ratings of the machine. The slope rating is only applicable to the machine in the retracted Do not place or attach any suspended load on position.
  • Page 10: Hazard Of Collision

    GTTZ09EJ&GTTZ10EJ Operation M anual Hazard of Collision Hazard of Damaged Parts Pay attention to the range of Do not use any storage battery or charger larger sight and the existence of than 24V to start the equipment. blind spots when...
  • Page 11: Lock After Each Usage

    GTTZ09EJ&GTTZ10EJ Operation M anual overhauling only pre-operational examination. The covering parts must remain Hazard of Explosion closed and locked during operation. A spark, flame or lighted cigarette is prohibited near the storage battery as it can produce explosive gas. Lock after Each Usage...
  • Page 12: Pre-Operational Inspection

    GTTZ09EJ&GTTZ10EJ Operation M anual as balance weight, which is vital to the machine specified in this M anual. stability. The weight of each storage battery Please refer to the list of machine and parts. must reach 33kg. Check for any changed, damaged, loosened or missed parts in each item and location.
  • Page 13: Inspection On Parts

    GTTZ09EJ&GTTZ10EJ Operation M anual  Check whether the storage battery liquid tightened. leaks and liquid level is suitable. Please  After inspection completion, make sure all add distilled water as needed. Please refer the covering parts are properly positioned to "Operation Instructions".
  • Page 14: Inspection On Storage Battery

    GTTZ09EJ&GTTZ10EJ Operation M anual M anual. Inspection on Storage battery 1 Avoid dangerous situations. 2 Always perform the pre-operational inspection. Warning: Hazard of electric shock; contact with 3 Always perform pre-usage functional electrical circuits can cause death or serious tests.
  • Page 15: Ground Controller

    GTTZ09EJ&GTTZ10EJ Operation M anual Test Main Jib Lifting/Lowering Functions Ground Controller Press the main jib lifting mode button, and then press the enabling button and the lifting control button at the same time.  Result: The main jib lifts. Press the enabling button and the lowering control button at the same time.
  • Page 16: Platform Controller

    GTTZ09EJ&GTTZ10EJ Operation M anual Test Emergency Stop Platform Controller Turn the lower platform selection switch to Left turn the platform control mode. Press the “emergency stop” switch on the Forward/backward platform to the OFF position. Right turn  Result: The display screen is not ON and all functions will not run.
  • Page 17: Test Fly Jib Lifting/Lowering Functions

    GTTZ09EJ&GTTZ10EJ Operation M anual   Result: The turntable turns left. Result: machine should move backward and then stop. 2. Press the enabling button and the right turning control button at the same time. Attention: The brake must be able to climb at any gradient and the brake must be able to stop ...
  • Page 18: Test Level Sensor

    GTTZ09EJ&GTTZ10EJ Operation M anual Test Level S ensor plate to expand. Push the left/right pit-hole protection Attention: Use platform operation box control plates. equipment on the ground and do not stand on the  platform to operate. Results: The pit-hole protection plates cannot turn upwards.
  • Page 19 GTTZ09EJ&GTTZ10EJ Operation M anual Learn and understand the above rules situations: before continuing the next step.  Steep hill or cave 5 Use the machine only according to the  Prominence, ground obstacles or debris machine design intention.  Inclined surface ...
  • Page 20: Operating Instructions

    GTTZ09EJ&GTTZ10EJ Operation M anual Operating Instructions Emergency Shutdown Press the red "emergency stop" button on the ground controller or platform controller to the OFF position and all the functions will stop. The machine has a red "power off switch" button located on the covering parts. Press the button to the OFF position, the system is power off and all the functions will stop.
  • Page 21: Storage Battery Energy Indicator Lamp

    GTTZ09EJ&GTTZ10EJ Operation M anual pump 2. Push the joystick several times from top to bottom meanwhile manually Must be charged turn the knob at the end of rotary valve. 3. Hand pump + S1= Turntable turns left Too low storage...
  • Page 22: Transportation And Hoisting Instructions

    GTTZ09EJ&GTTZ10EJ Operation M anual 1. Braking cover 2. End cap bolt Transportation Hoisting Instructions 3. Separating hole 2、 Ensure that the drive chassis is fastened and there are no obstacles on the channel. 3、 M ake sure the battery circuit breaker is pressed to "off"...
  • Page 23 GTTZ09EJ&GTTZ10EJ Operation M anual Hoisting Guidance Fully lower the boom and platform. Remove all the loosened parts from the machine. Attention: Please choose the proper length of qualified slings. M ake sure the crane hoisting capacity, loading face, belt or rope sufficient enough to support the machine weight.
  • Page 24: Labeling Instructions

    The following is a list of labels with quantity positioned. Replace any missed or damaged and description. safety signs. Use neutral soap and clean water to clean the safety signs. GTTZ09EJ&GTTZ10EJ Safety critical spare parts list Code Name Quantity Remark...
  • Page 25 GTTZ09EJ&GTTZ10EJ Operation M anual Beware of electric shocks. Use a charging plug 109002100008 in good working condition 103003100010 LOGO-The box-the rear 109002100014 Main arm emergency descent 104011100010 The hydraulic fluid level(hight) 104011100003 The hydraulic fluid level(low) 101040103008 Break release 101058103001...
  • Page 26 GTTZ09EJ&GTTZ10EJ Operation M anual 101014100020 101014100020...
  • Page 27 GTTZ09EJ&GTTZ10EJ Operation M anual...
  • Page 28 GTTZ09EJ&GTTZ10EJ Operation M anual...
