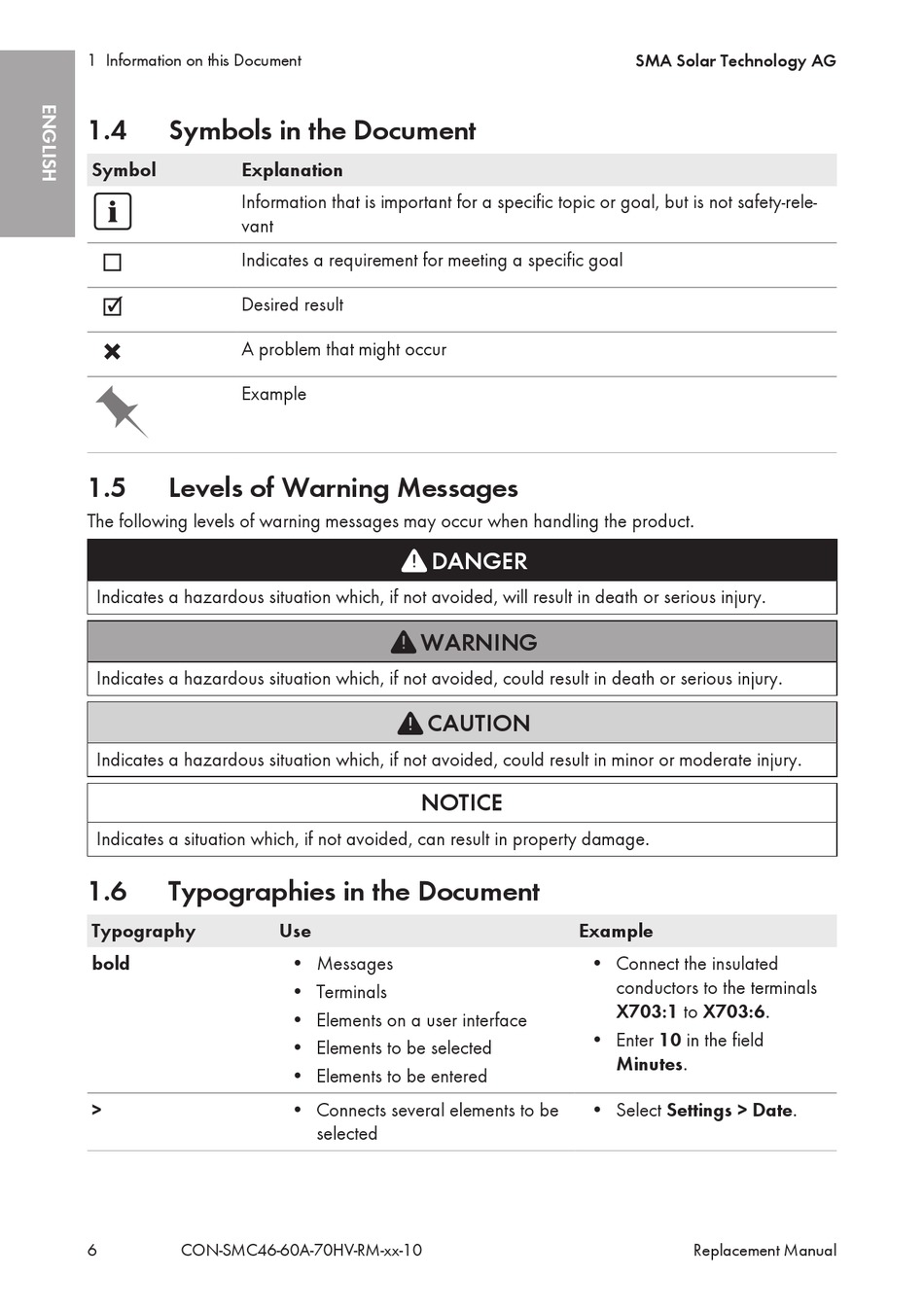

Symbols In The Document; Levels Of Warning Messages; Typographies In The Document - SMA NR-SMC-CON Replacement Manual

1 Information on this Document
1.4

Symbols in the Document

Symbol Explanation
Information that is important for a specific topic or goal, but is not safety-rele-
vant
Indicates a requirement for meeting a specific goal
☐
Desired result
☑
A problem that might occur
✖
Example
1.5

Levels of Warning Messages

The following levels of warning messages may occur when handling the product.
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
Indicates a situation which, if not avoided, can result in property damage.
1.6

Typographies in the Document

Typography
bold
>
6 CON-SMC46-60A-70HV-RM-xx-10
DANGER
WARNING
CAUTION
NOTICE
Use
• Messages
• Terminals
• Elements on a user interface
• Elements to be selected
• Elements to be entered
• Connects several elements to be
selected
SMA Solar Technology AG
Example
• Connect the insulated
conductors to the terminals
X703:1 to X703:6.
• Enter 10 in the field
Minutes.
• Select Settings > Date.
Replacement Manual
