338571_2001_silv_Multifunktionsthermometer_Content_IE_NI_DK_BE_NL.indd 5
List of pictograms used ..................................... Page
Introduction ........................................................... Page
Intended use .......................................................... Page
Parts description..................................................... Page 10
Scope of delivery ................................................... Page 11
Technical data ....................................................... Page 11
Safety notes ........................................................... Page 14
Safety instructions for batteries ............................. Page 17
Initial use ................................................................. Page 18
Inserting / Replacing batteries ............................... Page 19
Changing basic settings .................................... Page 20
Activating / deactivating the key tone ........ Page 22
Taking a measurement ..................................... Page 24
Measuring body temperature from the ear ......... Page 27
Measuring object temperatures ............................ Page 30
Displaying saved measured values ...................... Page 32
Transferring measured values ....................... Page 33
Cleaning and care ............................................... Page 36
Storage .................................................................... Page 37
Troubleshooting ................................................... Page 38
Disposal ................................................................... Page 39
Warranty / Service .............................................. Page 40
®
6
8
8
GB/IE/NI
5
26.05.20 10:55
26.05.20 10:55
Advertisement
Table of Contents
Related Manuals for Silvercrest SFT 81
Summary of Contents for Silvercrest SFT 81
-
Page 1: Table Of Contents
List of pictograms used ........Page Introduction ............Page Intended use ............Page Parts description............. Page 10 Scope of delivery ........... Page 11 Technical data ............Page 11 Safety notes ............Page 14 Safety instructions for batteries ......Page 17 Initial use .............. - Page 2 List of pictograms used Warning of risks of injury or health hazards Safety note related to possible damage to the device / components Safety notes Instructions Observe instructions for use Storage & Transport Permissible storage and transport temperature and humidity Operating Permissible operating temperature and humidity...
- Page 3 List of pictograms used Improper disposal of batteries can harm the environment! Protected against solid foreign objects, 12.5 mm in diameter and larger and IP22 against dripping water if the housing is inclined by up to 15 °. Dispose of the packaging and the multi- function thermometer in an environmentally friendly manner! Data transfer via Bluetooth...
-
Page 4: Introduction
Multifunctional thermometer Introduction Please make yourself familiar with the mul- ti-function thermometer before preparing it for use or using it for the first time. Please carefully read the following instructions for use and the important safety notes. Failure to observe the notes may result in personal injury or property dam- age. - Page 5 dangerous! The manufacturer is not liable for damage caused by improper or incorrect use. The device meets the requirements of the Medical Devices Directive 93/42/EEC, the Medical Devices Act, ASTM E 1965 - 98, the European standard EN 12470-5: Clinical Thermometers – Part 5: Perfor- mance of infrared ear thermometers (with maximum device) and the European standard EN 60601-1-2 (in accordance with CISPR 11, IEC 61000-4-2, IEC...
-
Page 6: Parts Description

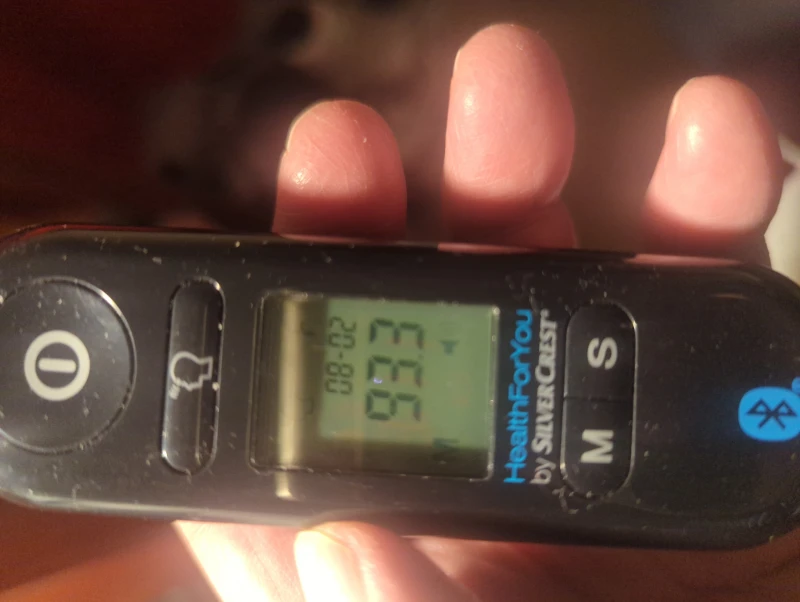

Parts description Sensor tip Forehead / cover cap Battery compartment cover Lens MEASURE button (forehead measurement) S button (settings) M button (memory) ON / OFF / MEASURE button (ear and object measurement) LED status indicator (temperature indicator) Display indicators Measurement unit Celsius / Fahrenheit Date / time display Hour mode (AM / PM) Temperature value... -
Page 7: Scope Of Delivery
2 Batteries 1.5 V type AAA, LR03 1 Forehead / cover cap 1 Set of instructions for use 1 Quick start guide Technical data Model: SFT 81 Type: TS 53 Measurement range: Ear/forehead thermometer mode: 34.0 °C–43.0 °C (93.2 °F–109.4 °F) object temperature mode: 0.0 °C–... - Page 8 ± 0.3 °C (± 0.5 °F), object temperature mode: ±2.0 °C (± 4.0°F) at < 30,0 °C (86.0 °F); ±5 % (in 3 cm) at ≥ 30.0 °C (86.0 °F) Time interval between two measurements: At least 5 seconds Clinical repeatability: Ear: Children, 1– 5 years: ±0.08 °C (±0.14 °F), Adults: ±0.07 °C (±0.13 °F), Forehead: Children, 1–...
- Page 9 Battery: 2 x 1.5 V AAA (LR03) Battery life span: approx. 3000 measurements Memory: 30 measurements Expected operating life: 3 years System requirements for “HealthForYou“ web version: - MS Internet Explorer - MS Edge - Mozilla Firefox - Google Chrome - Apple Safari (in the respective updated version)
-
Page 10: Safety Notes
Technical specifications subject to change without no- tice due to updates. Safety notes This device is not intended to be used by persons (including children) with limited phys- ical, sensory or mental abilities or lacking experience and/or knowledge unless supervised or instructed on its use by an person responsible for their safety. - Page 11 The thermometer is NOT watertight. For this rea- son you should never allow the product to come into contact with water or other liquids. The SFT 81 multi-function thermometer is only designed for use in the measuring point stated in the instructions for use.
- Page 12 Information on electromagnetic compatibility The device is suitable for use in all environments that are listed in these instructions for use, includ- ing in the home. In the presence of electromagnetic disturbances, the device may under some circumstances only be useable to a limited extent. This can result in error messages or the breakdown of the display / device, for example.
-
Page 13: Safety Instructions For Batteries
Safety instructions for batteries DANGER TO LIFE! Keep batteries out of reach of children. If accidentally swallowed seek imme- diate medical attention. Ingestion may cause burns, perforation of soft tissue and death. Severe burns may occur within 2 hours of swallowing batteries. DANGER OF EXPLOSION! Never recharge non-rechargeable batteries. -
Page 14: Initial Use
Wear suitable protective gloves at all times if such an event occurs. In the event of a leakage of batteries, immedi- ately remove them from the product to prevent damage. Only use the same type of batteries. Do not mix used and new batteries. -
Page 15: Inserting / Replacing Batteries
Inserting / Replacing batteries Before replacing the battery, ensure that the device has been switched off. When the batteries become weak, the battery warning symbol will appear on the display . Temperature measurements will still be possible but the batteries will have to be replaced as soon as possible. -
Page 16: Changing Basic Settings
Changing basic settings You can configure the following basic settings for the multi-function thermometer: temperature unit (Celsius / Fahrenheit), date, time and Bluetooth ® To switch on the device press the ON / OFF / MEASURE button Press the S button for five seconds. - Page 17 The month display will flash on the display. Using the S button select the current month. Confirm by pressing the M button The day display will flash on the display. Using the S button select the current day. Confirm by pressing the M button Note: If the 12-hour time format has been con- figured, the positions for the month and day will...
-
Page 18: Activating / Deactivating The Key Tone
Bluetooth will flash ® on the display. Activate or deactivate Bluetooth ® using the S button (ON will appear on the display for activation, OFF will appear on the display for deactivation). Confirm by pressing the M button The device will save the basic settings and switch off automatically. -
Page 19: What You Should Know Before Taking A Measurement
What you should know before taking a measurement There are different thermometers to measure different parts of the body: - Ear/forehead thermometer (this thermometer is for measuring in the ear or on the forehead area) - Rod thermometer (for rectal [in the anus], axial [un- der the armpit] or oral measurement [in the mouth]) Note: The temperature measurement yields a meas- urement value which provides information on an... -
Page 20: Taking A Measurement
occur more readily and more frequently due to growth spurts, for example), clothing, external temperature, time of day (body temperature is lower in the morning and increases throughout the day and in the evening), physical, and to a limited extent, mental activity. The temperature value varies depending on the part of the body it is being measured from. -
Page 21: Measuring Body Temperature From The Forehead
Ensure before every measurement that the device is in the mode which you want to use to take a measurement. Forehead Object Key tone Mode activated Display Measuring body temperature from the forehead Note: Please note that the forehead / temples must be free from sweat and cosmetics, and that taking va- soconstrictive medication and skin irritation can falsify the measurement result for the forehead measurement. - Page 22 Then release the MEASURE button The measured value appears on the display and the end of the measuring process is indicated by a short beep (when the key tone is activated). When the meas- urement type symbol stops flashing, the next measurement can be taken.
-
Page 23: Measuring Body Temperature From The Ear
Clean the device after every use as described in the chapter “Cleaning and care“. Measuring body temperature from the ear There are people who present different measured values in their left and right ear. To factor in tem- perature changes, always measure the same ear for the same person. - Page 24 cleaned and wiped with antiseptic. Contact your physician on a case-by-case basis. If you have been lying on your ear for an extended period of time, your temperature will increase slightly. Wait for a few minutes or measure the other ear. Earwax can have an effect on the measurement.
- Page 25 Positioning infants under twelve months of age: Place the infant on their side so that one ear faces upwards. Gently pull the ear back before carefully inserting the sensor tip into the ear. Positioning infants over twelve months of age: Stand slightly to the side behind the infant.
-
Page 26: Measuring Object Temperatures
If the measured value lies within the normal range (<38°C / 100.4°F), the LED above the display will light up green for 3 seconds. If the measured value is higher than this (≥ 38°C/100.4°F = fever), the LED will light up red. If you have activated Bluetooth data transfer, the ®... - Page 27 Point the sensor tip 3 cm towards the object or the liquid to be meas- ured (never immerse in liquids!) at a distance of 3 cm and press the ON / OFF / MEASURE button for 1 second. Release the ON / OFF / MEASURE button...
-
Page 28: Displaying Saved Measured Values
The device will switch off automatically after 60 seconds (if no Bluetooth connection is available) ® or press the ON / OFF / MEASURE button for 5 seconds to switch it off. Please note that the displayed temperature is the temperature which has been determined and is not the adjusted surface temperature. -
Page 29: Transferring Measured Values
process as described in the chapter “Transferring measured values“. To change between individual saved measured values, press the M button The device will switch off automatically after 60 seconds (if no Bluetooth connection is available) ® or press the ON / OFF / MEASURE button for 5 seconds to switch it off. - Page 30 “Changing basic settings“). Step 2: “HealthForYou“ App Start the “HealthForYou“ app and follow the instructions. Select the SFT 81 in the settings menu of the app and connect the device. A randomly generated six digit PIN code will be displayed on the thermometer when connecting for the first time.
-
Page 31: Restoring The Device To Its Factory Settings
Step 4: SFT 81 Step 4: SFT 81 Automatic transfer Transferring the data at a later point in time: of data directly after Go to memory recall mode (“Display saved a measurement: measured values“). Bluetooth transfer be- ® The app must be gins automatically. -
Page 32: Cleaning And Care
Press the ON / OFF / MEASURE button Keep it pressed down for 10 seconds whilst you insert the batteries back into the device. Release the ON / OFF / MEASURE button again once DEL ap- pears in the display. Remove the batteries again. -
Page 33: Storage
To clean the entire device, use a soft cloth which has been dampened slightly with a soap solution. Do not use harsh cleaning agents Storage Always store the thermometer with the forehead / cover cap attached. If you intend to store the device for an extended period, please remove the batteries. -
Page 34: Troubleshooting
Troubleshooting Error message Cause Solution The temperature deter- Only use the ther- mined is higher than mometer within the 1) Ear/forehead ther- temperature ranges mometer mode: stated. If necessary, 43 °C (109.4 °F), clean the sensor tip. 2) Object temperature If the same error mode: 100 °C message pops up... -
Page 35: Disposal
Error message Cause Solution The thermometer could Insert new batteries not carry out the meas- into the thermometer. urement as the batteries are almost empty. Disposal Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials. -
Page 36: Warranty / Service
Per Directive 2006/66/EC and its amendments, de- fective or used batteries must be recycled. Return the batteries and / or the product to a collection site. Improper disposal of batteries can harm the environment! Pb Cd Hg Never dispose of batteries in your household bin. They may contain toxic heavy metals and are subject to hazardous waste regulations. - Page 37 for any warranty claims within the warranty period to be honoured The warranty claim must be filed with Hans Dinslage GmbH, Uttenweiler, Germany, within 3 years from the date of purchase. In the event of a complaint, please contact our Service Department listed below: Service Hotline (free of charge): 0800 93 10 319 (Mon–Fri: 8 am–6 pm) service-uk@sanitas-online.de...
- Page 38 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
